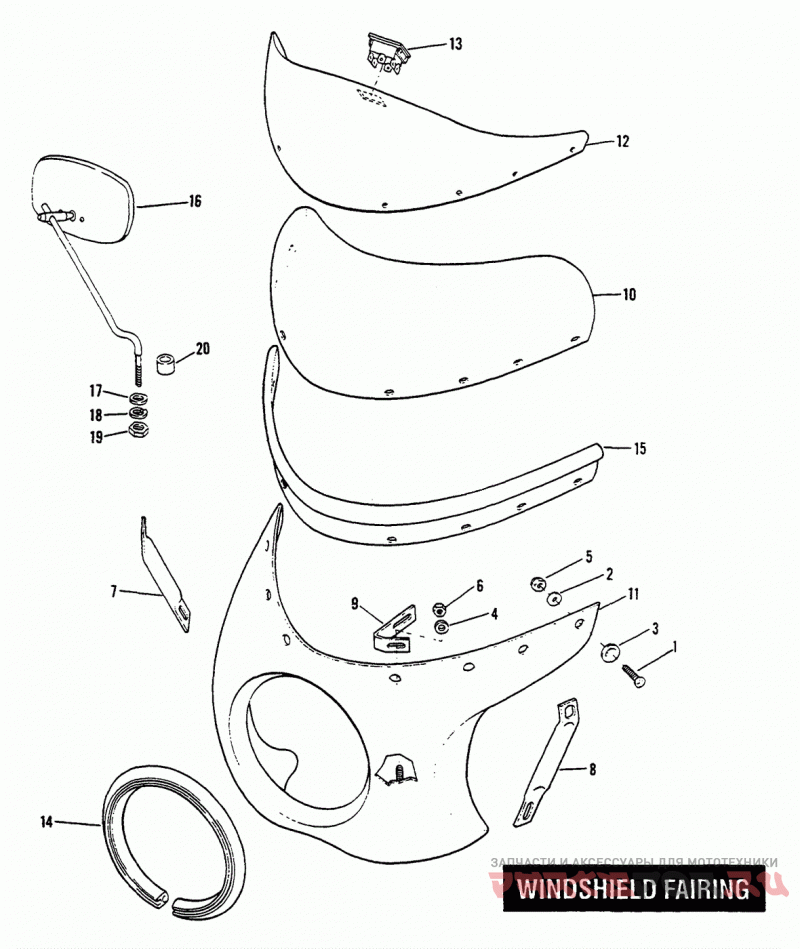

WINDSHIELD FAIRING

Harley Davidson XLCR-1000 7FH7 Sportster 1000 (1977) (Cafe Racer)

Harley Davidson
#oem кодцена
1
2335
Деталь SCREW | 77 to * - XLCR
2
6192
Деталь WASHER, No. 8 X 7/16 X 3/64 | 77 to * - XLCR
3
6221
Деталь WASHER, 3/16 x 9/16 x 1/64 (ctsk.) | 17 to * - XLCR
4
6703
Деталь WASHER, 1/4 X 5/8 X 1 /16 | 77 to * - XLCR
5
7609W
Деталь LOCKNUT, No. 8-32 x 3/16 x 3/8 hex. | 77 to * - XLCR
6
7686
Деталь LOCKNUT, 1/4-20 X 5/16 X 7/16 hex. | 77 to * - XLCR
6
7036
Деталь LOCKWASHER, 1/4 | 77 to * - XLCR
6
7688
Деталь NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel) | 77 to * - XLCR
7
58155-77
Деталь BRACKET, fairing - right | 77 to * - XLCR
8
58156-77
Деталь BRACKET, fairing - left | 77 to * - XLCR
9
58159-77
Деталь BRACKET, fairing | 77 to * - XLCR
10
58326-77
Деталь WINDSHIELD | 77 to * - XLCR
11
58327-77
Деталь FAIRING | 77 to * - XLCR
12
58328-77
Деталь INSTRUMENT PANEL | 77 to * - XLCR
13
58329-77
Деталь INDICATOR LAMP CLUSTER | 77 to * - XLCR
14
58332-77
Деталь SEAL STRIP, headlamp to fairing | 77 to * - XLCR
15
58331-77
Деталь SEAL STRIP, windshield to fairing | 77 to * - XLCR
16
91884-77
Деталь MIRROR KIT - Includes besides mirror: | 77 to * - XLCR
17
6016
Деталь WASHER, 11/32 X 11/16 X 1/16
18
7041
Деталь LOCKWASHER, 5/16
19
7753
Деталь NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
58325-77
Деталь WINDSHIELD AND FAIRING ASSEMBLY | 77 to * - XLCR
