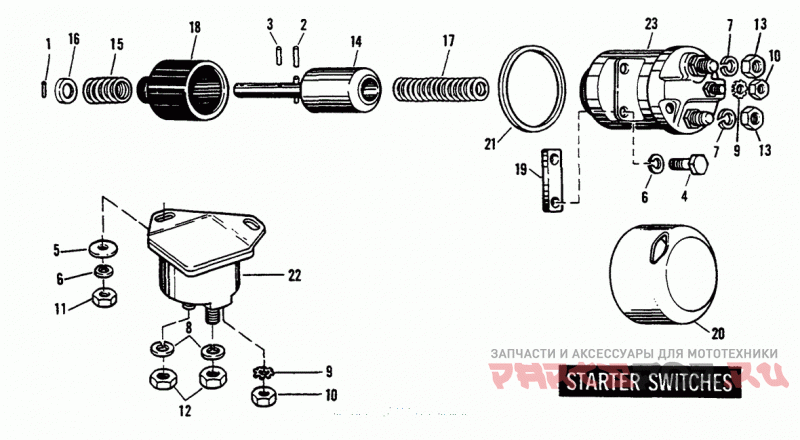

STARTER SWITCHES

Harley Davidson XLCR-1000 7FH7 Sportster 1000 (1977) (Cafe Racer)

Harley Davidson
#oem кодцена
1
256
ROLL PIN, 7/64 dia. x 1/2 lg. | 77 to * - XLCR
2
600
ROLL PIN, 1/8 dia. x 1/2 lg. | 77 to * - XLCR
3
601
ROLL PIN, 1/8 dia. x 3/4 lg. (Replaced by 614) | 77 to * - XLCR
3
614
ROLL PIN, 1/8 dia. x 3/4 lg. | 77 to * - XLCR
4
3802W
BOLT, 1/4-20 X 7/8 hex. hd. (Grade 5 steel) | 77 to * - XLCR
5
6703
WASHER, 1/4 X 5/8 X 1 /16 | 77 to * - XLCR
6
7036
LOCKWASHER, 1/4 | 77 to * - XLCR
7
7038
LOCKWASHER, 3/8 | 77 to * - XLCR
8
7041
LOCKWASHER, 5/16 | 77 to * - XLCR
9
7220
LOCKWASHER, No. 10 external tooth | 77 to * - XLCR
10
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel) | 77 to * - XLCR
11
7688
NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel) | 77 to * - XLCR
12
7740
LOCKNUT, 5/16-18 X 1/4 X 1/2 hex. | 77 to * - XLCR
13
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel) | 77 to * - XLCR
15
31438-65A
SPRING, over-run | 77 to * - XLCR
16
31439-65A
RETAINER, over-run spring | 77 to * - XLCR
17
31440-65
SPRING, plunger return | 77 to * - XLCR
18
31441-65A
RUBBER BOOT, solenoid plunger | 77 to * - XLCR
19
31452-65A
SPACER | 77 to * - XLCR
20
31457-77
COVER, solenoid | 77 to * - XLCR
21
60645-65
GASKET, solenoid mounting | 77 to * - XLCR
23
71469-65
STARTER SOLENOID SWITCH | 77 to * - XLCR
