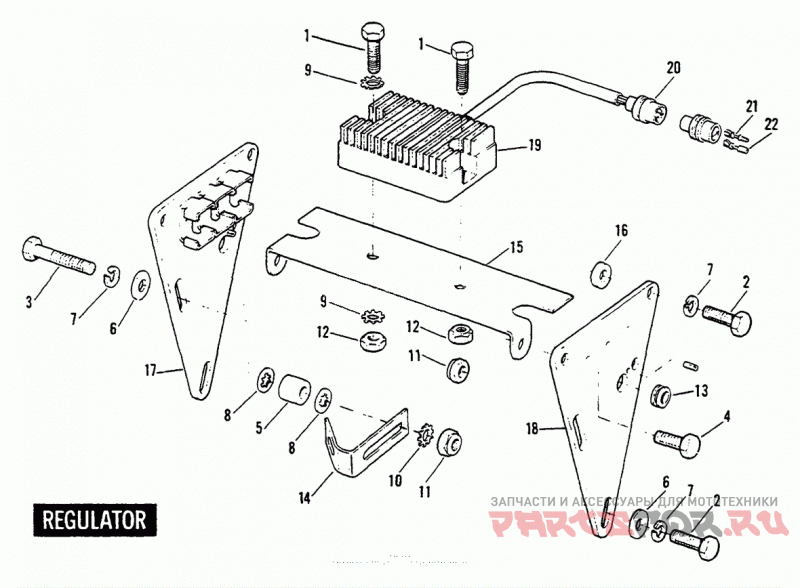

Регулятор

Harley Davidson XLCR-1000 7FH7 Sportster 1000 (1977) (Cafe Racer)

Harley Davidson
#oem кодцена
1
3787
BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel) | 77 to * - XLCR
2
3974HW
BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel) | 77 to * - XLCR
3
4053W
BOLT, 5/16-24 x 2 hex. hd. | 77 to * - XLCR
4
4391
BOLT, 5/16-24 X 5/8 hex. hd. (Grade 5 steel) | 77 to * - XLCR
5
6004
SPACER, headlamp & fairing mounting | 77 to * - XLCR
6
6702
WASHER, 5/16 X 11/16 X 1/16 | 77 to * - XLCR
7
7041
LOCKWASHER, 5/16 | 77 to * - XLCR
8
7127
LOCKWASHER, 5/16 internal tooth | 77 to * - XLCR
9
7230
LOCKWASHER, 1/4 external tooth | 77 to * - XLCR
10
7232
LOCKWASHER, 5/16 external tooth | 77 to * - XLCR
11
7127
LOCKWASHER, 5/16 internal tooth | 77 to * - XLCR
12
7742
LOCKNUT, 1/4-20 X 7/32 X 7/16 hex. | 77 to * - XLCR
13
11409
GROMMET, turn signal wire | 77 to * - XLCR
14
58159-77
BRACKET, fairing mounting | 77 to * - XLCR
15
67731-77
BRACKET, regulator mounting | 77 to * - XLCR
16
67749-77
SPACER, headlamp bracket to fork - upper | 77 to * - XLCR
17
67750-77
BRACKET, headlamp - right | 77 to * - XLCR
18
67751-77
BRACKET, headlamp - left | 77 to * - XLCR
19
74504-78
REGULATOR 78 - XLH, XLCH | 77 to * - XLCR
20
74521-77A
PLUG RECEPTACLE | 77 to * - XLCR
21
74536-77A
PIN, single socket | 77 to * - XLCR
22
74539-77A
SOCKET, single pin | 77 to * - XLCR
