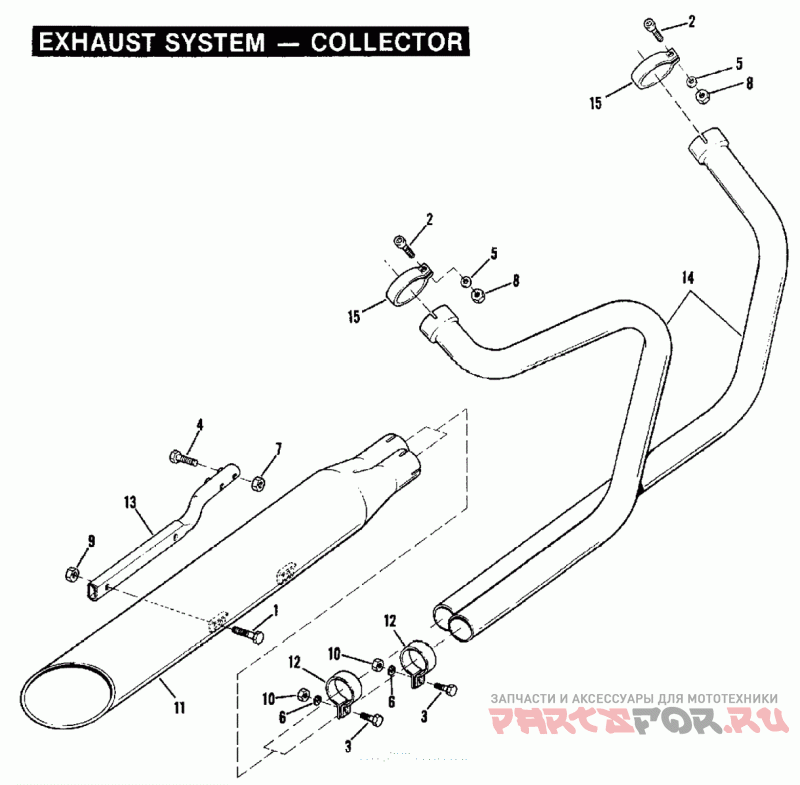

EXHAUST SYSTEM - COLLECTOR

Harley Davidson XLCH-1000 4AH6 Sportster 1000 (1976)

Harley Davidson
#oem кодцена
1
2871W
Деталь BOLT, 5/16-18 X 1-1/4 hex. hd. (Grade 5 steel)
2
3789A
Деталь SCREW, 1/4-20 x 3/4 socket hd. 77 to * - XL, XLCH
2
3789A
Деталь SCREW, 1/4-20 x 3/4 socket hd. 77 to * - XL, XLCH
3
4014W
Деталь BOLT, 5/16-24 X 1-1/4 hex. hd.(Grade 5 steel)
3
4014W
Деталь BOLT, 5/16-24 X 1-1/4 hex. hd.(Grade 5 steel)
4
4719W
Деталь BOLT, 3/8-16 X 2-1/2 hex. hd.(Grade 5 steel)
6
7041
Деталь LOCKWASHER, 5/16
6
7041
Деталь LOCKWASHER, 5/16
7
7633
Деталь LOCKNUT, 3/8-16 x 5/16 x 9/16 hex. 77 to * - XL, XLCH
7
7633
Деталь LOCKNUT, 3/8-16 x 5/16 x 9/16 hex. 77 to * - XL, XLCH
8
7688
Деталь NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
8
7688
Деталь NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
9
7740
Деталь LOCKNUT, 5/16-18 X 1/4 X 1/2 hex.
9
7740
Деталь LOCKNUT, 5/16-18 X 1/4 X 1/2 hex.
10
7753
Деталь NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
10
7753
Деталь NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
11
65230-77
Деталь MUFFLER N/A 77 & 78 - XL, XLCH
11
65230-77
Деталь MUFFLER N/A 77 & 78 - XL, XLCH
12
65276-62
Деталь CLAMP, muffler 77 to * - XL, XLCH
12
65276-62
Деталь CLAMP, muffler 77 to * - XL, XLCH
13
65316-77
Деталь SUPPORT TUBE N/A 77 & 78 - XL, XLCH
13
65316-77
Деталь SUPPORT TUBE N/A 77 & 78 - XL, XLCH
14
65367-77
Деталь EXHAUST PIPE ASSEMBLY N/A 77 & 78 - XL, XLCH
15
65519-52C
Деталь CLAMP pipe to bracket
15
65519-52C
Деталь CLAMP pipe to bracket
