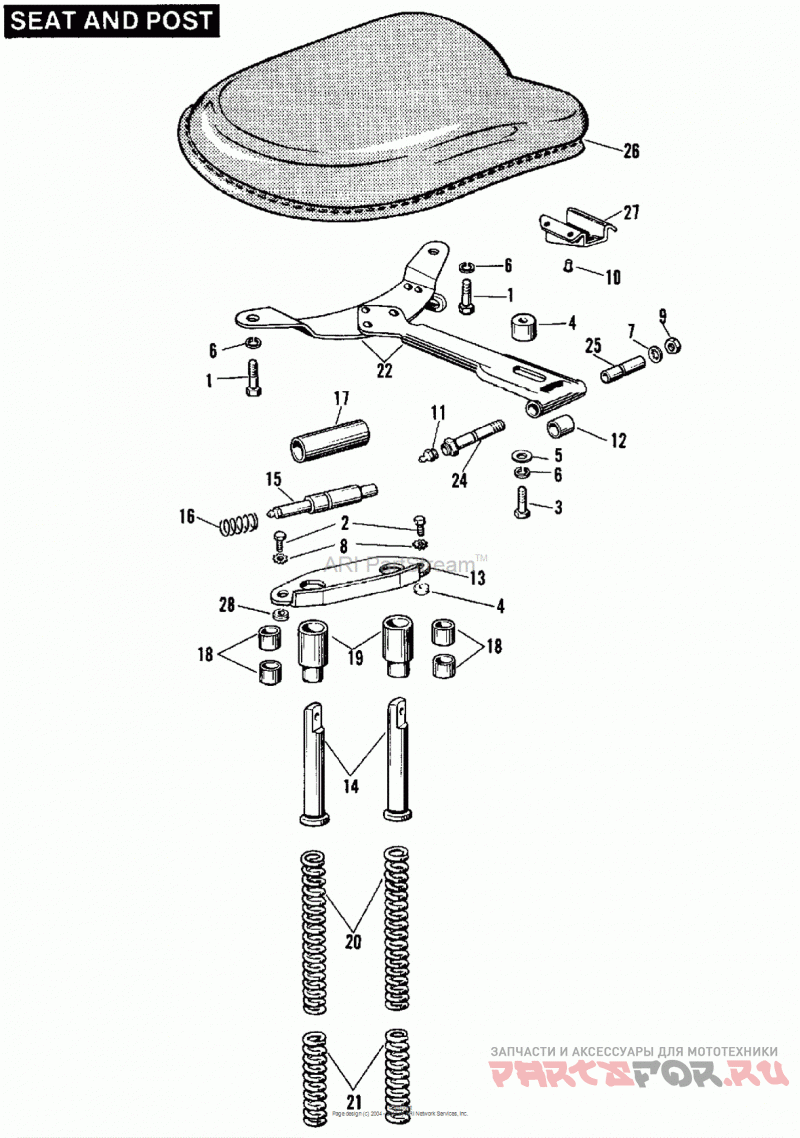

SEAT AND SEAT POST

Harley Davidson XLH-1000 3AH3 Sportster Standard (1973)

Harley Davidson
#oem кодцена
1
3956
Деталь BOLT, 5/16-24 x 9/16 hex. hd. 54 to 70 - KH, XL, XLH, XLCH
2
3960W
Деталь BOLT, 5/16-24 X 1 hex. hd.(Grade 5 steel)
3
4020W
Деталь BOLT, 5/16-24 X 1-3/8 hex. hd.(Grade 5 steel)
5
6327B
Деталь WASHER, 5/16 x 3/4 x 1/16 61 to 70 - XLH, XLCH
6
7041
Деталь LOCKWASHER, 5/16
7
7127
Деталь LOCKWASHER, 5/16 internal tooth
7
7127
Деталь LOCKWASHER, 5/16 internal tooth
8
7232
Деталь LOCKWASHER, 5/16 external tooth
8
7232
Деталь LOCKWASHER, 5/16 external tooth
9
7753
Деталь NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
9
7753
Деталь NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
10
8518
Деталь RIVET, 3/16 x 3/8 x 3/8 truss hd. 65 to 70 - XLCH
10
8518
Деталь RIVET, 3/16 x 3/8 x 3/8 truss hd. 65 to 70 - XLCH
11
9851B
Деталь FITTING lubrication
11
9851B
Деталь FITTING lubrication
12
34037-52
Деталь BUSHING, seat bar 54 to 70 - KH, XL, XLH, XLCH
12
34037-52
Деталь BUSHING, seat bar 54 to 70 - KH, XL, XLH, XLCH
28
52103-31
Деталь SPACER, retaining plate 68 & 69 - XLCH
