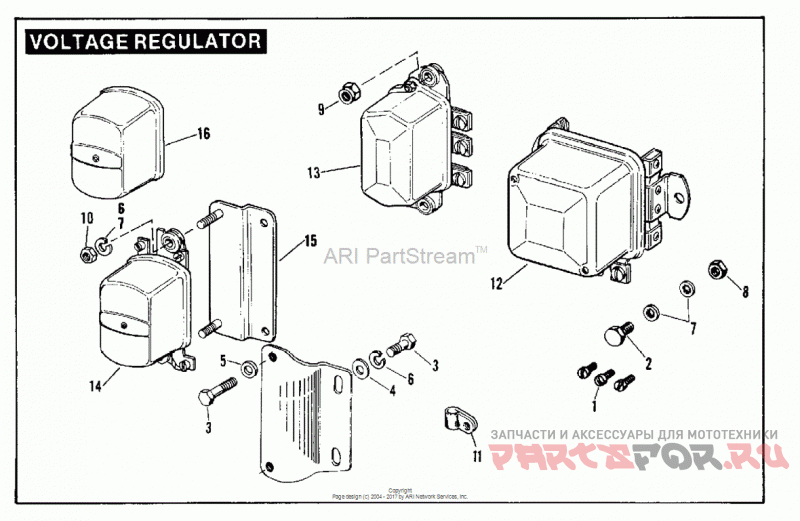

Реле регулятора

Harley Davidson XLH-1000 3AH3 Sportster Standard (1973)

Harley Davidson
#oem кодцена
2
3738
BOLT, 1/4-28 x 1/2 hex. hd. 54 to 64- KH, XL, XLH, XLCH
3
4410
BOLT, 1/4-28 x 3/4 hex. hd. 65 to 76- XLH, XLCH
4
6220W
WASHER, 1/4 X 7/16 X 1/32
6
7036
LOCKWASHER, 1/4
6
7036
LOCKWASHER, 1/4
7
7124
LOCKWASHER, 1/4 internal tooth
7
7124
LOCKWASHER, 1/4 internal tooth
8
7676
NUT, 1/4-28 x 3/16 x 7/16 hex. 54 to 64 - KH, XL, XLH, XLCH
8
7676
NUT, 1/4-28 x 3/16 x 7/16 hex. 54 to 64 - KH, XL, XLH, XLCH
9
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
9
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
10
7688
NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
10
7688
NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
12
74504-78
VOLTAGE REGULATOR, solid state 78 - XL, XLCH
12
74504-78
VOLTAGE REGULATOR, solid state 78 - XL, XLCH
12
74510-47A
VOLTAGE REGULATOR N/A 54 to 64 - KH, XL, XLH
12
74510-47A
VOLTAGE REGULATOR N/A 54 to 64 - KH, XL, XLH
12
74510-59
VOLTAGE REGULATOR N/A 59 to 64 - XLCH
13
74510-64
VOLTAGE REGULATOR 67 to 77 - XLH
13
74510-64
VOLTAGE REGULATOR 67 to 77 - XLH
14
74511-65
VOLTAGE REGULATOR 65 to 77 - XLCH; 65 & 66 - XLH
14
74511-65
VOLTAGE REGULATOR 65 to 77 - XLCH; 65 & 66 - XLH
15
74525-70
MOUNTING BRACKET, voltage regulator N/A 70 to 77 - XLCH
15
74525-70
MOUNTING BRACKET, voltage regulator N/A 70 to 77 - XLCH
15
74525-78
MOUNTING BRACKET, voltage regulator N/A 78 - XLCH
15
74525-78
MOUNTING BRACKET, voltage regulator N/A 78 - XLCH
