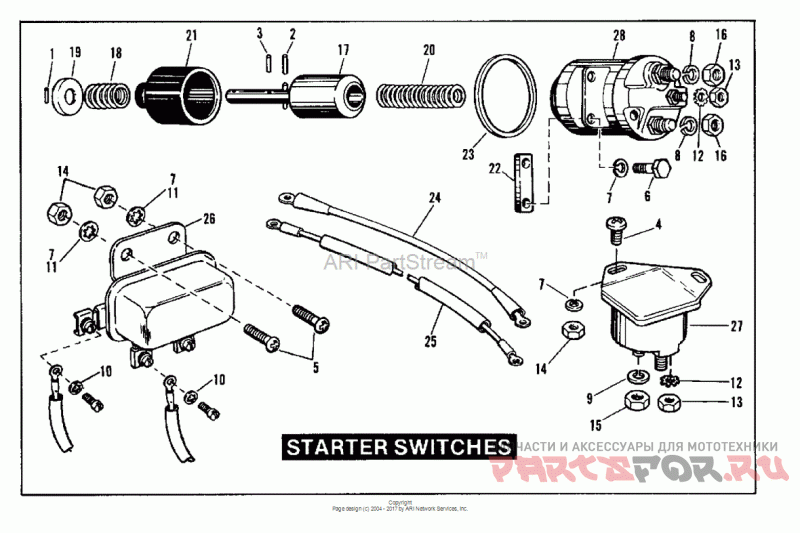

STARTER SWITCHES

Harley Davidson XLCH-1000 4AH3 Sportster 1000 (1973)

Harley Davidson
#oem кодцена
1
256
Деталь ROLL PIN, 7/64 dia. x 1/2 lg. 67 to * - XLH
2
600
Деталь ROLL PIN, 1/8 dia. x 1/2 lg. 67 to * - XLH
3
614
Деталь ROLL PIN, solenoid plunger 67 to * - XLH
4
2773
Деталь SCREW, 1/4-20 X 1/2 Pozidriv pan hd. (Grade 2 steel)
5
2774
Деталь SCREW, 1/4-20 X 5/8 mach. screw pan hd.
6
3802W
Деталь BOLT, 1/4-20 X 7/8 hex. hd. (Grade 5 steel)
7
7036
Деталь LOCKWASHER, 1/4
8
7038
Деталь LOCKWASHER, 3/8
9
7041
Деталь LOCKWASHER, 5/16
10
7115
Деталь LOCKWASHER, No. 8 internal tooth 67 to Early 68 - XLH; Late 71 to 74 - XLH
11
7124
Деталь LOCKWASHER, 1/4 internal tooth
12
7220
Деталь LOCKWASHER, No. 10 external tooth
13
7638
Деталь NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel)
14
7688
Деталь NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
15
7748W
Деталь NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
16
7783
Деталь NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)
17
31435-65B
Деталь PLUNGER ASSEMBLY, solenoid 67 to * - XLH
18
31438-65A
Деталь OVER-RUN SPRING 67 to * - XLH
19
31439-65A
Деталь RETAINER, over-run spring 67 to * - XLH
20
31440-65
Деталь RETURN SPRING, plunger 67 to * - XLH
21
31441-65A
Деталь BOOT, solenoid plunger (rubber) 67 to * - XLH
22
31452-65A
Деталь SPACER, solenoid mounting 67 to * - XLH
23
60645-65
Деталь GASKET, solenoid 67 to * - XLH
26
71455-67
Деталь STARTER RELAY 67 to Early 68 - XLH; Late 71 to 74 - XLH
27
71463-73A
Деталь STARTER RELAY 75 to * - XLH
28
71469-65TB
Деталь SOLENOID STARTER SWITCH
