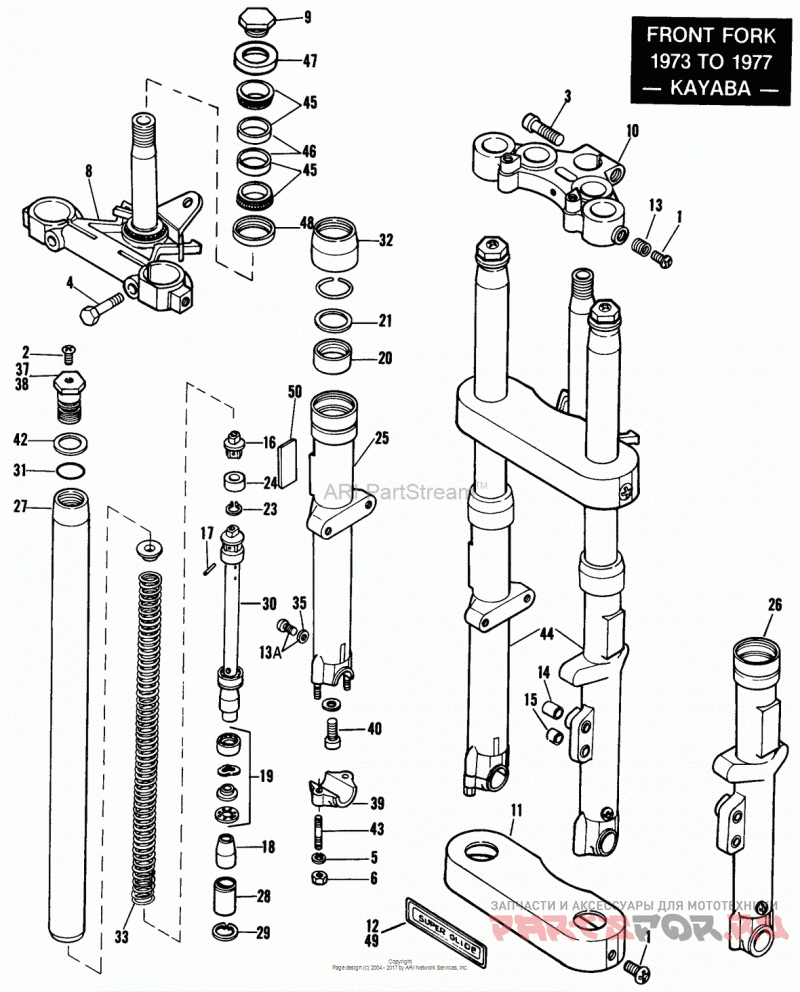

FRONT FORK - 1973 TO 1977 (KAYABA)

Harley Davidson FXE1200 9DH3 FX Super Glide (1973)

Harley Davidson
#oem кодцена
1
2823
SCREW, 5/16-24 X 3/8 Pozidriv truss hd. (w/lockwasher)(Grade 2 steel)
2
2830
SCREW, 5/16-24 x 3/8 Pozidriv truss hd. N/A 74 to 77 - FX
3
4371WA
Болт
4
4411
BOLT, 3/8-24 X 1-3/4 hex. hd.(Grade 5 steel)
5
7041
LOCKWASHER, 5/16
6
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
8
45608-77A
STEM AND BRACKET, with bearing and shield 73 to 77 - FX
9
45718-71
NUT, fork stem 73 to 77 - FX
9
45718-71
NUT, fork stem 73 to 77 - FX
10
45736-78B
UPPER BRACKET 73 to 77 - FX
10
45736-78B
UPPER BRACKET 73 to 77 - FX
11
45751-71TA
FRONT FORK COVER
12
45785-82
NAMEPLATE, front fork in.Super Glidein.. 82 to * - FXE-80
12
45785-82
NAMEPLATE, front fork in.Super Glidein.. 82 to * - FXE-80
13
45782-72A
SCREW INSERT 73 to 77 - FX
13
45782-72A
SCREW INSERT 73 to 77 - FX
13A
45790-80
DRAIN SCREW, with washer . 73 to 77 - FX
13A
45790-80
DRAIN SCREW, with washer . 73 to 77 - FX
14
45821-75
BUSHING, left slider - upper (disc brake) 73 & 74 - FX
14
45821-75
BUSHING, left slider - upper (disc brake) 73 & 74 - FX
15
45822-75
BUSHING, left slider - lower (disc brake) 73 & 74 - FX
15
45822-75
BUSHING, left slider - lower (disc brake) 73 & 74 - FX
16
45916-73
UPPER STOP N/A 73 to 77 - FX
16
45916-73
UPPER STOP N/A 73 to 77 - FX
17
45917-73
ROLL PIN, upper stop N/A 73 to 77 - FX
17
45917-73
ROLL PIN, upper stop N/A 73 to 77 - FX
1~3
45918-73
LOWER STOP N/A 73 to 77 - FX
1~3
45918-73
LOWER STOP N/A 73 to 77 - FX
19
45926-73
VALVE ASSEMBLY N/A 73 to 77 - FX
19
45926-73
VALVE ASSEMBLY N/A 73 to 77 - FX
20
45927-73
OIL SEAL, slider 73 to 77 - FX
20
45927-73
OIL SEAL, slider 73 to 77 - FX
21
45928-73
WASHER, oil seal N/A 73 to 77 - FX
21
45928-73
WASHER, oil seal N/A 73 to 77 - FX
27
45977-73
SLIDER TUBE N/A 73 to 77 - FX
29
45979-73
RETAINING RING, piston N/A 73 to 77 - FX
29
45979-73
RETAINING RING, piston N/A 73 to 77 - FX
30
45980-73
DAMPER TUBE, complete N/A 73 to 77 - FX
30
45980-73
DAMPER TUBE, complete N/A 73 to 77 - FX
31
45982-73
O-RING, slider tube cap 73 to 77 - FX
31
45982-73
O-RING, slider tube cap 73 to 77 - FX
32
45983-73
DUST COVER 73 to 77 - FX
32
45983-73
DUST COVER 73 to 77 - FX
33
45984-73
SPRING N/A 73 to 77 - FX
33
45984-73
SPRING N/A 73 to 77 - FX
37
45993-73
CAP, slider tube, (w/hole) 73, 75 to 77 - FX
37
45993-73
CAP, slider tube, (w/hole) 73, 75 to 77 - FX
39
45994-73
AXLE CAP, slider - right N/A 73 to 77 - FX
39
45994-73
AXLE CAP, slider - right N/A 73 to 77 - FX
40
45995-73
SCREW, damper tube 73 to 77 - FX
42
45997-73
WASHER, slider tube cap 73 to 77 - FX
42
45997-73
WASHER, slider tube cap 73 to 77 - FX
43
45998-73
STUD, slider - right 73 to 77 - FX
43
45998-73
STUD, slider - right 73 to 77 - FX
44
46023-75
SET OF FORK LEGS, complete (SHOWA) N/A 74 to 77 - FX | NOTE: See SHOWA FORK parts list for internal parts
44
46023-75
SET OF FORK LEGS, complete (SHOWA) N/A 74 to 77 - FX | NOTE: See SHOWA FORK parts list for internal parts
45
48300-60
ROLLER BEARING, with cup 73 to 77 - FX
45
48300-60
ROLLER BEARING, with cup 73 to 77 - FX
46
48315-60
HEAD CUP 73 to 77 - FX
46
48315-60
HEAD CUP 73 to 77 - FX
47
48361-80
DUST SHIELD, head bearing - upper 73 to 77 - FX
47
48361-80
DUST SHIELD, head bearing - upper 73 to 77 - FX
48
48365-48A
DUST SHIELD, head bearing - lower 73 to 77 - FX
49
59176-72
NAMEPLATE, front fork - in.Super Glidein. N/A 73 to 76 - FX
49
59176-72
NAMEPLATE, front fork - in.Super Glidein. N/A 73 to 76 - FX
50
59254-91
(HDI Only) REFLECTOR (amber)
50
59254-91
(HDI Only) REFLECTOR (amber)
