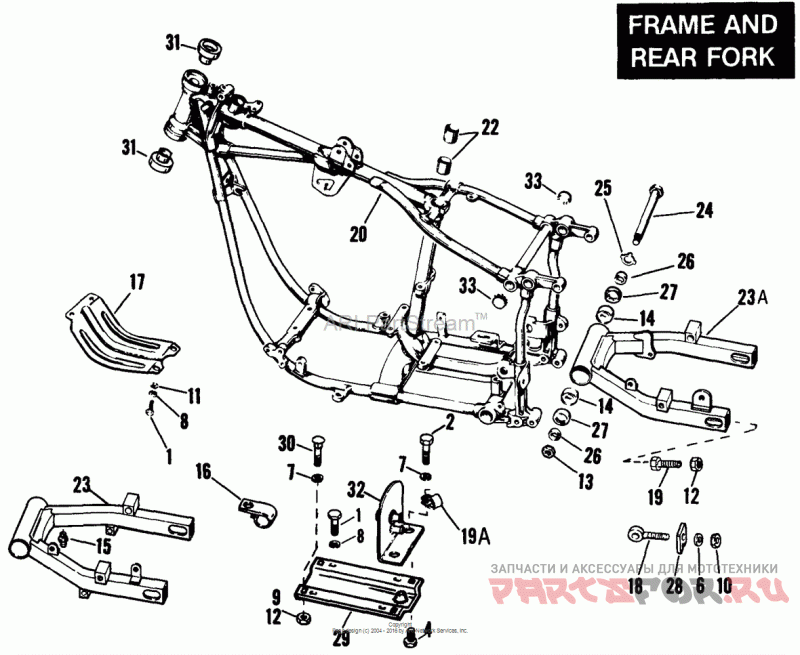

FRAME AND REAR FORK

Harley Davidson FXE1200 9DH3 FX Super Glide (1973)

Harley Davidson
#oem кодцена
1
3974HW
Болт 5/16-24 X 3/4 с шестигранной головкой (класс 5)
1
3974HW
Болт 5/16-24 X 3/4 с шестигранной головкой (класс 5)
2
4319
Болт 3/8-24 X 1 с шестигранной головкой (класс 5)
2
4319
Болт 3/8-24 X 1 с шестигранной головкой (класс 5)
2
4336W
Деталь BOLT, 3/8-24 x 1-1/8 hex. hd. 71 to Early 77 - All Models
2
4336W
Деталь BOLT, 3/8-24 x 1-1/8 hex. hd. 71 to Early 77 - All Models
2
4337W
Деталь SCREW,3/8-24 X 1-1/4 hex cap (grade 5)
2
4337W
Деталь SCREW,3/8-24 X 1-1/4 hex cap (grade 5)
2
4713W
Болт 3/8-16 X 3/4 с шестигранной головкой (класс 5)
2
4713W
Болт 3/8-16 X 3/4 с шестигранной головкой (класс 5)
6
6324W
Деталь WASHER, 5/16 x 11/16 x 3/32 73 to * - All Models
6
6324W
Деталь WASHER, 5/16 x 11/16 x 3/32 73 to * - All Models
7
7038
Стопорная шайба 3/8
7
7038
Стопорная шайба 3/8
8
7041
Деталь LOCKWASHER, 5/16
8
7041
Деталь LOCKWASHER, 5/16
9
7643W
Деталь JAM NUT, 3/8-16 X 7-32 X 9/16 hex.
9
7643W
Деталь JAM NUT, 3/8-16 X 7-32 X 9/16 hex.
10
7725
Контргайка 5/16-24 X 11/32 X 1/2
10
7725
Контргайка 5/16-24 X 11/32 X 1/2
11
7753
Гайка 5/16-24 X 1/4 X 1/2 (класс 2)
12
7783
Гайка 3/8-16 X 5/16 X 9/16 (класс 2)
12
7783
Гайка 3/8-16 X 5/16 X 9/16 (класс 2)
12
7800W
Гайка 3/8-24 X 5/16 X 9/16 (класс 2)
12
7800W
Гайка 3/8-24 X 5/16 X 9/16 (класс 2)
13
7813A
Гайка 5/8-18 X 9/16 X 15/16 (класс 2)
13
7813A
Гайка 5/8-18 X 9/16 X 15/16 (класс 2)
14
9052
Подшипник роликовый
14
9052
Подшипник роликовый
15
9851B
Деталь FITTING lubrication
15
9851B
Деталь FITTING lubrication
16
9951
Деталь CLAMP, rear chain oiler hose 80 to 82 - All Models except FXB & FXSB
16
9951
Деталь CLAMP, rear chain oiler hose 80 to 82 - All Models except FXB & FXSB
17
24490-36
Деталь CRANK CASE GUARD 71 to Early 81 - All Models
17
24490-36
Деталь CRANK CASE GUARD 71 to Early 81 - All Models
18
41570-77
Деталь ADJUSTER, rear axle 73 to * - All Models
18
41570-77
Деталь ADJUSTER, rear axle 73 to * - All Models
19
41576-36
Деталь BOLT, axle adjuster 71 & 72 - All Models
19A
42327-70
Деталь CLAMP, rear brake line 80 to Early 82 - FXWG
19A
42327-70
Деталь CLAMP, rear brake line 80 to Early 82 - FXWG
20
47013-78C
Деталь FRAME 77 to * - All Models except FX, FXE
20
47013-78C
Деталь FRAME 77 to * - All Models except FX, FXE
21
47013-78C
Деталь FRAME 77 to * - All Models except FX, FXE
21
47013-78C
Деталь FRAME 77 to * - All Models except FX, FXE
21
47013-72D
Деталь FRAME 71 to 76 - All Models
21
47013-72D
Деталь FRAME 71 to 76 - All Models
22
47094-58
Деталь BUSHING, seat post 71 to 77 - All Models
22
47094-58
Деталь BUSHING, seat post 71 to 77 - All Models
23
47446-79
Деталь REAR FORK ASSEMBLY, includes index nos. 14, 26 & 27 80 to Early 82 - FXB
23
47446-79
Деталь REAR FORK ASSEMBLY, includes index nos. 14, 26 & 27 80 to Early 82 - FXB
23
47500-73
Деталь REAR FORK 73 to Early 78 - All Models
23
47500-73
Деталь REAR FORK 73 to Early 78 - All Models
23
47500-78
Деталь REAR FORK ASSEMBLY, includes index nos. 14, 26 & 27 Late 78 to Early 82 - All Models except FXB
23
47500-78
Деталь REAR FORK ASSEMBLY, includes index nos. 14, 26 & 27 Late 78 to Early 82 - All Models except FXB
23A
47446-82
Деталь REAR FORK Late 82 - FXB; 83 to * - FXSB; 84 - FXWG
23A
47446-82
Деталь REAR FORK Late 82 - FXB; 83 to * - FXSB; 84 - FXWG
23A
47498-82A
Деталь REAR FORK Late 82 & 83 - FXS-80, FXWG Late 82 to * - FXE-80
23A
47498-82A
Деталь REAR FORK Late 82 & 83 - FXS-80, FXWG Late 82 to * - FXE-80
24
47510-58
Деталь PIVOT BOLT, rear fork 71 to * - All Models
24
47510-58
Деталь PIVOT BOLT, rear fork 71 to * - All Models
25
47513-58
Деталь LOCKWASHER, pivot bolt 71 to * - All Models
25
47513-58
Деталь LOCKWASHER, pivot bolt 71 to * - All Models
26
47517-58
Деталь SPACER, pivot bearing 71 to * - All Models
26
47517-58
Деталь SPACER, pivot bearing 71 to * - All Models
27
47519-72
Деталь SEAL, pivot bearing 73 to * - All Models
27
47519-72
Деталь SEAL, pivot bearing 73 to * - All Models
27
47519-83A
Уплотнение
27
47519-83A
Уплотнение
28
47554-73A
Торцевая крышка задней вилки
28
47554-73A
Торцевая крышка задней вилки
29
47698-65C
Деталь TRANSMISSION MOUNTING PLATE 71 to * - All Models
29
47698-65C
Деталь TRANSMISSION MOUNTING PLATE 71 to * - All Models
30
47730-77
Деталь CARRIAGE BOLT, transmission mounting plate Late 77 to * - All Models
30
47730-77
Деталь CARRIAGE BOLT, transmission mounting plate Late 77 to * - All Models
31
48311-60
Деталь HEAD CUP, frame 71 to * - All Models
31
48311-60
Деталь HEAD CUP, frame 71 to * - All Models
32
62538-82
Деталь MOUNTING BRACKET, spin-on oil filter Late 82 to * - All Models
32
62538-82
Деталь MOUNTING BRACKET, spin-on oil filter Late 82 to * - All Models
33
68797-68A
Деталь END PLUG, frame 80 to 84 - FXWG
33
68797-68A
Деталь END PLUG, frame 80 to 84 - FXWG
