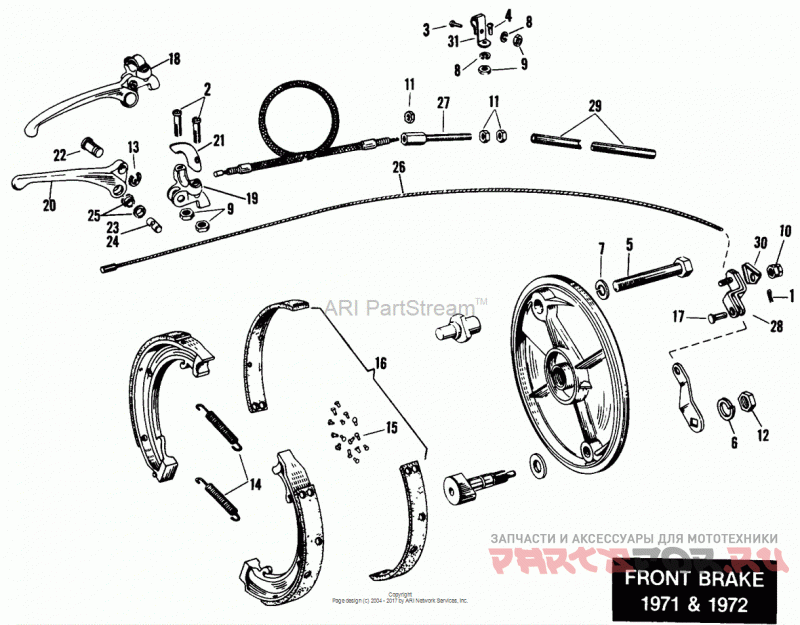

FRONT BRAKE - 1971 & 1972

Harley Davidson FX-1200 2CH2 Super Glide 1200 (1972)

Harley Davidson
#oem кодцена
1
515
COTTER PIN, 1/16 dia. x 1/2 71 & 72 - FX
2
1205
SCREW, No. 10-24 x 3/4 Pozidriv fil. hd. 71 & 72 - FX
3
2592
SCREW, No. 10-24 X 1/2 Pozidriv pan hd. (Grade 2 steel)
4
2660
SCREW, No. 10-24 x 3/8 Pozidriv pan hd. 71 & 72 - FX
6
7038
LOCKWASHER, 3/8
7
7039
LOCKWASHER, 7/16
8
7069
LOCKWASHER, No. 10
9
7620W
NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel)
9
7620W
NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel)
10
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex.
10
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex.
11
7744
JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)
11
7744
JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)
12
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
12
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
13
11036
RETAINING RING, pivot pin 71 & 72 - FX
13
11036
RETAINING RING, pivot pin 71 & 72 - FX
14
41835-69
SPRING, brakeshoe 71 & 72 - FX
14
41835-69
SPRING, brakeshoe 71 & 72 - FX
15
41841-31
RIVET, brake lining N/A 71 & 72 - FX
15
41841-31
RIVET, brake lining N/A 71 & 72 - FX
16
41848-64
SET OF BRAKE LININGS AND RIVETS N/A 71 & 72 - FX
16
41848-64
SET OF BRAKE LININGS AND RIVETS N/A 71 & 72 - FX
18
45002-69
HAND LEVER AND BRACKET N/A 71 & 72 - FX
19
45023-69
BRACKET, only N/A 71 & 72 - FX
19
45023-69
BRACKET, only N/A 71 & 72 - FX
20
45024-65A
HAND LEVER, with pins and nylon bushings 71 & 72 - FX
20
45024-65A
HAND LEVER, with pins and nylon bushings 71 & 72 - FX
21
45030-65A
CLAMP, hand lever bracket 71 & 72 - FX
21
45030-65A
CLAMP, hand lever bracket 71 & 72 - FX
22
45031-65
PIVOT PIN, hand lever 71 & 72 - FX
22
45031-65
PIVOT PIN, hand lever 71 & 72 - FX
23
45034-68
ANCHOR PIN, hand lever (used without bushings) 71 & 72 - FX
23
45034-68
ANCHOR PIN, hand lever (used without bushings) 71 & 72 - FX
24
45036-68
ANCHOR PIN, hand lever (used with plastic bushings) 71 & 72 - FX
24
45036-68
ANCHOR PIN, hand lever (used with plastic bushings) 71 & 72 - FX
25
45039-68
BUSHING, hand lever cable anchor pin (plastic) 71 & 72 - FX
25
45039-68
BUSHING, hand lever cable anchor pin (plastic) 71 & 72 - FX
26
45060-54
CABLE COIL ASSEMBLY 71 & 72 - FX
26
45060-54
CABLE COIL ASSEMBLY 71 & 72 - FX
27
45159-50
ADJUSTING SCREW, control coil N/A 71 & 72 - FX
27
45159-50
ADJUSTING SCREW, control coil N/A 71 & 72 - FX
28
45174-64
CLEVIS, brake cable N/A 71 & 72 - FX
29
45203-52
TUBE, brake cable N/A 71 & 72 - FX
29
45203-52
TUBE, brake cable N/A 71 & 72 - FX
31
45218-52
CLAMP, cable tube N/A 71 & 72 - FX
31
45218-52
CLAMP, cable tube N/A 71 & 72 - FX
