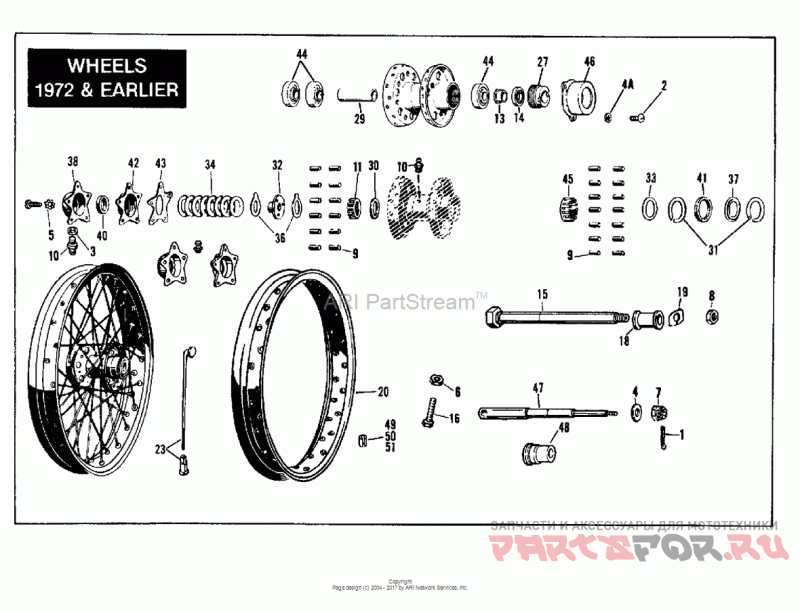

WHEELS - 1972 & EARLIER

Harley Davidson FLPF Electra Glide (1972)

Harley Davidson
#oem кодцена
1
534
Деталь COTTER PIN 3/32 x 7/8 41 to 72 - FL, FLH
2
2660
Деталь SCREW, No. 10-32 x 3/8 Pozidriv pan hd. Late 70 to 72 - FL, FLH
3
6300
Деталь WASHER, 5/16 x 7/16 x 1/32 N/A 41 to 66 - FL, FLH
4
6590HW
Деталь WASHER, 1/2 X 1-1/8 X 3/32
4A
7118
Деталь LOCKWASHER, No. 10 internal tooth
5
7230
Деталь LOCKWASHER, 1/4 external tooth
6
7800W
Деталь NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
7
7734W
Деталь CASTLE NUT, 1/2-20 x 9/16 x 3/4 hex. 41 to 72 - FL, FLH
8
7813A
Деталь NUT, 5/8-18 X 9/16 X 15/16 (Grade 2)
9
9220A
Деталь ROLLER 41 to 66 - FL, FLH
10
9851B
Деталь FITTING lubrication
11
24721-30
Деталь ROLLER RETAINER 41 to 66 - FL, FLH
13
41196-55
Деталь SPACER, wheel hub 67 to 72 - FL, FLH
14
41210-55
Деталь OIL SEAL, wheel bearing 67 to 72 - FL, FLH
15
41552-67
Деталь REAR AXLE 67 to 72 - FL, FLH
16
41576-36
Деталь BOLT, axle adjuster 41 to 72 - FL, FLH
18
41595-67
Деталь SPACER, rearaxle N/A 67 to 72 - FL, FLH
19
41603-32
Деталь LOCKWASHER, rear axle nut N/A 41 to 72 - FL, FLH
20
43006-40A
Деталь RIM, 16in. (black) N/A 41 to 72 - FL, FLH
20
43085-81
Деталь RIM, front and rear - 16in. (chrome) 41 to 72 - FL, FLH
23
43241-05
Деталь SPOKE AND NIPPLE SET 16 inch
27
43542-67
Деталь LOCKNUT, wheel bearing (L.H. thread) 67 to 72 - FL, FLH
29
43549-67
Деталь SPACER, wheel bearing 67 to 72 - FL, FLH
30
43552-39
Деталь THRUST WASHER, inner N/A 41 to 66 - FL, FLH
31
43554-35
Деталь LOCK RING, thrust washer N/A 41 to 66 - FL, FLH
32
43556-35
Деталь SLEEVE, thrust bearing N/A 41 to 66 - FL, FLH
33
43558-39
Деталь THRUST WASHER, roller bearing - brake side N/A 41 to 66 - FL, FLH
34
43560-35
Деталь ADJUSTING SHIM - 0.002 thick 41 to 66 - FL, FLH
36
43563-35
Деталь THRUST WASHER, thick (2 per hub) 41 to 66 - FL, FLH
37
43564-35
Деталь RETAINER - brake side (cork) N/A 41 to 66 - FL, FLH
40
43570-35
Деталь WASHER (cork) 41 to 66 - FL, FLH
41
43571-35
Деталь WASHER - brake side (cork) N/A 41 to 66 - FL, FLH
42
43574-55
Деталь THRUST WASHER, wheel hub 55 to 66 - FL, FLH
43
43576-35
Деталь GASKET, inner thrust bearing cover N/A 41 to 66 - FL, FLH
44
43577-67
Деталь BEARING, wheel hub and brake drum (2 front - 3 rear) 67 to 72 - FL, FLH
45
43578-35
Деталь ROLLER RETAINER - brake side 41 to 66 - FL, FLH
46
43592-70
Деталь RETAINER, wheel bearing locknut Late 70 to 72 - FL, FLH
47
43875-48
Деталь FRONT AXLE N/A 49 to 66 - FL, FLH
47
43875-67
Деталь FRONT AXLE N/A 67 to 71 - FL, FLH
48
43885-72
Деталь SPACER, front axle - left N/A 72 - FL, FLH
49
95578-41
Деталь WHEEL WEIGHT, 1/2 oz. - 0.275in. I.D 41 to 72 - FL, FLH
50
95581-47
Деталь WHEEL WEIGHT, 3/4 oz. - 0.275in. I.D 41 to 72 - FL, FLH
51
95582-47
Деталь WHEEL WEIGHT, 1 oz. - 0.275in. I.D 41 to 72 - FL, FLH
