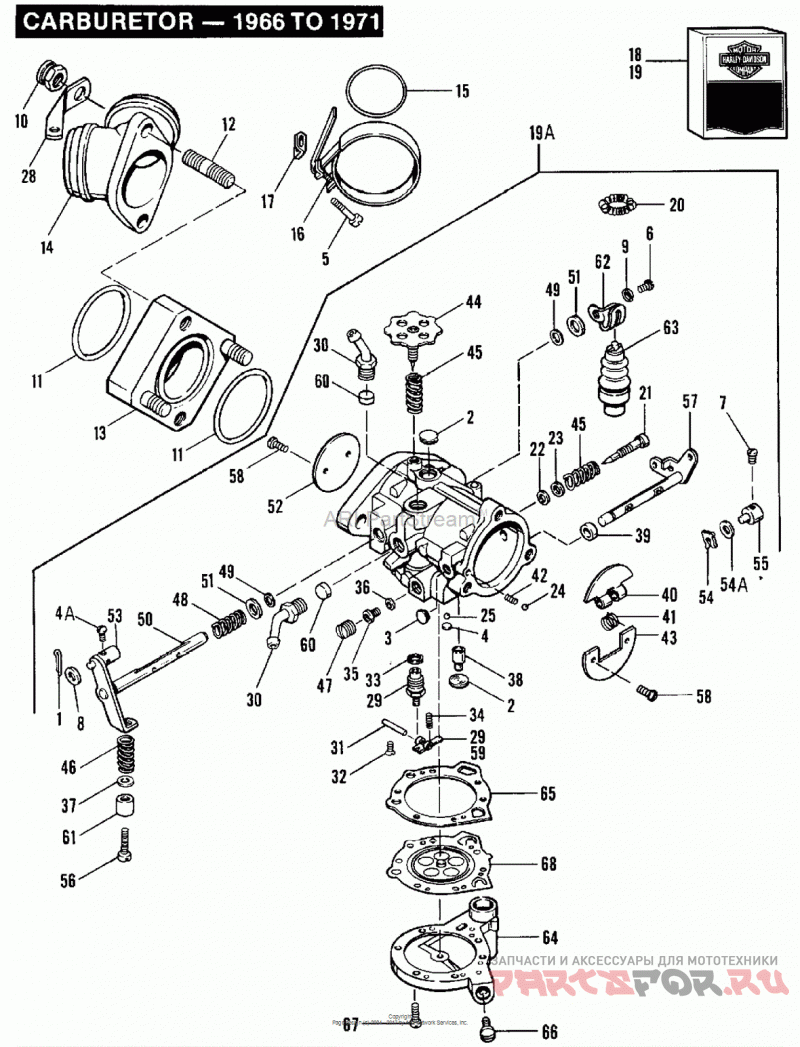

CARBURETOR - 1966 to 1971 (TILLOTSON)

Harley Davidson XLCH-1000 4AH1 Sportster 1000 (1971)

Harley Davidson
#oem кодцена
1
515
COTTER PIN, 1/16 x 1/2 66 to 71 - XLH, XLCH
1
515
COTTER PIN, 1/16 x 1/2 66 to 71 - XLH, XLCH
4A
990W
SCREW, No. 6-32 x 1/4 fil. hd. N/A 66 to 71 - XLH, XLCH
4A
990W
SCREW, No. 6-32 x 1/4 fil. hd. N/A 66 to 71 - XLH, XLCH
5
991
SCREW, No. 10-24 x 1 Pozidriv fil. hd. N/A 66 to 71 - XLH, XLCH
5
991
SCREW, No. 10-24 x 1 Pozidriv fil. hd. N/A 66 to 71 - XLH, XLCH
6
2540
SCREW, No. 4-36 x 1/4 fil. hd. N/A 66 to 71 - XLH, XLCH
6
2540
SCREW, No. 4-36 x 1/4 fil. hd. N/A 66 to 71 - XLH, XLCH
7
2589
SCREW, No. 6-32 x 1/4 Pozidriv pan hd. 66 to 71 - XLH, XLCH
8
6189W
WASHER, No. 8 x 3/8 x 1/32 66 to 71 - XLH, XLCH
8
6189W
WASHER, No. 8 x 3/8 x 1/32 66 to 71 - XLH, XLCH
10
7776W
LOCKNUT, 3/8-24 x 9/16 x 1/4 hex. 66 to 71 - XLH, XLCH
10
7776W
LOCKNUT, 3/8-24 x 9/16 x 1/4 hex. 66 to 71 - XLH, XLCH
11
11107
O-RING, manifold 66 to 71 - XLH, XLCH
11
11107
O-RING, manifold 66 to 71 - XLH, XLCH
12
24824-67
STUD, carburetor adapter - 2 in N/A 67 to 69 - XLCH
12
24824-67
STUD, carburetor adapter - 2 in N/A 67 to 69 - XLCH
15
27060-55
O-RING 66 to 71 - XL, XLH, XLCH
16
27063-57
CLAMP, complete 66 to 71 - XL, XLH, XLCH
16
27063-57
CLAMP, complete 66 to 71 - XL, XLH, XLCH
19
27147-66
REPAIR PARTS KIT N/A 66 to 71 - XL, XLH, XLCH
19
27147-66
REPAIR PARTS KIT N/A 66 to 71 - XL, XLH, XLCH
24
27406-26
BALL, choke shaft friction spring N/A 66 to 71 - XLH, XLCH
43
27673-66
CHOKE SHUTTER 66 to 71 - XLH, XLCH
43
27673-66
CHOKE SHUTTER 66 to 71 - XLH, XLCH
64
27804-66A
DIAPHRAGM COVER N/A 66 to 71 - XLH, XLCH
65
27806-66
GASKET, diaphragm cover N/A 66 to 71 - XLH, XLCH
68
27816-66
DIAPHRAGM N/A 66 to 71 - XLH, XLCH
68
27816-66
DIAPHRAGM N/A 66 to 71 - XLH, XLCH
