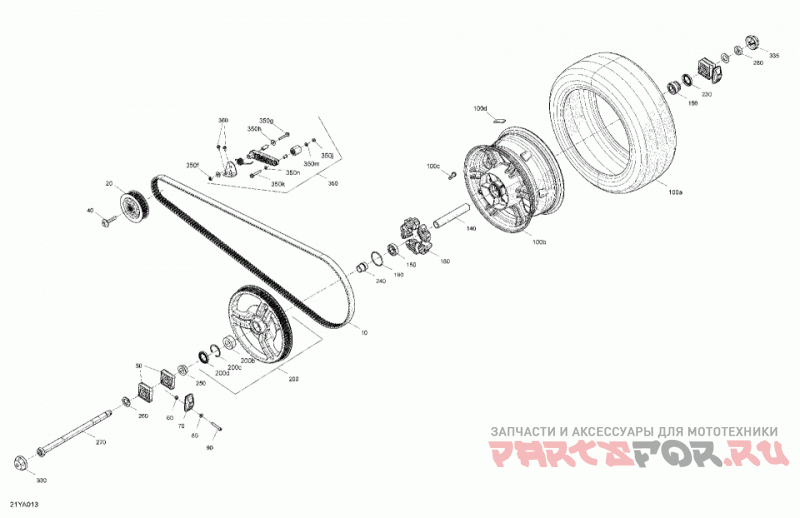

04- drive - rear common parts

Can-Am 011 - RT LIMITED - Special Series - Highland Green (Built After Sept. 2020)

Can-Am
#oem кодцена
10
705501304
Drive Belt.
100a
705501464
Rear Tire.
100b
705501992
Black, Rear Rim.
100c
705400193
Rim Valve With Cap.
100d
705503182
Weight Balancing.
140
705502093
Spacer.
150
293350115
Ball Bearing.
180
705500736
Damper.
190
293300124
O-Ring.
20
705503239
Sprocket 28 Teeth.
200b
293350065
Double Row Bearing.
200c
293370053
Circlip.
200d
293200094
Seal.
230
293200094
Seal.
240
705500853
Spacer.
250
705501602
Spacer.
260
250200163
Flat Washer.
270
705501691
Rear Wheel Axle.
280
250100170
Hex. Jam Nut M24.
330
705501081
LH Cap.
335
705501022
RH Cap.
350f
232581414
Hex. Elastic Stop Nut M8.
350g
207685044
Hex. Flanged Screw M8 X 50.
350h
234082410
Flat Washer 8 mm.
350j
232581414
Hex. Elastic Stop Nut M8.
350k
207685044
Hex. Flanged Screw M8 X 50.
350m
234081410
Flat Washer 8 mm.
360
207561244
Hex. Flanged Screw M6 X 12, Scotch Grip.
40
250001017
Screw-Hex. Flange DIN.6921 S.Grip.
50
705502448
Sliding Block.
60
250100141
Hex. Elastic Nut M8.
70
705502450
Adjustment Support.
80
234081410
Flat Washer 8 mm.
90
250000713
Socket Screw DIN.912.
