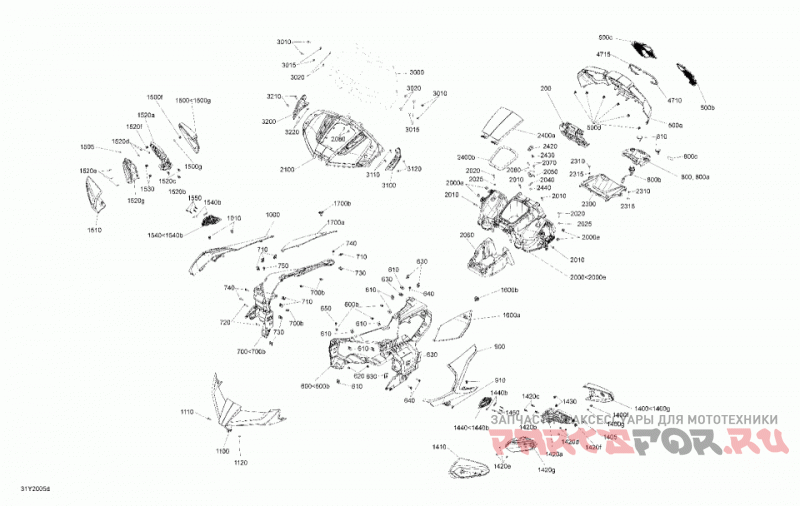

09- body and accessories console

Can-Am 005 - F3 LTD SE6 (Built Before Sept.2020)

Can-Am
#oem кодцена
1000
708400068
Steel Black, RH Consol Fairing. Models Steel Black Metallic.
1000
708400451
Magma Red, RH Consol Fairing. Models Magma Red.
1000
708400413
Liquide Titan, RH Consol Fairing. Models Liquid Titan.
1010
293150230
Tuflok Plastic Rivet.
1100
708400075
Steel Black, Nose Fairing. Models Steel Black Metallic.
1100
708400452
Magma Red, Nose Fairing. Models Magma Red.
1100
708400415
Liquide Titan, B-160 Deep Black. Models Liquid Titan.
1110
250000762
Torx Screw M5 X 25.
1120
233251494
Elastic Flanged Nut M5.
1400<1400g
708400115
Deep Black, LH Mirror Shell. Includes 1400 TO 1400g.
1400f
705010625
Spring.
1400g
232561600
Hex. Elastic Stop Nut M6.
1405
250000577
Torx Truss Screw K40 X 12.
1410
708400497
Steel Black, Mirror Shell LH. Models Steel Black Metallic, Australia.
1410
708400471
Steel Black - Mirror Shell LH. Models Steel Black Metallic, Except Australia.
1410
708400485
Magma Red, LH Mirror Shell. Models Magma Red, Except Australia.
1410
708400475
Liquid Titan, Mirror Shell LH. Models Liquid Titan, Except Australia.
1410
708400507
Liquid Titan, Mirror Shell LH. Models Liquid Titan, Australia.
1420a
708400224
LH Mirror Support.
1420b
705006733
Flat Head Stud M5.
1420c
705006734
Round Head Stud M5.
1420d
233251434
Flanged Elastic Nut M5.
1420e
250000577
Torx Truss Screw K40 X 12.
1420f
517302785
Edge Clip.
1420g
710001510
LH Front Flasher Unit. Package CHROME, Australia.
1420g
710006197
LH Front Flasher Unit. Package DARK, Australia.
1430
517306478
Clip.
1440b
705006661
Spring.
1450
250000760
Torx Screw Truss Head K50X20 T20.
1500<1500g
708400118
RH Mirror Shell. Includes 1500 TO 1500g.
1500f
705010625
Spring.
1500g
232561600
Hex. Elastic Stop Nut M6.
1510
708400498
Steel Black, Mirror Shell RH. Models Steel Black Metallic, Australia.
1510
708400472
Steel Black - RH Mirror Shell. Models Steel Black Metallic, Except Australia.
1510
708400486
Magma Red, RH Mirror Shell. Models Magma Red, Except Australia.
1510
708400476
Liquid Titan, Mirror Shell RH. Models Liquid Titan, Except Australia.
1510
708400508
Liquid Titan, Mirror Shell RH. Models Liquid Titan, Australia.
1520a
708400225
RH Mirror Support.
1520b
705006733
Flat Head Stud M5.
1520c
705006734
Round Head Stud M5.
1520d
233251434
Flanged Elastic Nut M5.
1520e
250000577
Torx Truss Screw K40 X 12.
1520f
517302785
Edge Clip.
1520g
710006198
RH Front Flasher Unit. Package DARK, Australia.
1520g
710001511
RH Front Flasher Unit. Package CHROME, Australia.
1530
517306478
Clip.
1600a
708400457
Magma Red, LH Access Panel. Models Magma Red.
1600a
708400420
Liquid Titan, LH Access Panel. Models Liquid Titan.
1600a
708400256
Steel Black, LH Access Panel. Models Steel Black Metallic.
1600b
708400065
Cover Latch Quarter Turn.
1700a
708400458
Magma Red, RH Access Panel. Models Magma Red.
1700a
708400421
Liquid Titan, RH Access Panel. Models Liquid Titan.
1700a
708400257
Steel Black, RH Access Panel. Models Steel Black Metallic.
1700b
708400065
Cover Latch Quarter Turn.
200
705012178
Speedometer Support.
2000<2000e
708400219
Upper Pod. Includes 2000 TO 2000e.
2010
250000807
Torx Truss Screw M6 X 25.
2020
250000732
Torx Screw Nylon.
2025
234052670
Inox. Flat Washer M5.
2040
705006661
Spring.
2050
708400215
Receptacle.
2060
708400103
Pod Foam.
2070
250000762
Torx Screw M5 X 25.
2080
233251494
Elastic Flanged Nut M5.
2100
708400221
Upper Fairing.
2300
708400108
Column Fairing.
2310
250000762
Torx Screw M5 X 25.
2315
234052670
Inox. Flat Washer M5.
2400a
708400217
Glove Box Door.
2400b
293250406
Seal.
2420
708400213
Lever.
2430
705011056
Stud M5.
2440
234052670
Inox. Flat Washer M5.
3000
708400342
Windshield.
3010
250000528
Torx Screw M5 X 20.
3015
234052670
Inox. Flat Washer M5.
3020
293830190
Rubber Washer.
3100
708400185
Chrome, Windshield Base LH. Package CHROME.
3100
708400127
Carbon Black Windshield Base LH. Package DARK.
3110
250000328
Torx Screw M6 X 25, Scotch Grip.
3120
234061600
Stainless, Flat Washer M6.
3200
708400186
Chrome, Windshield Base RH. Package CHROME.
3200
708400128
Carbon Black Windshield Base RH. Package DARK.
3210
250000328
Torx Screw M6 X 25, Scotch Grip.
3220
234061600
Stainless, Flat Washer M6.
4710
705012356
Carbon Black, LH Trim Gauge. Package DARK.
4710
705012755
Hyper Silver, LH Trim Gauge. Package CHROME.
4715
705012357
Carbon Black, RH Trim Gauge. Package DARK.
4715
705012756
Hyper Silver, RH Trim Gauge. Package CHROME.
500a
708400230
Dashboard.
500b
708400231
LH Grill.
500c
708400232
RH Grill.
500d
517302785
Edge Clip.
600<600b
708400170
LH Consol Supp. Includes 600 TO 600b.
600b
250000958
Panel Nut M5 X 0.8.
610
250100208
Panel Nut M6 X 1.0.
620
233261494
Hex. Elastic Flanged Nut M6.
630
250100208
Panel Nut M6 X 1.0.
640
250000793
Hex. Flanged Screw M6 X 25.
650
210261650
Hex. Flanged Screw M6 X 16.
700<700b
708400171
RH Console Support. Includes 700 TO 700b.
700b
250000958
Panel Nut M5 X 0.8.
710
250100208
Panel Nut M6 X 1.0.
720
250000758
Torx Screw M6 X 25.
730
250100208
Panel Nut M6 X 1.0.
740
250000793
Hex. Flanged Screw M6 X 25.
750
210261650
Hex. Flanged Screw M6 X 16.
800
708400205
Switch Bezel. Except China.
800b
710007132
Rear Fog Light Switch. China.
800c
704908272
Decal Rear Fog Light. China.
810
708400046
Cap. Except China.
900
708400066
Steel Black, LH Consol Fairing. Models Steel Black Metallic.
900
708400450
Magma Red, LH Consol Fairing. Models Magma Red.
900
708400414
Liquide Titan, LH Consol Fairing. Models Liquid Titan.
910
293150230
Tuflok Plastic Rivet.
