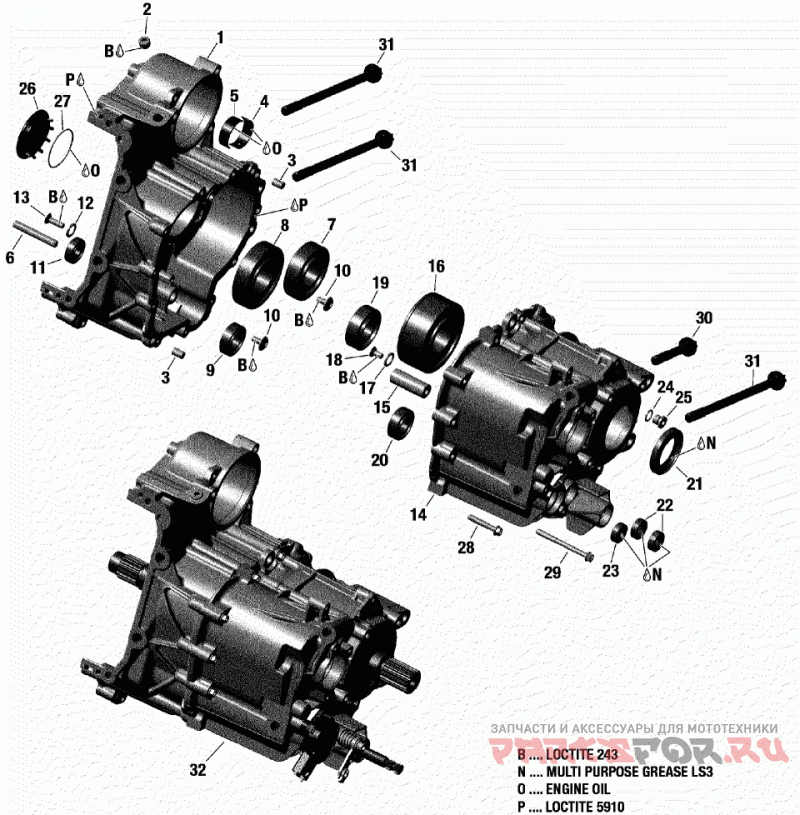

05- gearbox housing

Can-Am 002 - F3 S SM6

05- gearbox housing

#

oem код

название

цена

1>13

Gear Box Clutch Side.

Gear Box Clutch Side.

10

Hex. Screw M6 X 13.

Hex. Screw M6 X 13.

11

Ball Bearing.

Ball Bearing.

12

Washer.

Washer.

13

Screw M6 X 20.

Screw M6 X 20.

14>21

Gear Box PTO Side.

Gear Box PTO Side.

15

Bolt.

Bolt.

16

Ball Bearing.

Ball Bearing.

17

Washer.

Washer.

18

Screw M6 X 12.

Screw M6 X 12.

19

Ball Bearing.

Ball Bearing.

2

Plug Screw M12 X 1.5.

Plug Screw M12 X 1.5.

20

Ball Bearing.

Ball Bearing.

21

Oil Seal.

Oil Seal.

22

Oil Seal.

Oil Seal.

23

Oil Seal.

Oil Seal.

24

Oil Seal.

Oil Seal.

25

Plug Screw M10 X 1.

Plug Screw M10 X 1.

26

Cover.

Cover.

27

O-Ring.

O-Ring.

28

Flanged Torx Screw M6 X 35.

Flanged Torx Screw M6 X 35.

29

Hex. Flanged Screw M6 X 65.

Hex. Flanged Screw M6 X 65.

3

Center Pin 8 X 12.

Center Pin 8 X 12.

30

Torx Screw M10 X 65.

Torx Screw M10 X 65.

31

Torx Screw M10 X 175.

Torx Screw M10 X 175.

6

Pin 8, M6 X 55.

Pin 8, M6 X 55.

7

Ball Bearing.

Ball Bearing.

8

Ball Bearing.

Ball Bearing.

9

Ball Bearing.

Ball Bearing.
