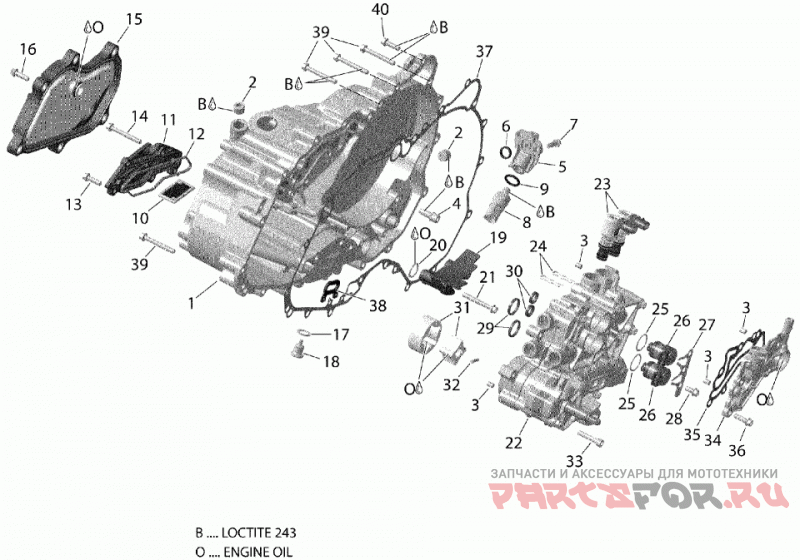

01- clutch cover - se6

Can-Am 001 - RT STD SE6

Can-Am
#oem кодцена
10
420656990
Oil Sieve.
11
420210870
Oil Duct Cover.
12
420250630
Gasket.
13
420440207
Flanged Torx Screw M6 X 20.
14
420440324
Flanged Torx Screw M6 X 45.
15
420211156
Oil Filter Cover.
16
420440207
Flanged Torx Screw M6 X 20.
17
420250640
Sealing Ring.
18
420241780
Magnetic Drain Plug M12 X 1.5.
19
420224085
Oil Guiding Plate.
2
420641308
Plug Screw M14 X 1.5.
20
420430220
O-Ring.
21
420440324
Flanged Torx Screw M6 X 45.
23
420264212
Solenoid Valve 3/2.
24
420939040
Spring Clip.
27
420651701
Retaining Plate.
28
420440147
Flanged Hex. Screw M6 X 12.
29
420450240
Gasket.
3
420232210
Center Pin.
30
420450310
Gasket.
31
420456290
Oil Pump Rotor.
32
420232731
Needle Pin.
33
205063044
Socket Head Screw M6 X 30.
34
420211124
Valve Housing.
35
420450290
Gasket.
36
420440207
Flanged Torx Screw M6 X 20.
37
420450032
Gasket Ass`y. Includes 37 to 38.
39
420440324
Flanged Torx Screw M6 X 45.
4
420841732
Torx Screw M8 X 18.
40
420440207
Flanged Torx Screw M6 X 20.
5
420212173
Pressure Sensor Housing.
6
420450310
Gasket.
7
420440207
Flanged Torx Screw M6 X 20.
8
420264166
Oil Pressure Switch Assy. Includes 8 to 9.
9
420450350
O-Ring.
