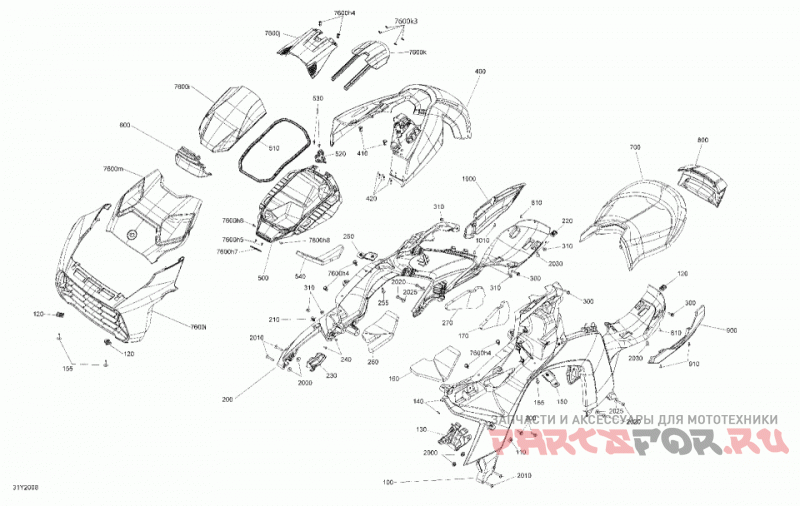

09- body - hood / grill / driver seat / upper body module

Can-Am 002 - RYKER STD 900 ACE

09- body - hood / grill / driver seat / upper body module

#

oem код

название

цена

100

LH Upper Frame.

LH Upper Frame.

1000

RH Side Cap.

RH Side Cap.

1010

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.

110

Dart Clip.

Dart Clip.

120

Panel Nut M6 X 1.0.

Panel Nut M6 X 1.0.

130

LH Holder (support).

LH Holder (support).

140

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.

150

Low Beam Support Assy. International.

Low Beam Support Assy. International.

155

Torx Screw M6 X 20. International.

Torx Screw M6 X 20. International.

160

Acoustic Foam Upper Front LH.

Acoustic Foam Upper Front LH.

170

Acoustic Foam Upper Rear LH.

Acoustic Foam Upper Rear LH.

200

RH Upper Frame.

RH Upper Frame.

2000

Large Shoulder Nut M6.

Large Shoulder Nut M6.

2010

Torx-truss Hex. Screw M6X35, Nylon Prot.

Torx-truss Hex. Screw M6X35, Nylon Prot.

2020

Torx Truss Screw M6 X 25.

Torx Truss Screw M6 X 25.

2025

Flat Washer, Stainless.

Flat Washer, Stainless.

2030

Torx Truss Screw M6 X 16.

Torx Truss Screw M6 X 16.

210

Dart Clip.

Dart Clip.

220

Panel Nut M6 X 1.0.

Panel Nut M6 X 1.0.

230

RH Holder (support).

RH Holder (support).

240

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.

250

Low Beam Support Assy. International.

Low Beam Support Assy. International.

255

Torx Screw M6 X 20. International.

Torx Screw M6 X 20. International.

260

Acoustic Foam Upper Front RH.

Acoustic Foam Upper Front RH.

270

Acoustic Foam Upper Rear RH.

Acoustic Foam Upper Rear RH.

300

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

310

Hex. Flanged Elastic Nut M6.

Hex. Flanged Elastic Nut M6.

400

Tank Cover, B-160 Deep Black. Canada/USA.

Tank Cover, B-160 Deep Black. Canada/USA.

400

Tank Cover, B-160 Deep Black. International.

Tank Cover, B-160 Deep Black. International.

410

Tuflok Plastic Rivet.

Tuflok Plastic Rivet.

420

Clip Connector.

Clip Connector.

500

Storage Compartment Front.

Storage Compartment Front.

510

Neoprene Seal Joint.

Neoprene Seal Joint.

520

Push Latch.

Push Latch.

530

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.

540

Acoustic Foam, Storage Compartment.

Acoustic Foam, Storage Compartment.

600

Center Front Fairing.

Center Front Fairing.

700

Driver Seat.

Driver Seat.

7600h4

Tuflok Plastic Rivet.

Tuflok Plastic Rivet.

7600h5

Torx-Truss Screw K40 X 10.

Torx-Truss Screw K40 X 10.

7600h7

Pivot.

Pivot.

7600h8

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.

7600i

Deep Black, Front Cover. Includes 7600i TO 7600i2.

Deep Black, Front Cover. Includes 7600i TO 7600i2.

7600i2

Decal Aesthetic Notice. Not shown.

Decal Aesthetic Notice. Not shown.

7600j

Upper Fairing, B-160 Deep Black.

Upper Fairing, B-160 Deep Black.

7600k

Fuel Tank Flap Assy.

Fuel Tank Flap Assy.

7600k3

Torx-Truss Screw K40 X 10.

Torx-Truss Screw K40 X 10.

7600l

Front Fascia, B-160 Deep Black.

Front Fascia, B-160 Deep Black.

7600m

Hood, B-160 Deep Black.

Hood, B-160 Deep Black.

7600n2

Waranty Registration Form. Not shown.

Waranty Registration Form. Not shown.

7600n5

Roadside Assistance Booklet. Not shown.

Roadside Assistance Booklet. Not shown.

800

Rear Spoiler.

Rear Spoiler.

810

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.

900

LH Side Cap.

LH Side Cap.

910

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.
