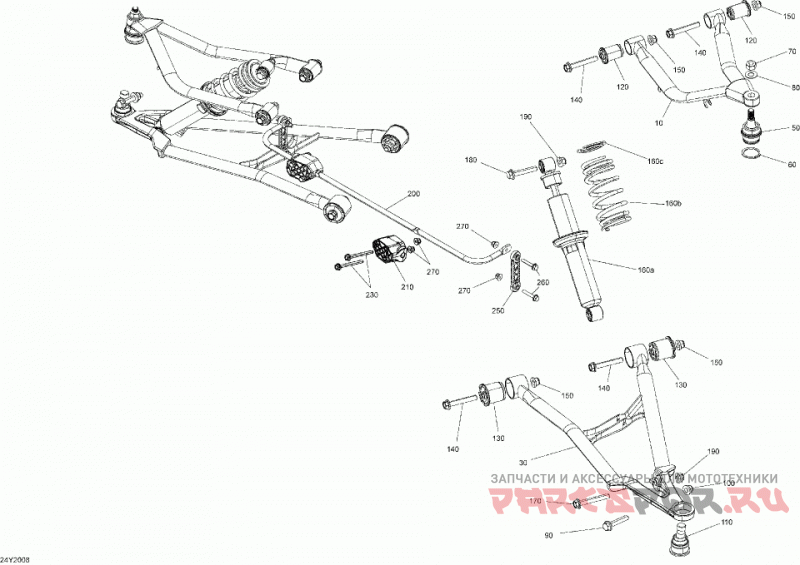

07- suspension, front - a arms - shocks

Can-Am 002 - RYKER STD 900 ACE

Can-Am
#oem кодцена
10
706202644
Arm Upper LH.
100
233201466
Flanged Elastic Nut M10.
110
706202508
Ball Joint.
120
706202549
Suspension Arm Bushing.
130
706203143
Suspension Arm Bushing.
140
207606556
Hex. Flanged Screw M10 X 65.
150
233201466
Flanged Elastic Nut M10.
160a
706002379
Shock.
160b
706202804
Suspension Spring.
160c
706203670
Spring Stopper.
170
207607056
Hex. Flanged Screw M10 X 70.
180
207605554
Hex. Flanged Screw M10 X 55.
190
233201466
Flanged Elastic Nut M10.
20
706202645
Arm Upper RH.
200
706202710
Sway Bar.
210
706202848
Bushing.
230
207666044
Hex. Flanged Screw M6 X 60.
250
505072204
Sway Bar Double Joint Link.
260
207663554
Screw Hex Flange M6 X 35.
270
233261494
Hex. Elastic Flanged Nut M6.
30
706202648
Arm Lower LH.
40
706202649
Arm Lower RH.
50
706203147
Ball Joint.
60
293370035
Circlip.
70
232521464
Hex Elastic Nut M12 X 1.25.
80
250200086
Flat Washer.
90
207605554
Hex. Flanged Screw M10 X 55.
