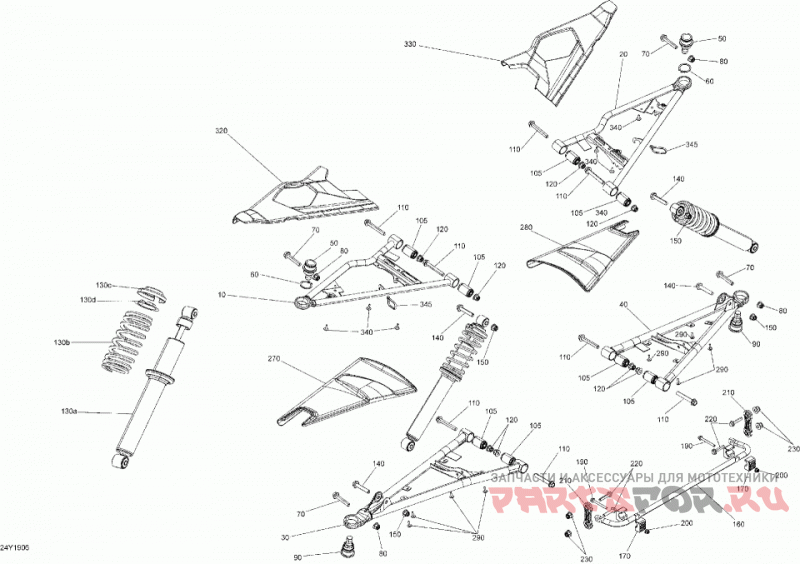

07- suspension, front

Can-Am 003 - RT LTD SE6

Can-Am
#oem кодцена
10
706203433
Upper Suspension Arm LH
20
706203435
Upper Suspension Arm RH
30
706201733
Lower Suspension Arm LH
40
706201734
Lower Suspension Arm RH
50
706202507
Шаровая опора
60
293370035
Пружинное стопорное кольцо
70
207605554
Hex. Flanged Screw M10 X 55
80
233201466
Flanged Elastic Nut M10
90
706202508
Шаровая опора
105
706201519
Suspension Arm Bushing
110
207607056
Hex. Flanged Screw M10 X 70
120
233201466
Flanged Elastic Nut M10
130a
706001549
Shock
130b
706001830
Пружина
130c
706200881
Пружина
130d
706200785
Крышка
140
207605554
Hex. Flanged Screw M10 X 55
150
233201466
Flanged Elastic Nut M10
160
706202800
Sway Bar
170
706201391
Stabilizer Bushing
190
250000778
Screw-Hex.Flange M6 X 60
200
233261466
Hex. Flanged Elastic Nut M6
210
706200671
Tie Rod, Double Jointed
220
207684054
Hex. Flanged Screw M8 X 40
230
233281464
Elastic Flange Nut M8
270
706201319
LH Lower Air Deflector
280
706201320
RH Lower Air Deflector
290
250000725
Screw M4 X 16
320
706201321
Black LH Upper Air Deflector
330
706201322
Black RH Upper Air Deflector
340
250000725
Screw M4 X 16
345
293750008
Tie-Rap 350 mm
