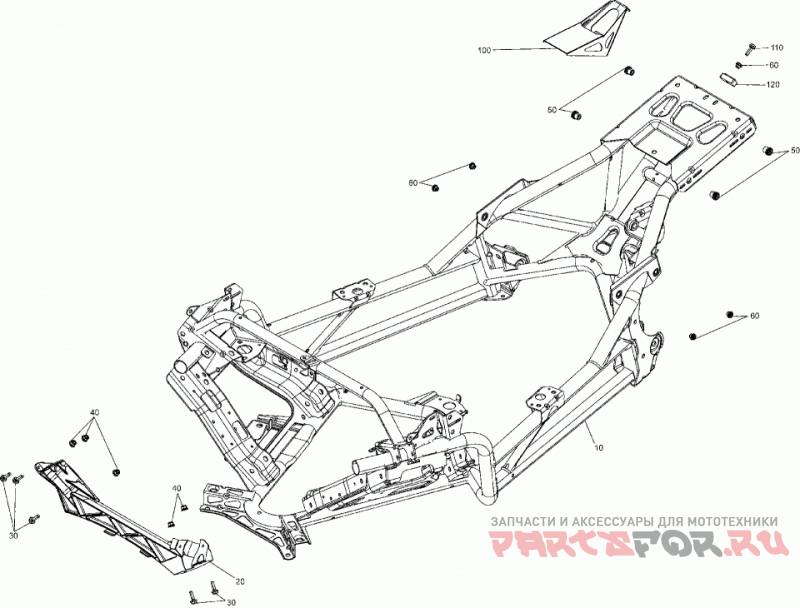

09- frame - system
Can-Am 001 - RYKER STD 600 ACE
| # | oem код | название | цена |
|---|---|---|---|
10 | 705207245 Рама | Рама | |
20 | 705206641 Upper Front Cross Member | Upper Front Cross Member | |
30 | 207662044 Hex. Flanged Screw M6 X 20 | Hex. Flanged Screw M6 X 20 | |
40 | 233261414 Hex. Flanged Elastic Nut M6 x 1.0 | Hex. Flanged Elastic Nut M6 x 1.0 | |
50 | 293450307 Insert, Half Hex Body M8 x 1.25 | Insert, Half Hex Body M8 x 1.25 | |
60 | 250100199 Insert, Half Hex Body M6 x 1.0 | Insert, Half Hex Body M6 x 1.0 | |
100 | 705208075 Support, Fuel Tank | Support, Fuel Tank | |
110 | 207562054 Flanged Hex. Screw S.GRIP M6 X 20 | Flanged Hex. Screw S.GRIP M6 X 20 |
