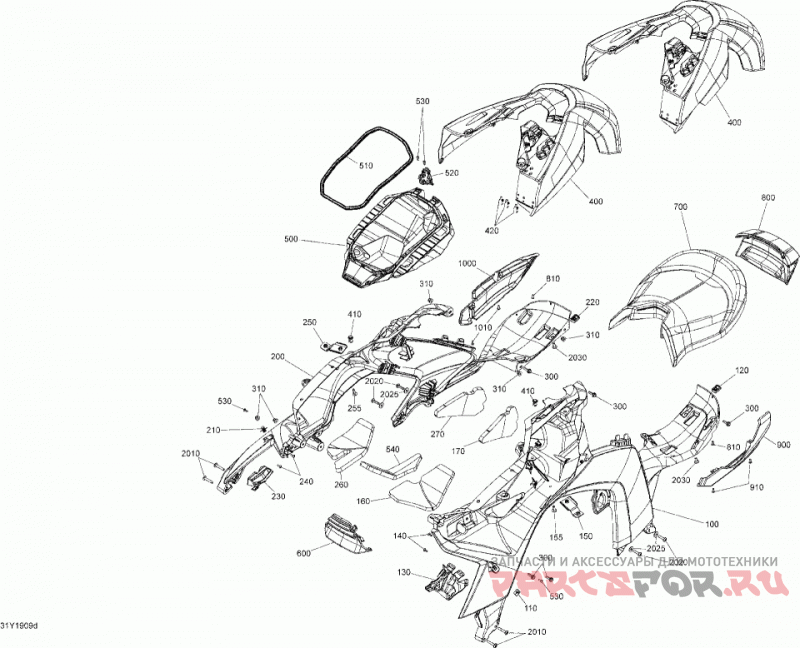

09- body - driver seat / upper body module

Can-Am 001 - RYKER STD 600 ACE

Can-Am
#oem кодцена
100
705205817
LH Upper Frame
110
293730080
Dart Clip
120
250100208
Panel Nut M6 X 1.0
130
705013415
LH Holder (support)
140
250000577
Torx Truss Screw K40 X 12
150
705207855
Low Beam Support Assy
155
250000722
Torx Screw M6 X 20
160
705013944
Acoustic Foam Upper Front LH
170
705013946
Acoustic Foam Upper Rear LH
200
705205818
RH Upper Frame
210
293730080
Dart Clip
220
250100208
Panel Nut M6 X 1.0
230
705013416
RH Holder (support)
240
250000577
Torx Truss Screw K40 X 12
250
705207855
Low Beam Support Assy
255
250000722
Torx Screw M6 X 20
260
705013945
Acoustic Foam Upper Front RH
270
705013947
Acoustic Foam Upper Rear RH
300
207662054
Hex. Flanged Screw M6 X 20
310
233261466
Hex. Flanged Elastic Nut M6
400
705010726
Tank Cover, B-160 Deep Black
400
705013589
Tank Cover, B-160 Deep Black
410
293150230
Tuflok Plastic Rivet
500
705205819
Storage Compartment Front
510
708200794
Neoprene Seal Joint
520
705007380
Push Latch
530
250000577
Torx Truss Screw K40 X 12
540
705013943
Acoustic Foiam, Storage Compartment
600
705013110
Front Fairing
700
708002411
Driver Seat
800
705013202
Rear Spoiler
810
250000577
Torx Truss Screw K40 X 12
900
705013413
LH Side Cap
910
250000577
Torx Truss Screw K40 X 12
1000
705013414
RH Side Cap
1010
250000577
Torx Truss Screw K40 X 12
2000
705014119
Large Shoulder Nut M6
2010
250000867
Torx-truss Hex. Screw M6X35, Nylon Prot
2020
250000807
Torx Truss Screw M6 X 25
2025
234062670
Flat Washer, Stainless
2030
250000721
Torx Truss Screw M6 X 16
