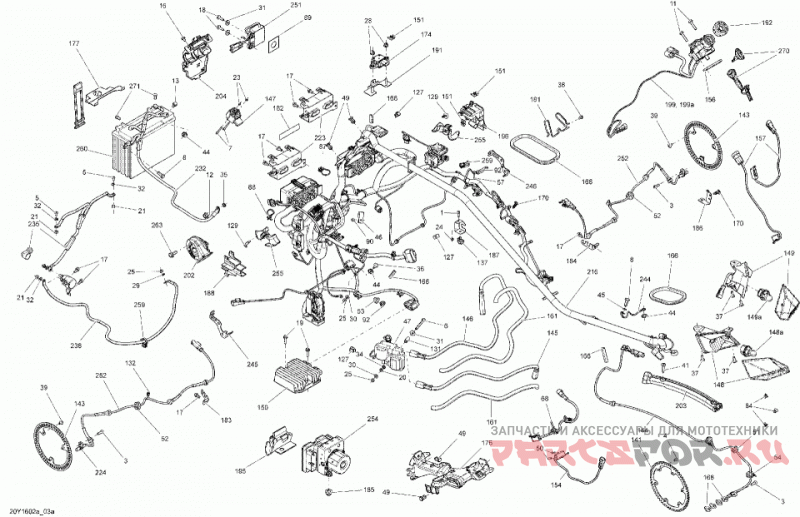

10- electrical system - general

Can-Am ST

Can-Am
#oem кодцена
1
205051644
Socket Screw M5 X 16
3
205561660
Socket Head Screw M6 X 16, Scotch Grip
4
205851036
Socket Head Screw M5 X 10
5
205961060
Socket Head Screw M6 X 10, Scotch Grip
6
207065544
Hex. Screw M6 X 55
7
207144044
Hex. Cap Screw
8
207382060
Hex. Screw M8 X 20, Scotch Grip
11
207563044
Hex. Flanged Screw M6 X 30, Scotch Grip
12
207581244
Hex. Flanged Screw M8 X 12, Scotch Grip
13
207661644
Hex. Flanged Screw M6 X 16
16
210261050
Винт
17
210261250
Hex. Flanged Screw M6 X 12
18
210262050
Washer Head Hexagonal Screw
19
210262550
Hex. Flanged Forming Screw M6 X 25
20
232061414
Hex. Nut M6
21
232061600
Hex. Nut M6
23
232541484
Elastic Stop Nut M4
24
232551600
Hex. Elastic Nut M5
25
232561434
Elastic Stop Nut M6
28
233261414
Hex. Flanged Elastic Nut M6
29
234061600
Flat Washer M6, Stainless
30
234061670
Flat Washer 6 mm
31
234062410
Flat Washer 6 mm
32
234161601
Lock Washer Helical M6
34
234461608
External Serrated Lock Washer 6 mm
35
234481608
Serrated Lock Washer 8 mm
36
250000348
Torx Truss Screw M6 X 16
37
250000721
Torx Screw
38
250000742
Torx Screw M5 X 14
39
250000747
TORX-TRUSS M/S M6 X 10
41
250000843
Torx Truss Screw M6 X 30
44
250200041
Lock Washer Serrated M6
45
250200111
Шайба
46
270000141
Зажим
47
278001546
Катушка зажигания
49
293150230
Tuflok Plastic Rivet
50
293150150
Pop Rivet
51
293720084
Уплотнитель резиновый
52
293720095
Уплотнитель резиновый
53
293730040
Mount Dart
54
293750001
Tie-Rap 94 mm
57
293750008
Tie-Rap 350 mm
68
293750009
Tie-Rap 173 mm
84
293750044
Tie Rap Mount
87
293750063
Clip Tie-Rap
89
293830091
Rubber Bumper
90
390402400
Pop Rivet 3/16
92
414115200
Стяжка 180мм
127
414227300
Зажим
129
414745900
Tuflock Phillips Plastic Screw
131
512059812
Проставка
132
515175220
Tie Rap
137
515176795
Зажим
141
705601372
Sensor Wheel
143
705601512
Front Sensor Wheeel
144
706202361
Speed Sensor
147
219800354
Steering Position Sensor
150
710001191
Реле регулятора
151
710001222
Lock
156
710001365
Switch Support
161
415079900
Tubing 10 mm
166
271001530
Trim
168
710002023
Регулировочная прокладка
170
710002033
Держатель
174
710002677
Yaw Rate Sensor
176
710002860
Rear Support
177
710002893
Battery Holder
181
710003017
Grommet Spindle
182
710003077
R/L Label Decal
183
710003156
Speed Sensor Holder
184
710003157
Speed Sensor Holder
185
710003279
Damper Shock
186
710003305
Connectors Bracket
187
710003306
Knock Holder Support
188
710003322
Connector Support
191
710003494
YRS Holder
192
710003594
Switch Cover
195
710003996
VCM Harness Protector
196
710004086
Connector Support
199
710005640
Ignition Switch
202
710004229
Сигнал
203
710004281
Протектор
204
710004308
Wire Support
223
710004472
Fuse Holder Support
232
710004733
Cable Neg
235
710004734
Cable Positive
238
710004735
Start Cable
244
710004849
Tank Cable
245
710004860
Support-Wire LH
246
710004861
Support-Wire RH
251
710004916
Dess Module
254
219800375
VCM Dry Prog
255
710004931
Harness Holder
259
710005037
Зажим
260
410922962
Battery, 12 Volts, 21 Amperes
263
207582044
Hex. Flanged Screw M8 X 20, Scotch Grip
269
415129261
Bulb 12V 10W
269
520000758
Bulb
270
710004408
Ignition Key Kit
199a
219800373
DESS Antenna
