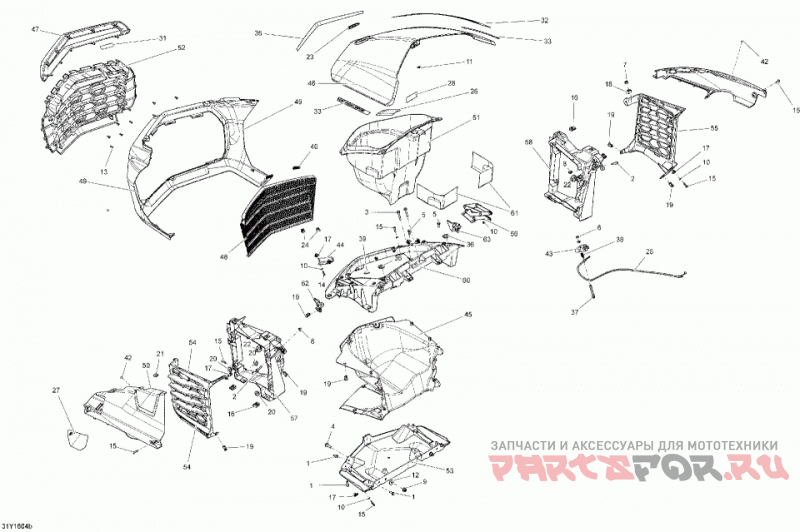

09- body and accessories - front storage - package special

Can-Am F3

Can-Am
#oem кодцена
1
207662034
Hex. Flanged Screw M6 X 20
2
207663054
Hex. Flanged Screw M6 X 30
3
207663544
Hex. Flanged Screw M6 X 35
4
207682534
Hex. Flanged Screw M8 X 25
5
210262050
Washer Head Hexagonal Screw
6
232180600
Hex. Jam Nut M8
7
232581200
Hex. Elastic Nut M8, Brass
8
233261414
Hex. Flanged Elastic Nut M6
9
233281434
Hex. Flanged Elastic Nut M8
10
234051670
Flat Washer M5
11
234081410
Flat Washer 8 mm
12
234082430
Flat Washer M8
13
250000577
Torx Truss K40 X 12
14
250000578
Torx Truss Screw M5 X 16
15
250000715
Torx Truss Screw M5 X 20
16
250100208
Panel Nut M6 X 1
17
250100176
Panel Nut M5 X 0.8
18
269501943
Elastic Nut Housing M8
19
293150230
Tuflok Plastic Rivet
20
709000582
Уплотнитель резиновый
21
293830143
Rubber Pad
22
414916600
Nylon Cap
23
516008739
BRP Logo, 68 mm
24
517302785
Зажим
25
517305742
Hood Cable
26
704904936
Notice Decal, Cleaning
27
704907625
-Decal, Tire And Loading
28
704905122
Load Decal
31
704905259
Logo S
32
704905403
Can-Am Hood Decal
33
704905453
Hood Decal Special Series
35
704905612
Наклейка
36
705000321
Oval Washer
37
705002223
Lug
38
219400242
Пружина
40
705004838
Flat Clip
42
705006634
Polyurethane Stopper
43
705007379
Защёлка
44
708200673
LH Hinge Hood
45
708200362
Front Air Duct Module
46
708200544
Hood
47
708200468
Front Mouth
48
708200393
Front Deflector Grill
49
708200693
Monolith Black Front Fascia
50
708200559
Rh Vent Panel
50
708200558
Lh Vent Panel
51
708200403
Storage Bin
52
708200404
Передняя решетка
53
708200405
Front Skid Plate
54
708200406
LH Front Lateral Vent
55
708200407
RH Front Lateral Vent
56
708200674
RH Hinge Hood
57
708200437
LH Breakaway Lateral Tower Leg
58
708200438
RH Breakaway Lateral Tower Leg
60
708200446
Sub-Frame Type Structure
61
708200490
Heat Shield Sheet
62
708200493
LH Front Union Link
63
708200494
RH Front Union Link
