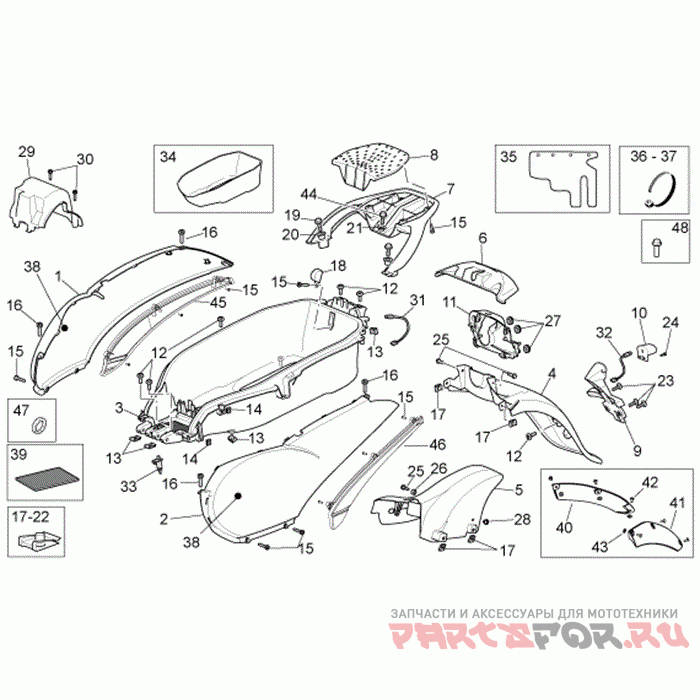

Задняя часть кузова

Aprilia Scarabeo 300 Light E3

Aprilia
#oem кодцена
1
AP8269156
Rh Rear Fairing, Black Nd
1
AP8269172
Rh Rear Fairing, Grey Nd
1
AP8269154
Rh Rear Fairing, White Nd
2
AP8269157
Lh Rear Fairing, Black Nd
2
AP8269173
Lh Rear Fairing, Grey Nd
2
AP8269155
Lh Rear Fairing, White Nd
3
AP8179129
Helmet Compartment
4
AP8179130
Number Plate Holder, Grey
5
852338
Rear Mudguard, Black
6
AP8184716
Rear Fairing, Grey
7
89089700XB4
Luggage Rack, Black
7
89089700XET
Luggage Rack, Grey
7
89089700XN2
Luggage Rack, White
8
AP8184715
Luggage Rack Cover, Grey
9
AP8154009
Plate Light Support
10
AP8127098
Number-plate Light
11
AP8154029
Rear Headlight Supp.
12
AP8152246
Винт 6x16
13
AP8201763
Screw Clip D5, 5*
14
AP8102381
Clip M4
15
AP8150413
Inox Self Tapping Screw 3, 9x14
16
AP8150509
Self-tap Screw 5x14
17
254485
Клипс
18
AP8212733
Light Window
19
AP8150170
Hex Socket Screw M8x25*
20
AP8161202
T Bush
21
851947
Втулка
22
AP8102375
Clip M5*
23
AP8152298
Screw W/ Flange M5x16*
24
AP8150509
Self-tap Screw 5x14
26
AP8120253
Проставка
27
AP8112600
Резинка
28
231590
Зажим
29
AP8179121
Battery Cover, Black
30
AP8152351
Screw 4, 2x16*
31
AP8212652
Top Box Light Cable
32
AP8124976
Plate Light Wiring
33
AP8212696
Top Box Light Switch
34
851954
Casing
35
853000
Защита
36
AP8120416
Black Hose 178x4* 125-200
37
AP8120422
Black Hose 98x2*
38
893815
Rear Fairing Decal "scarabeo"
39
AP8117125
Губка
40
CM220902
Rh Splash Guard
41
CM220901
Lh Splash Guard
42
AP8144109
Fairing Holder Pin
43
AP8150450
Washer For Shafts D5
44
AP8150107
Hex Socket Screw M8x30*
45
AP8179947
Rh Rear Panel
46
AP8179946
Lh Rear Panel
47
AP8134640
Air Box Spacer
48
AP8152279
Винт 6x20
