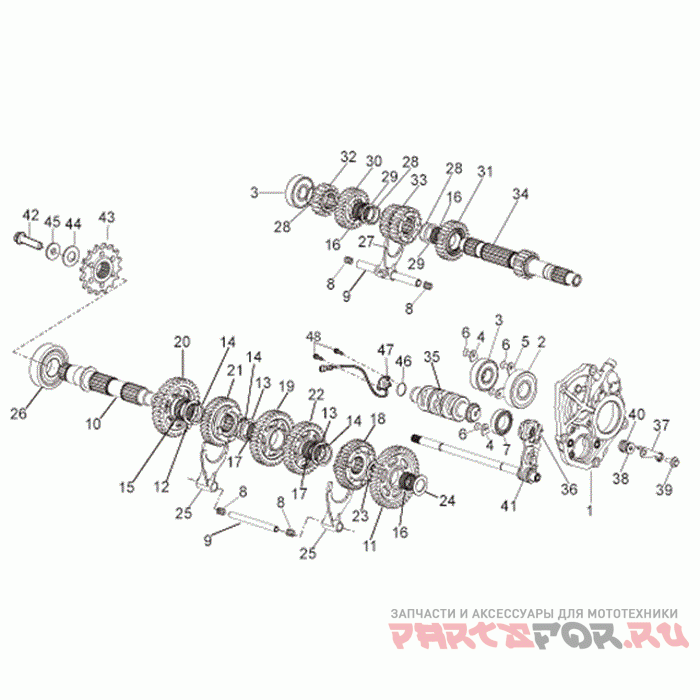

Коробка передач

Aprilia RSV 1000 4V R

Aprilia
#oem кодцена
1
857268
Support Cambio
2
857272
Ball Bearing 25x62x17
3
857273
Подшипник
4
AP9150145
Check Bearing Plate
5
857271
Check Bearing Plate
6
AP8152166
Screw M6x16*
7
857250
Ball Bearing 25x42x9
8
857175
Пружина
9
857284
Fork Shaft
10
857236
Driven Shaft
11
857237
1st Wheel Gear Z=39
12
857308
Washer 30x40x1, 5
13
857247
Clearance Washer
14
857248
Circlip D30
15
857309
Roller Cage 30x35x13
16
857233
Roller Cage 24x28x13
17
857244
Roller Cage 26x30x15, 6
18
857241
5th Wheel Gear Z=34
19
857239
3rd Wheel Gear Z=34
20
857238
2nd Wheel Gear
21
857242
6th Wheel Gear Z=33
22
857240
4th Wheel Gear Z=32
23
857246
Washer 24x35x1, 5
24
857245
Washer 20, 1x33, 5x2, 5
25
857328
Вилка
26
857134
Ball Bearing 30x72x19
27
857185
Вилка
28
857232
Washer For Shafts
29
857234
Clearance Washer
30
857231
6th Pinion Gear Z=27
31
857230
5th Pinion Gear Z=26
32
857459
2nd Pinion Gear Z=16
33
857229
3rd-4th Pinion Gear Z=20/z=22
34
857458
Primary Gear Shaft
35
857251
Shift Cam
36
857123
Index Washer
37
857274
Index Assy. Lever
38
AP9150051
Washer D6, 3x18x1
39
AP9150006
Screw W/ Flange M6x15
40
857278
Пружина
41
857253
Gear Shaft+spring Cpl.
42
AP8152318
Screw W/ Flange M10x35
43
890827
Pinion Z=16
44
854909
Пружина
45
854951
T Bush
46
857494
Уплотнительное кольцо
47
857265
Gear Position Sensor
48
AP8152280
Screw W/ Flange M6x25*
