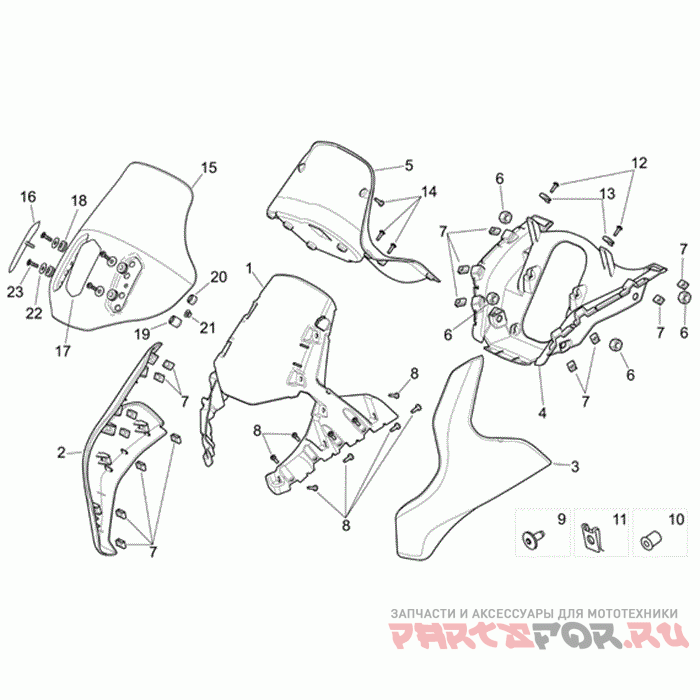

Передний корпус - облицовка 1

Aprilia Pegaso Strada-Trail 650 IE

Aprilia
#oem кодцена
1
AP8178787
Central Windshield
2
AP8184376
Rh Windshield, Black Rx
2
AP8184819
Rh Windshield, Black Sx
2
AP8184831
Rh Windshield, Black Fac
2
AP8178788
Rh Windshield, Grey Rx
2
AP8184429
Rh Windshield, Grey Sx
2
AP8184837
Rh Windshield, White Sx
2
AP8184436
Rh Windshield, Yellow Sx
3
AP8184832
Lh Windshield, Black Fac
3
AP8184377
Lh Windshield, Black Rx
3
AP8184820
Lh Windshield, Black Sx
3
AP8178789
Lh Windshield, Grey Pm
3
AP8184430
Lh Windshield, Grey Sx
3
AP8184838
Lh Windshield, White Sx
3
AP8184437
Lh Windshield, Yellow Sx
4
AP8178790
Under Dash, Black
5
AP8178792
Dashboard Panel
6
AP8150519
Square Nut M6
7
AP8102381
Clip M4
8
AP8150493
Hex Socket Screw M4x16
9
AP8152298
Screw W/ Flange M5x16*
10
AP8120531
Rubber W/ Insert *
11
AP8102375
Clip M5*
12
AP8152351
Screw 4, 2x16*
13
AP8144599
Screw Clip
14
AP8150522
Screw 4, 2x16
15
AP8178791
Windshield Rx
16
AP8154037
Rh Clamp Rx
17
AP8154038
Lh Clamp Rx
18
AP8120405
Резинка
19
AP8161106
Spacer L=19, 5 Rx
20
AP8161107
Spacer L=14, 5 Rx
21
AP8152306
Self-locking Nut M5*
22
AP8150013
Washer 5, 5x15x1, 6*
23
AP8225369
Hex Socket Screw M5x35 Rx
