Передняя облицовка для мотоциклов Aprilia NA 850 Mana GT (2009)

Москва и регионы России

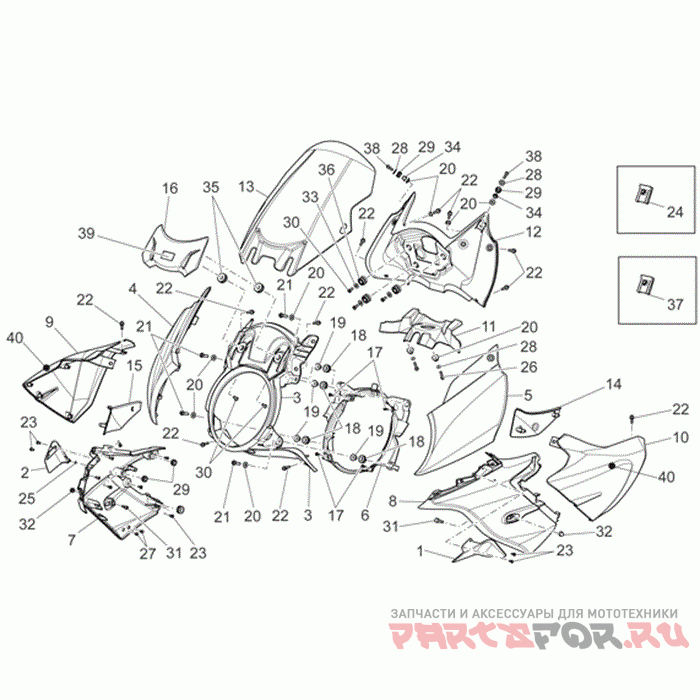

Передняя облицовка

Aprilia NA 850 Mana GT

Передняя облицовка

#

oem код

название

цена

1

Lh Baffle

Lh Baffle

2

Rh Baffle

Rh Baffle

3

Front Shield, Grey

Front Shield, Grey

4

Rh Pad, Black

Rh Pad, Black

4

Rh Pad, Blue

Rh Pad, Blue

4

Rh Pad, White

Rh Pad, White

5

Lh Pad, Black

Lh Pad, Black

5

Lh Pad, Blue

Lh Pad, Blue

5

Lh Pad, White

Lh Pad, White

6

Taillight Support

Taillight Support

7

Rh Lat.fairing, Grey

Rh Lat.fairing, Grey

8

Lh Lat.fairing, Grey

Lh Lat.fairing, Grey

9

Rh Air Duct, Black

Rh Air Duct, Black

9

Rh Air Duct, Blue

Rh Air Duct, Blue

9

Rh Air Duct, White

Rh Air Duct, White

10

Lh Air Duct, Black

Lh Air Duct, Black

10

Lh Air Duct, Blue

Lh Air Duct, Blue

10

Lh Air Duct, White

Lh Air Duct, White

11

Steering Lock Cover

Steering Lock Cover

13

Стекло

Стекло

14

Lh Cover

Lh Cover

15

Правая Крышка

Правая Крышка

16

Крышка

Крышка

17

Inox Self Tapping Screw 3, 9x14

Inox Self Tapping Screw 3, 9x14

18

Rubber Spacer 10x20x10

Rubber Spacer 10x20x10

19

Втулка

Втулка

20

Bush 125-200

Bush 125-200

3-4

21

Screw W/ Flange M6x25*

Screw W/ Flange M6x25*

22

Screw W/ Flange M5x12*

Screw W/ Flange M5x12*

23

Self-tapping Screw

Self-tapping Screw

24

Clip M5*

Clip M5*

25

Шайба

Шайба

26

Hex Socket Screw M6x35*

Hex Socket Screw M6x35*

27

Mushroom Rubber

Mushroom Rubber

T-v-w-x

28

Washer 6, 4x15x1

Washer 6, 4x15x1

29

Резинка

Резинка

30

Self-tap Screw 5x14

Self-tap Screw 5x14

31

Винт M6x16

Винт M6x16

32

Stainless Cap Nut M6

Stainless Cap Nut M6

33

Washer 15x5, 5x1, 2*

Washer 15x5, 5x1, 2*

34

Втулка

Втулка

35

Резинка

Резинка

36

Резинка

Резинка

37

Клипс

Клипс

38

Hex Socket Screw M6x25*

Hex Socket Screw M6x25*

39

"aprilia" Dataplate

"aprilia" Dataplate

40

Air Duct, Decal Aprilia

Air Duct, Decal Aprilia
