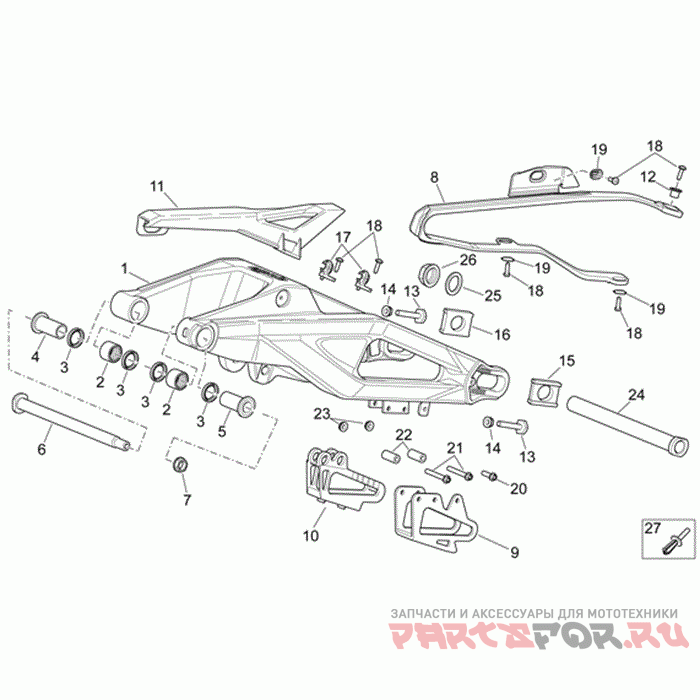

Бугель

Aprilia RXV-SXV 450-550 (Vdb Merriman)

Aprilia
#oem кодцена
1
855263
Swing Arm Mr
2
AP9100202
Roller Cage 22x29x30
3
AP9100203
Gasket Ring 22x29x4
4
AP9100952
Piston Pin L=47, 5
4
853545
Piston Pin L=47, 5 Titan Vdb
5
853546
Piston Pin L=59, 5 Titan Vdb
5
AP9100952
Piston Pin L=47, 5
6
AP9100123
Rear Swing Arm Pin M14 L=244
6
AP9100264
Rear Swing Arm Pin M14 L=256 Sx
7
AP8152244
Dax Flange Nut M14x1, 5
8
AP9100061
Sliding Block
9
853697
Chain Guide Vdb
9
AP9100060
Chain Guide Rally-rx-sx
10
AP9100109
Chain Guide Plate
11
AP9100435
Chain Guard Rally-rx-sx
12
AP9100616
Bush Rally-rx-sx
13
853549
Chain Tens.adjuster Screw Vdb
13
AP8152305
Chain Tens.adjuster Screw
14
AP8152262
Low Nut M8*
14
853550
Low Nut M8 Titan Vdb
15
853802
Rh Chain Guide Plate Vdb
15
AP8144444
Rh Chain Guide Plate
16
AP8144443
Lh Chain Guide Plate
16
853659
Lh Chain Guide Plate Vdb
17
AP9100565
Brake Hose Cable Guide
18
AP8150515
Self-tapping Screw M5
19
AP8234020
Cup For Shoe
20
AP8152277
Винт M6x12 (миним.заказ 10шт.)
20
853551
Screw W/ Flange M6x12* Vdb
21
AP9100433
Screw W/ Flange M6x50 Sx
21
853547
Screw W/ Flange M6x50 Titan Vdb
22
AP9100287
Втулка
23
853548
Self-locking Nut M6x1titan Vdb
23
AP9100434
Self-locking Nut M6x1
24
AP9100270
Rear Wheel Spindle M25 L=318, 5 Sx
24
AP9100221
Rear Wheel Spindle M25 L=266, 5 Rally-rx
25
AP8152323
Washer 25, 2x36x1
26
AP8152324
Wheel Spindle Nut M25x1, 5
27
AP8202058
Plastic Rivet, Black
