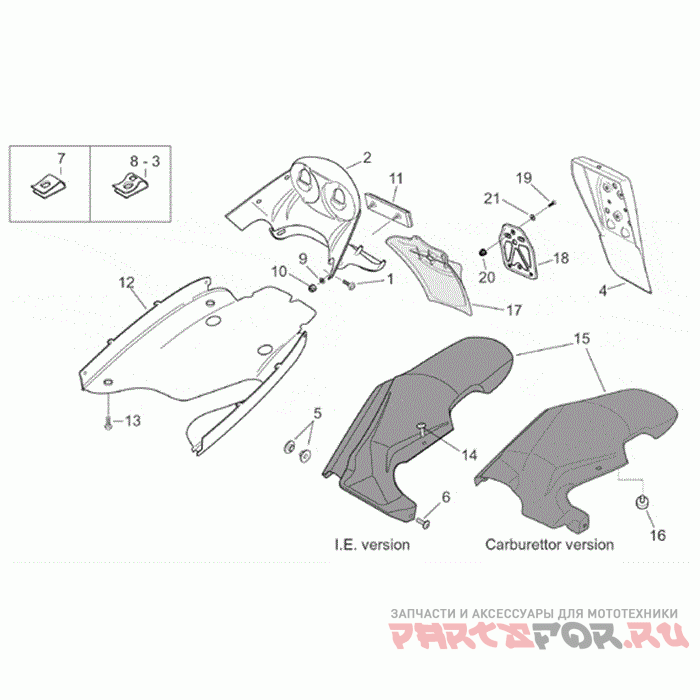

Задняя часть кузова 3

Aprilia SR 50 H2O (IE+Carb.)

Aprilia
#oem кодцена
1
AP8152298
Screw W/ Flange M5x16*
2
AP8226627
Number Plate Holder, Black 45km
3
AP8102376
Clip M6*
4
AP8226626
Rear Splash Guard, Black 45km
5
AP8221218
Mudguard Bush
6
AP8152298
Screw W/ Flange M5x16*
7
AP8201763
Screw Clip D5, 5*
8
AP8102375
Clip M5*
9
AP8150158
Washer 4, 3x9x0, 8*
10
AP8150204
Low Self-locking Nut M4*
11
AP8112916
Задний рефлектор
12
AP8249762
Fuel Tank Prot., Met.black
12
AP8258562
Grey Fuel Tank Cover
12
AP8258790
Gold Fuel Tank Cover
13
AP8152298
Screw W/ Flange M5x16*
14
AP8152302
Screw W/ Flange M5x12*
15
AP8226790
Rear Mudguard Carb
15
AP8226762
Rear Mudguard Ie
16
AP8144081
Side Panel Support Rubber
17
AP8149303
Plate Light Support, Black
18
AP8249558
Number Plate Support
19
AP8152043
Hex Socket Screw M4x10*
20
AP8150204
Low Self-locking Nut M4*
21
AP8150158
Washer 4, 3x9x0, 8*
