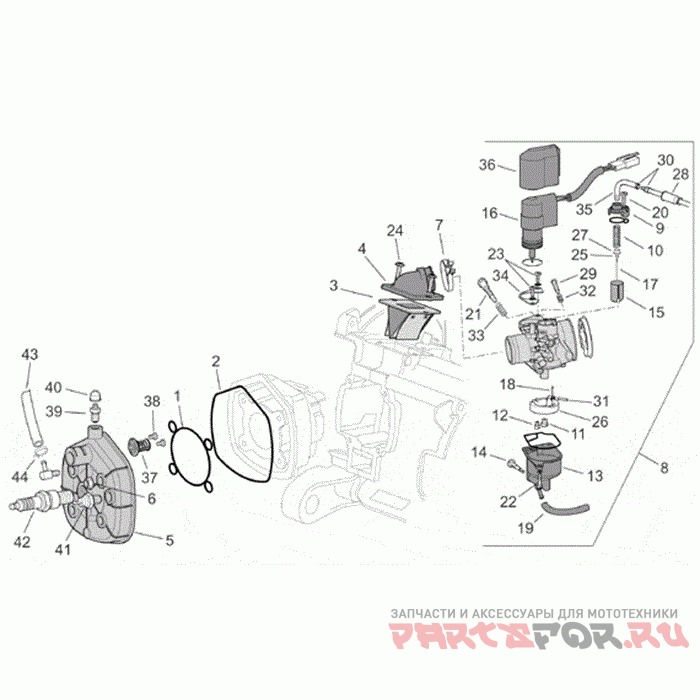

Головка цилиндров / Карбюратор для мотоциклов Aprilia SR 50 H2O (IE+Carb.) (2007)

Москва и регионы России

Головка цилиндров / Карбюратор

Aprilia SR 50 H2O (IE+Carb.)

Головка цилиндров / Карбюратор

#

oem код

название

цена

1

Inner Gasket Head

Inner Gasket Head

2

Outer Gasket Head

Outer Gasket Head

3

Reed Valve Assy Carb

Reed Valve Assy Carb

4

Intake Manifold

Intake Manifold

5

Cylinder Head Carb

Cylinder Head Carb

6

Nut M6

Nut M6

7

Зажим

Зажим

8

Carburettor Cpl. Carb

Carburettor Cpl. Carb

9

Gas Valve Cover

Gas Valve Cover

10

Gas Valve Spring

Gas Valve Spring

11

Main Jet 53

Main Jet 53

12

Idle Jet 32

Idle Jet 32

13

Float Chamber Cpl.

Float Chamber Cpl.

15

Gas Valve

Gas Valve

18

Fuel Closing Needle

Fuel Closing Needle

19

Float Chamber Dump Pipe L=130

Float Chamber Dump Pipe L=130

25

Прокладка

Прокладка

26

Поплавок

Поплавок

27

Conical Pin Clip

Conical Pin Clip

28

Throttle Cable Cap

Throttle Cable Cap

30

Wire Tensioner Screw Carb

Wire Tensioner Screw Carb

31

Float Pin

Float Pin

34

Пластина

Пластина

35

Трубка

Трубка

36

Starter Cover

Starter Cover

37

Thermostat 60? Carb

Thermostat 60? Carb

38

Self-tapping Screw

Self-tapping Screw

39

Bleed Valve

Bleed Valve

40

Крышка

Крышка

41

Thermistor

Thermistor

42

Spark Plug Champion Rn1c Carb

Spark Plug Champion Rn1c Carb

44

Hose Clamp 250

Hose Clamp 250
