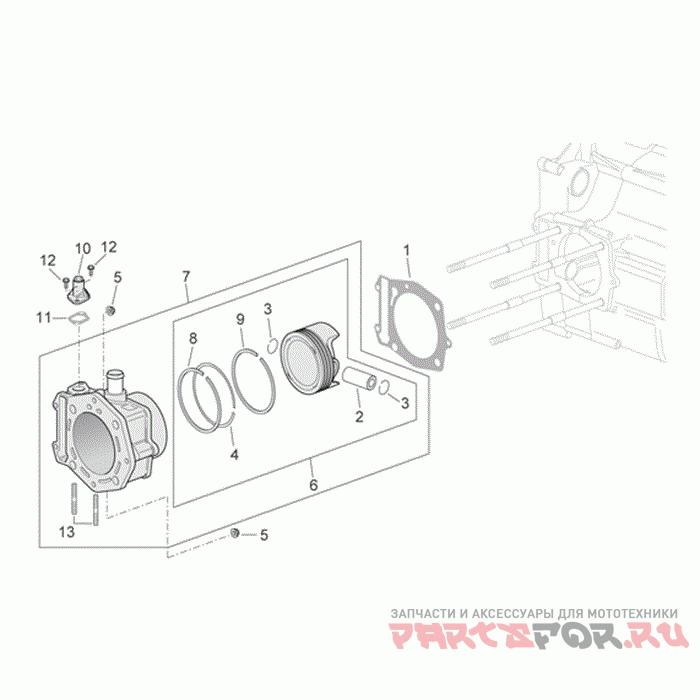

Цилиндр

Aprilia Scarabeo 400-492-500 Light

Aprilia
#oem кодцена
1
830275
Cylinder Base Gasket 0, 8 400
1
830277
Cylinder Base Gasket 0, 4 400
1
830276
Cylinder Base Gasket 0, 6 400
2
827820
Палец поршневой
3
828116
Стопорное кольцо
4
845313
Oil Scraper Ring D.85, 8 400
4
827706
Oil Scraper Ring D.92 500
4
833451
Oil Scraper Ring D.92 492
5
288245
Flanged Nut M6
6
8452980003
Piston Assy Cat3 400
6
8452980002
Piston Assy Cat2 400
6
8452980001
Piston Assy Cat1 400
6
8452980004
Piston Assy Cat4 400
6
8328120002
Piston Assy Cat2 500
6
8328120001
Piston Assy Cat1 500
6
8328120004
Piston Assy Cat4 500
6
8328120003
Piston Assy Cat3 500
6
8738110001
Piston Assy Cat.1 492
6
8738110002
Piston Assy Cat.2 492
6
8738110003
Piston Assy Cat.3 492
6
8738110004
Piston Assy Cat.4 492
7
873812
Cylinder With Piston 492
7
832811
Cylinder With Piston 500
7
845297
Cylinder With Piston 400
8
845312
Ring D.85, 8 400
8
832770
Ring 500
8
833450
Ring 492
9
833452
Oil Scraper Ring 492
9
827707
Oil Scraper Ring D.92x2, 5 500
9
845314
Oil Scraper Ring D.85,8x2, 400
10
82650R
Chain Tensioner Assy.
11
847928
Прокладка
12
AP8550557
Screw W/ Flange M6x16
13
AP8560061
Stud Bolt M8x3x46
