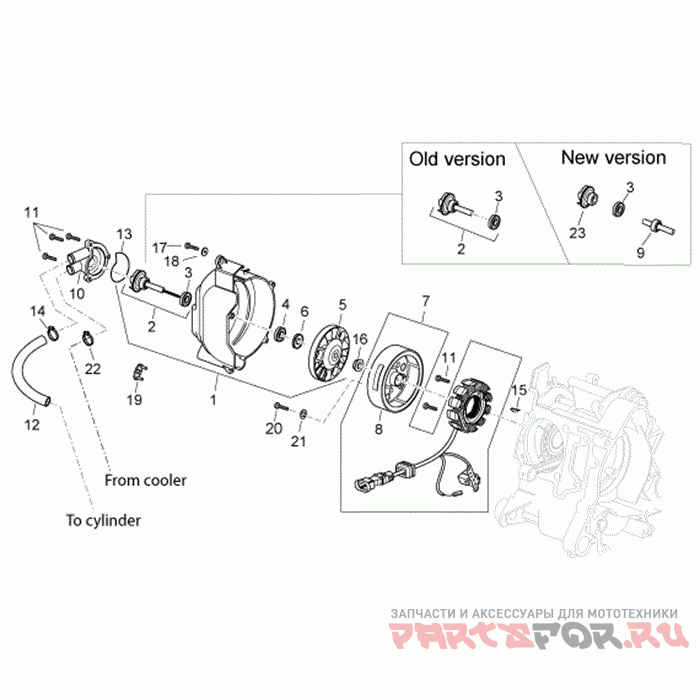

Ignition unit i

Aprilia Atlantic 125-200-250

Aprilia
#oem кодцена
1
AP8580190
Flywheel Cover Cpl. 125-200
2
AP8580143
Water Pump Shaft Assy. 250-old
3
AP8590055
Gasket Ring 250-new
3
AP8560018
Oil Seal 250-old
4
AP8560020
Insert 250
5
AP8580104
Pump Impeller Drive Key 125-200
6
AP8580134
Bearing 22x8x7 125-200
6
AP8577012
Bearing 28x8x9 250
7
AP8590002
Cdi Magneto Assy 200
7
AP8580250
Cdi Magneto Assy 125
8
AP8590003
Rotor Cpl. 200
8
AP8580093
Rotor Cpl. 125
9
AP8590054
Water Pump Shaft Assy. 125-200-new
10
AP8580094
Water Pump Cover 250
11
AP8551060
Screw M5x22
12
AP8575034
Pump-cylinder Hose 200-al-spa02-spc00
12
AP8590052
Water Pipe 200-gh
12
AP8580032
Water Pipe 200-al-spa01
13
AP8580084
O-ring 250
14
AP8580217
Hose Clamp 250
15
AP8550039
Transmission Key 125-200
16
AP8550134
Nut Cpl. 125-200
17
AP8580161
Screw 125-200
18
AP8550477
Washer 125-200
19
AP8580116
Plug 125-200
20
AP8580163
Special Screw 125-200
21
AP8580162
Washer 125-200
23
AP8276091
Fan 250-new
