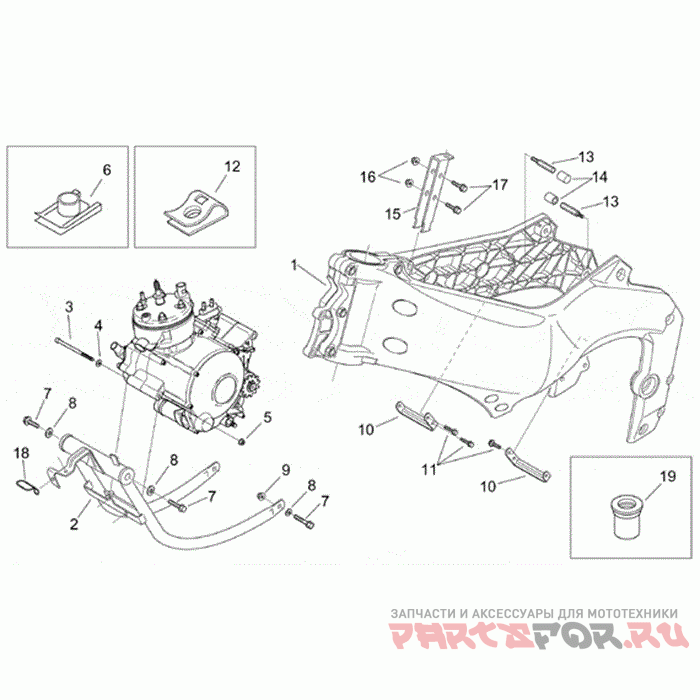

Frame - cradle

Aprilia RS 50

Aprilia
#oem кодцена
1
AP8235056
Frame, Grey
1
AP8235145
Frame, Black
1
AP8235153
Frame, Black
1
AP8235174
Рама
2
AP8235009
Cradle Phor.
3
AP8150388
Hex Socket Screw M8x100* A
4
AP8150017
Washer 8, 4x16x1, 6*
5
AP8152300
Self-locking Nut M8* F.t.
6
AP8102376
Clip M6*
7
AP8152289
Screw W/ Flange M8x35*
8
AP8150376
Шайба
9
AP8152300
Self-locking Nut M8* F.t.
10
AP8234152
Central Fairing Fixing Plate
12
AP8102375
Clip M5*
13
AP8221270
Filter Housing Support Spindle
14
AP8220526
Резинка
15
AP8234153
Болт
16
AP8152299
Self-locking Nut M6*
17
AP8152281
Screw W/ Flange M6x30*
18
AP8121217
Cable-guide
19
AP8201457
Rivet *
