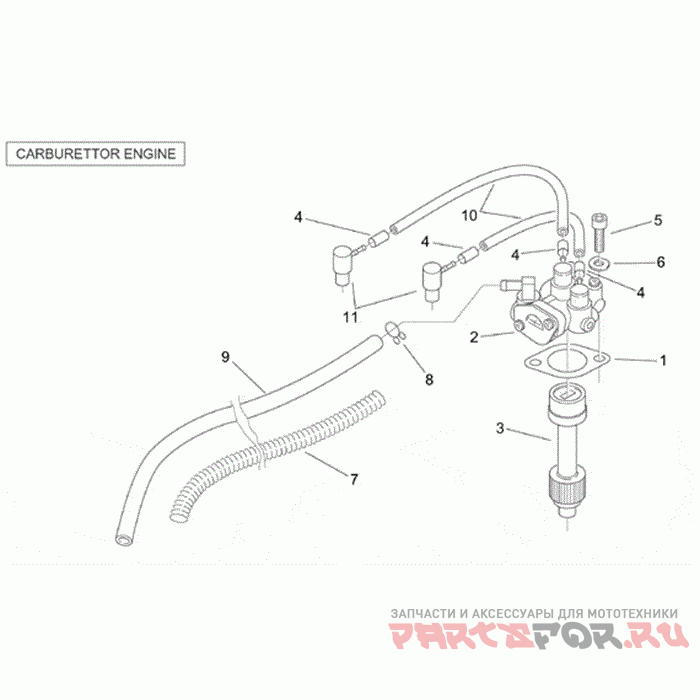

Oil pump (carurettor)
Aprilia SR 50 H2O (Ditech+Carb.)
| # | oem код | название | цена |
|---|---|---|---|
1 | AP3IVA000022 Mix Oil Pump Gasket | Mix Oil Pump Gasket | |
2 | AP2IBA000161 Oil Pump Carb | Oil Pump Carb | |
3 | AP3ICA000054 Oil Pump Shaft Assy. | Oil Pump Shaft Assy. | |
4 | AP2FBN000021 Зажим | Зажим | |
5 | AP4ADN000028 Hex Socket Screw M5x16 | Hex Socket Screw M5x16 | |
6 | AP4DFN000032 Шайба | Шайба | |
7 | AP3IAA000052 Пружина | Пружина | |
9 | AP2HAN000035 Oil Pipe | Oil Pipe | |
10 | AP2HAN000022 Oil Pipe | Oil Pipe | |
11 | AP2HAA000051 Oil Anti-return Valve | Oil Anti-return Valve | |
11 | AP2HAA000487 Brass Oil Anti-return Valve | Brass Oil Anti-return Valve |
