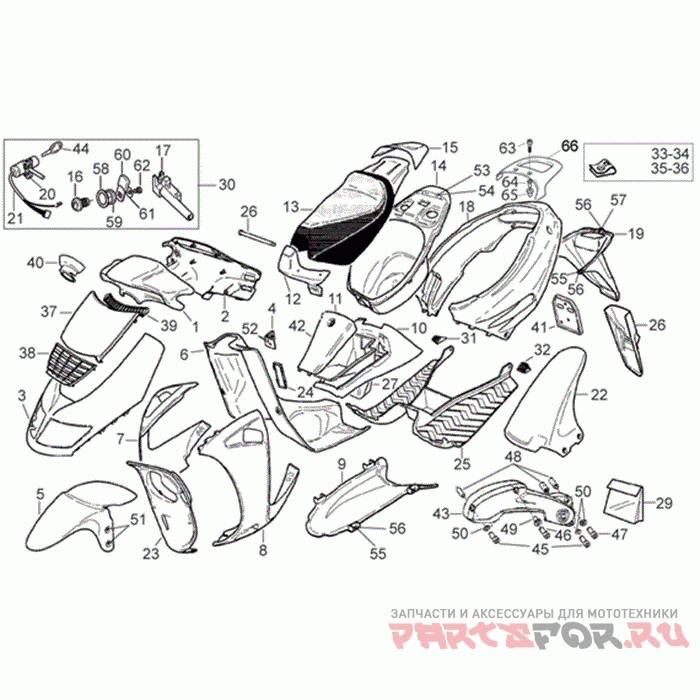

Кузов для мотоциклов Aprilia SR 50 H2O (1994)

Москва и регионы России

Кузов

Aprilia SR 50 H2O

Кузов

#

oem код

название

цена

1

Front Fairing, Black

Front Fairing, Black

S-t

1

Windshield, Grey

Windshield, Grey

T

2

Dashboard Panel, Black

Dashboard Panel, Black

T

2

Dashboard Panel, Grey

Dashboard Panel, Grey

V-w

3

Front Shield, Black

Front Shield, Black

R

3

Front Shield, Red

Front Shield, Red

R

3

Front Shield, Blue

Front Shield, Blue

T

3

Front Shield, Grey

Front Shield, Grey

T

4

Undersaddle Hook Cpl.

Undersaddle Hook Cpl.

5

Front Mudguard, Black

Front Mudguard, Black

6

Internal Shield, Black

Internal Shield, Black

7

Rh Fairing, Black/alu.

Rh Fairing, Black/alu.

T

7

Rh Fairing, Blue/grey

Rh Fairing, Blue/grey

T

7

Rh Fairing, Grey

Rh Fairing, Grey

T

8

Lh Fairing, Black/grey/sam.

Lh Fairing, Black/grey/sam.

T

8

Lh Fairing, Blue/grey

Lh Fairing, Blue/grey

T

8

Lh Fairing, Grey

Lh Fairing, Grey

T

8

Lh Fairing, Grey

Lh Fairing, Grey

S-t

9

Sump Guard, Black

Sump Guard, Black

10

Blue Tunnel

Blue Tunnel

R

10

Black Tunnel

Black Tunnel

S-t

10

Tunnel, Grey

Tunnel, Grey

T

11

Tunnel Cover, Blue

Tunnel Cover, Blue

R

11

Tunnel Cover, Grey

Tunnel Cover, Grey

T

12

Saddle Hinge, Blue

Saddle Hinge, Blue

R

12

Pillar Hinge, Grey

Pillar Hinge, Grey

T-v

12

Pillar Hinge, Black

Pillar Hinge, Black

R-s

13

Long Saddle Cpl., Black

Long Saddle Cpl., Black

R-s

13

Saddle, Black

Saddle, Black

R

14

Helmet Compartment

Helmet Compartment

16

Tank Door Lock

Tank Door Lock

17

Saddle Lock

Saddle Lock

18

Rear Fairing, Blue

Rear Fairing, Blue

R

18

Rear Fairing, Black

Rear Fairing, Black

S-t

18

Rear Fairing, Grey

Rear Fairing, Grey

T

18

Rear Fairing, Black

Rear Fairing, Black

R

19

Number Plate Holder, Grey

Number Plate Holder, Grey

20

Main Switch - Steering Lock

Main Switch - Steering Lock

21

Commutator Contact Block

Commutator Contact Block

22

Rear Mudguard

Rear Mudguard

23

Pillar, Black

Pillar, Black

24

Type Appr.data Cover, Black

Type Appr.data Cover, Black

R-s-t

25

Mat, Black

Mat, Black

R-s

25

Mat, Grey

Mat, Grey

T

26

Saddle Spin

Saddle Spin

28

Rear Splash Guard, Black

Rear Splash Guard, Black

T

28

Rear Splash Guard, Grey

Rear Splash Guard, Grey

V-w

29

Decal Set

Decal Set

S

29

Decal Set

Decal Set

R

29

Decal Set

Decal Set

R

29

Decal Set

Decal Set

S

29

Decal Set

Decal Set

T

29

Decal Set

Decal Set

T

29

Decal Set

Decal Set

T

30

Lock Hardware Kit

Lock Hardware Kit

31

Rh Terminal

Rh Terminal

R-s

32

Lh Terminal

Lh Terminal

R-s

33

Screw Clip D4, 2

Screw Clip D4, 2

34

Clip M5*

Clip M5*

35

Screw Clip D5, 5* Std

Screw Clip D5, 5* Std

36

Screw Clip D5, 5*

Screw Clip D5, 5*

37

Front Fairing, Black

Front Fairing, Black

R

37

Front Fairing, Blue

Front Fairing, Blue

R

37

Front Fairing, Red

Front Fairing, Red

S

37

Front Fairing, Grey

Front Fairing, Grey

T

38

Water Cooler Grille, Blue

Water Cooler Grille, Blue

T

39

Upper Shield Guard

Upper Shield Guard

40

Front Fair. Low. Lockup, Black

Front Fair. Low. Lockup, Black

41

Number Plate Support

Number Plate Support

42

Tunnel Decal Protection

Tunnel Decal Protection

R

42

Tunnel Decal Protection

Tunnel Decal Protection

R-s-t

42

Tunnel Decal Protection

Tunnel Decal Protection

T

43

Variator Cover, Grey

Variator Cover, Grey

W-x

44

"aprilia" Key W/out Transpo.

"aprilia" Key W/out Transpo.

45

Hex Socket Screw M6x55*

Hex Socket Screw M6x55*

46

Hex Socket Screw M6x20*

Hex Socket Screw M6x20*

47

Hex Socket Screw M6x45*

Hex Socket Screw M6x45*

48

Headlight Bush

Headlight Bush

49

Втулка

Втулка

50

Washer 6, 6x18x1, 6*

Washer 6, 6x18x1, 6*

51

Screw W/ Flange M5x16*

Screw W/ Flange M5x16*

52

Screw 4, 2x25*

Screw 4, 2x25*

53

Hex Socket Screw M6x55*

Hex Socket Screw M6x55*

54

Washer 6, 4x12, 5*

Washer 6, 4x12, 5*

55

Screw 5, 5x22*

Screw 5, 5x22*

56

Washer 15x5, 5x1, 2*

Washer 15x5, 5x1, 2*

57

Screw 5, 5x15, 9*

Screw 5, 5x15, 9*

58

Notched Washer

Notched Washer

59

Low Nut M19x1*

Low Nut M19x1*

60

Рычаг

Рычаг

61

Шайба

Шайба

62

Screw M4x6

Screw M4x6

63

Hex Socket Screw M6x50

Hex Socket Screw M6x50

64

Втулка

Втулка

65

Handle Rubber

Handle Rubber

66

Handle, M. Grey

Handle, M. Grey

V

66

Handle, Black

Handle, Black

R-s

66

Handle, Blue

Handle, Blue

R
