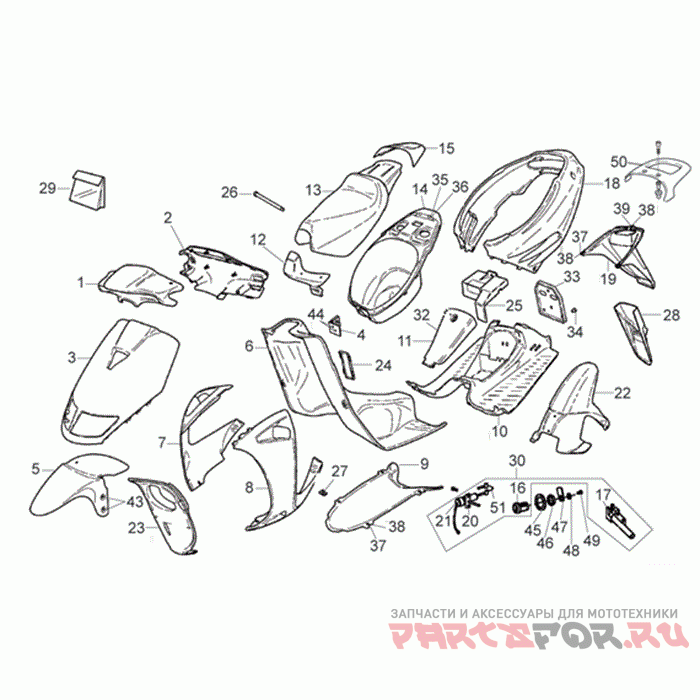

Кузов для мотоциклов Aprilia SR 50 AIR (1993)

Кузов

Aprilia SR 50 AIR

oem код

название

цена

AP8231942

Windshield, Red

P-r

AP8231943

Front Fairing, Black

P-r-s

AP8231990

Windshield, Tangerine

AP8231607

Front Fairing, Black

S-t

AP8238691

Windshield, Blue

AP8238711

Windshield, Grey

AP8230945

Dashboard Panel, Black

AP8238776

Dashboard Panel, Grey

V-w

AP8231571

Front Shield, Blue

P-r

AP8231451

Front Shield, Red

P-r

AP8231469

Front Shield, Violet

P-r

AP8231460

Front Shield, Black

P-r-s

AP8231554

Front Shield, Blue

AP8231984

Front Shield, Violet/tangerine

AP8238253

Front Shield, Red

AP8238259

Front Shield, Black

S-t

AP8238692

Front Shield, Blue

AP8201534

Undersaddle Hook Cpl.

AP8231205

Front Mudguard, Black

AP8230917

Internal Shield, Black

AP8231572

Body Cover (r)

P-r

AP8231452

Rh Side Fairing, White

P-r

Body Cover (r)

Rh Fairing, Blue

Rh Fairing, Black

Body Cover (l)

P-r

AP8231573

Body Cover (l)

P-r

AP8231453

Lh Side Fairing, White

P-r

Body Cover (l)

Body Cover (l)

Lh Fairing, Black

Уплотнение

P-r

AP8231457

Mat, Violet

P-r

AP8231475

Mat, Violet

P-r

AP8231466

Уплотнение

P-r-s

AP8238038

Уплотнение

AP8238043

Уплотнение

AP8238260

Уплотнение

S-t

AP8238754

Уплотнение

AP8238753

Уплотнение

AP8231576

Tunnel Cover

P-r

AP8231476

Tunnel Cover, Mallow Violet

P-r

AP8231458

Tunnel Cover, Mallow Violet

P-r

AP8238039

Tunnel Cover

AP8238044

Tunnel Cover, Mallow Violet

AP8238261

Tunnel Cover

S-t

AP8238751

Tunnel Cover

AP8238752

Tunnel Cover

AP8231569

Pillar Hinge

P-r

AP8231474

Pillar Hinge, Violet

P-r

AP8231456

Pillar Hinge, Violet

P-r

AP8231465

Saddle Cover, Black

P-r-s

AP8231562

Saddle Hinge, Blue

AP8231982

Saddle Hinge, Violet

AP8231605

Pillar Hinge, Black

R-s

AP8238696

Pillar Hinge, Blue

T-v

AP8238709

Pillar Hinge, Grey

T-v

AP8229149

Long Saddle Cpl., Black

R-s

AP8229139

Two-seat Saddle

P-r-s

AP8230923

Helmet Compartment

AP8231568

Крышка

P-r

AP8231455

Cover, Violet

P-r

AP8231473

Cover, Violet

P-r

AP8231464

Saddle Cover, Black

P-r

Tank Door Lock

Saddle Lock

Rear Fairing

Rear Fairing, Violet

P-r

AP8231463

Rear Fairing, Black

P-r-s

Rear Fairing

Rear Fairing

Rear Fairing, Blue

Number Plate Holder, Grey

AP8226284

Number Plate Holder, White

AP8226292

Number Plate Holder, Yellow -b-

AP8201600

Main Switch - Steering Lock

AP8212400

Commutator Contact Block

AP8226198

Rear Mudguard, Black

AP8230920

Pillar, Black

AP8230931

Type Appr.data Cover, Black

R-s-t

Top Cover

Saddle Spin

Clip M5*

Rear Splash Guard, Black

AP8226383

Rear Splash Guard, Grey

V-w

Splash Guard, White

Decal Set Gp

Decal Set

Decal Set

Decal Set

Decal Set

Decal Set

Decal Set Lb

R-s

Decal Set

Decal Set

Decal Set

Lock Hardware Kit

Tunnel Decal Protection

P-r

AP8215619

Tunnel Decal Protection

P-r

AP8215622

Tunnel Decal Protection

P-r

AP8215621

Tunnel Decal Protection

P-r-s

AP8215928

Tunnel Decal Protection

AP8215921

Tunnel Decal Protection

AP8234069

Number Plate Support

AP8221023

Втулка

AP8150045

Hex Socket Screw M6x55*

Washer 6, 4x12, 5*

Screw 5, 5x22*

Washer 15x5, 5x1, 2*

Screw 5, 5x15, 9*

Screw W/ Flange M5x16*

Screw 4, 2x25*

Notched Washer

Low Nut M19x1*

Рычаг

Шайба

Screw M4x6

Handle, Black

R-s

AP8238765

Handle, Blue

AP8238766

Handle, M. Grey

AP8231725

Rear Handle

P-r

AP8231645

Rear Handle

P-r

AP8231444

Rear Handle

P-r

AP8231912

Rear Handle

P-r-s

AP8238048

Handle, Blue

AP8238049

Rear Handle

AP8104613

"aprilia" Key W/out Transpo.
