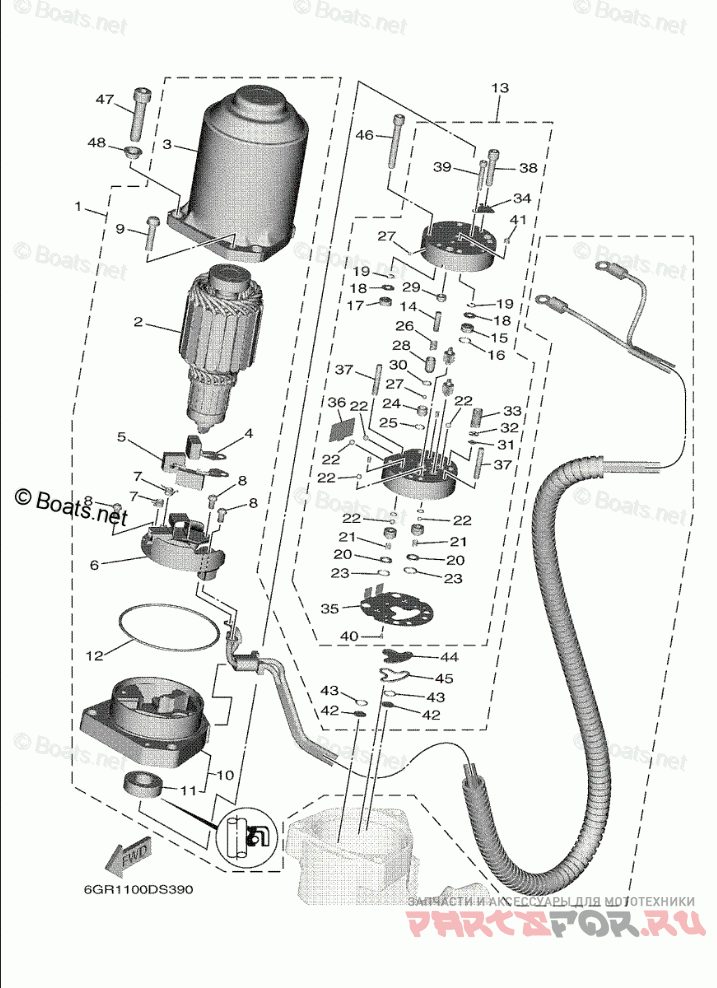

Power Trim & Tilt Assy 2

Yamaha XF425NSA7

Yamaha
#oem кодцена
1
6GR-43880-01-00
MOTOR ASSY
2
6GR-43805-00-00
ARMATURE ASSY
3
6GR-43804-00-00
STATOR ASSY
4
6GR-43892-00-00
BRUSH 2
5
6GR-82181-00-00
CIRCUIT BREAKER COMP
6
6GR-4380F-00-00
PLATE, BRUSH HOLDER
7
6GR-4386K-00-00
SPRING, BRUSH
8
97602-04310-00
SCREW, PAN HEAD WITH WASHER
9
67C-43879-10-00
SCREW, WITH WASHER
10
6GR-43881-01-00
FRAME, END
11
6GR-43882-01-00
OIL SEAL
12
6GR-43864-00-00
O-RING
13
6GR-43830-00-00
GEAR PUMP ASSY
14
93603-08072-00
PIN, DOWEL
15
6CJ-43841-00-00
PISTON, SHUTTLE
16
6H1-43883-00-00
O-RING
17
6CJ-4384M-00-00
PISTON, SHUTTLE 2
18
69A-4384F-00-00
SEAL, MAIN VALVE
19
99002-03600-00
CIRCLIP
20
6C6-4387G-00-00
WASHER
21
6C6-43853-00-00
SPRING, MAIN VALVE
22
93505-32038-00
BALL
23
69J-4389J-00-00
O-RING
24
6GR-43851-00-00
SEAT, RELIEF VALVE
25
93210-064A5-00
O-RING
26
6C5-43855-10-00
SPRING, UP RELIEF
27
93501-08001-00
BALL
28
6D8-43844-00-00
PIN, VALVE SUPPORT
29
6D8-43843-00-00
SCREW, VALVE LOCK
30
93210-04N51-00
O-RING
31
6H1-4384G-11-00
SEAL, RELIEF VALVE
32
6H1-43844-10-00
PIN, VALVE SUPPORT
33
6GR-43856-00-00
SPRING, DOWN RELIEF
34
6D8-4382L-00-00
CAP, RELIEF VALVE
35
6GR-43895-00-00
SEAT, RELIEF VALVE
36
6C5-43854-00-00
SPRING, MANUAL RELEASE
37
93604-26256-00
PIN, DOWEL
38
91318-05030-00
BOLT
39
91318-03025-00
BOLT
40
91318-03005-00
BOLT
41
69J-43831-00-00
CONNECTOR, SHAFT
42
6C6-43817-00-00
FILTER 2
43
69J-4389J-00-00
O-RING
44
6C5-43816-00-00
FILTER 1
45
6C5-4380G-00-00
PLATE
46
91318-05045-00
BOLT
47
90110-08M05-00
BOLT, HEXAGON SOCKET HEAD
48
6GR-23113-00-00
COLLAR
