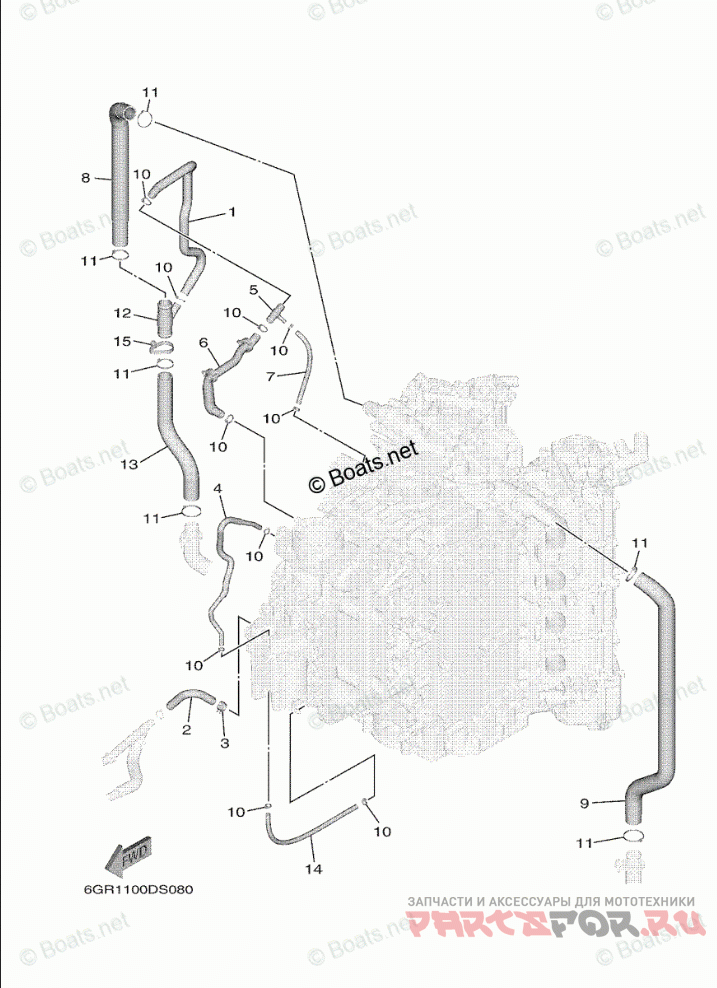

Cylinder Crankcase 4
Yamaha XF425NSA7
| # | oem код | название | цена |
|---|---|---|---|
1 | 6GR-1244J-00-00 HOSE 6 | HOSE 6 | |
2 | 6GR-42541-00-00 PIPE 1 | PIPE 1 | |
3 | 90467-150A5-00 CLIP | CLIP | |
4 | 90445-09048-00 HOSE (L400) | HOSE (L400) | |
5 | 6GR-24376-00-00 PIPE, JOINT 1 | PIPE, JOINT 1 | |
6 | 6GR-12551-00-00 HOSE 7 | HOSE 7 | |
7 | 90445-09M00-00 HOSE (L180) | HOSE (L180) | |
8 | 6GR-1243A-00-00 HOSE 1 | HOSE 1 | |
9 | 6GR-1243E-00-00 HOSE 2 | HOSE 2 | |
10 | 90465-11M10-00 CLAMP | CLAMP | |
11 | 90465-11M59-00 CLAMP | CLAMP | |
12 | 6GR-12594-00-00 JOINT, HOSE 4 | JOINT, HOSE 4 | |
13 | 6GR-1244H-00-00 HOSE 5 | HOSE 5 | |
14 | 90445-09304-00 HOSE (L310) | HOSE (L310) | |
15 | 90465-13M24-00 CLAMP | CLAMP |
