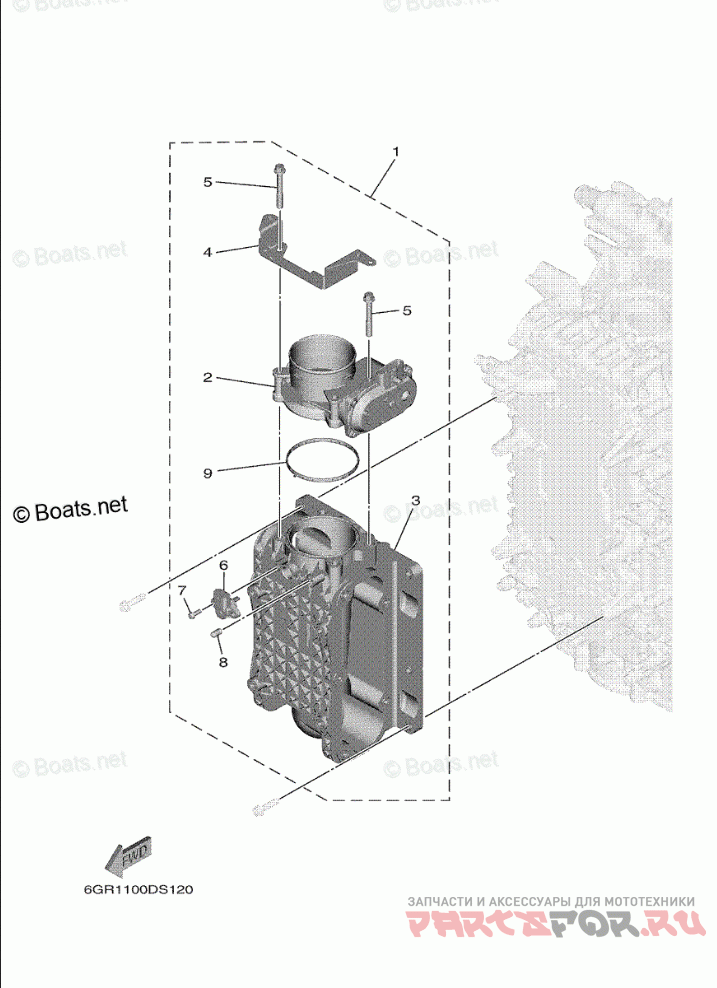

Throttle Body Assy
Yamaha XF425NSA2
| # | oem код | название | цена |
|---|---|---|---|
1 | 6GR-13750-00-00 THROTTLE BODY ASSY | THROTTLE BODY ASSY | |
2 | 6GR-13751-00-00 BODY, THROTTLE 1 | BODY, THROTTLE 1 | |
3 | 6GR-13711-00-00 MIXING BODY | MIXING BODY | |
4 | 6GR-13898-00-00 HOLDER | HOLDER | |
5 | 90105-08M36-00 BOLT, FLANGE | BOLT, FLANGE | |
6 | 68F-83688-10-00 SENSOR ASSY | SENSOR ASSY | |
7 | 68V-81147-00-00 SCREW 3 | SCREW 3 | |
8 | 63P-13643-00-00 COVER, MANIFOLD | COVER, MANIFOLD | |
9 | 6GR-13556-00-00 GASKET, MANIFOLD | GASKET, MANIFOLD |
