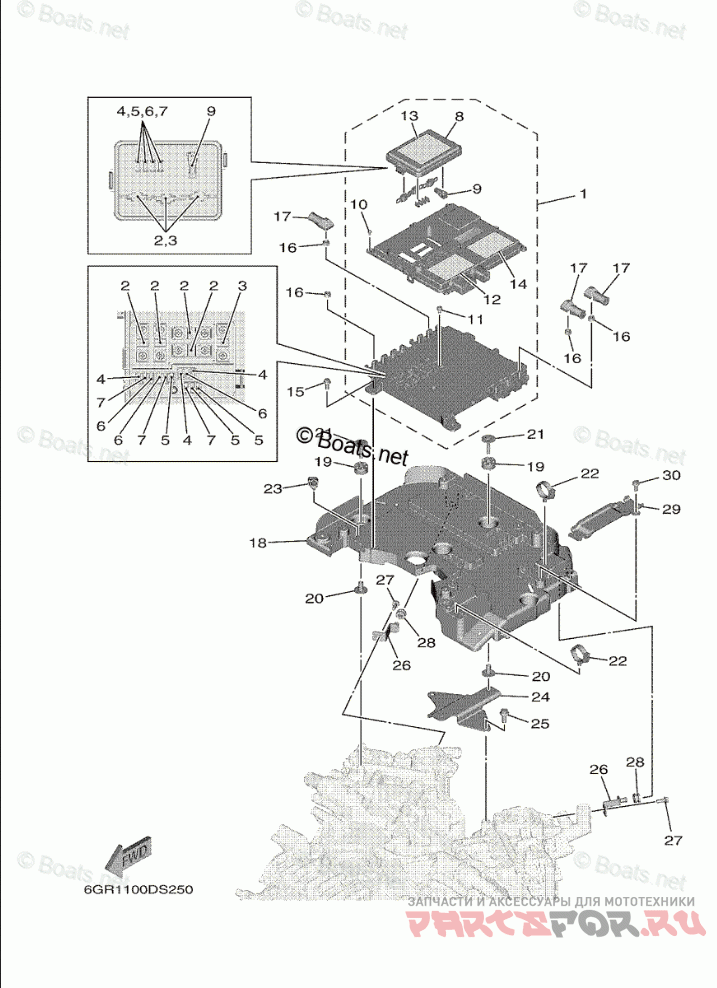

Electrical 4

Yamaha XF425NSA2

Yamaha
#oem кодцена
1
6GR-W85AA-00-00
ELECTRIC POWER MANAGEMENT UNIT
2
6GR-82151-10-00
FUSE (70A)
3
6GR-82151-00-00
FUSE (100A)
4
6CB-82151-00-00
FUSE (10A)
5
6CB-82151-10-00
FUSE (15A)
6
6CB-82151-20-00
FUSE (20A)
7
6CB-82151-30-00
FUSE (30A)
8
6GR-85544-00-00
CASE
9
6CB-2812A-00-00
PULLER, FUSE
10
6P2-82113-00-00
SCREW (M3)
11
68F-82846-00-00
SCREW, PAN HEAD (M5)
12
6GR-81919-00-00
GRAPHIC, REGULATOR
13
6GR-81919-10-00
GRAPHIC, REGULATOR
14
6GR-81919-20-00
GRAPHIC, REGULATOR
15
95D95-06016-00
BOLT, FLANGE DEEP RECESS
16
95780-06500-00
NUT, FLANGE
17
6GR-82119-00-00
COVER, LEAD WIRE
18
6GR-82589-00-00
PROTECTER, WIRE HARNESS
19
68F-85516-01-00
SPACER
20
90387-06176-00
COLLAR
21
68F-85119-00-00
BOLT
22
90464-30001-00
CLAMP
23
90464-13249-00
CLAMP
24
6GR-82171-00-00
STAY, FUSE BOX
25
95D95-08020-00
BOLT, FLANGE DEEP RECESS
26
6GR-8272U-00-00
PLATE, JOINT
27
95D95-06016-00
BOLT, FLANGE DEEP RECESS
28
90480-12314-00
GROMMET
29
6GR-85525-00-00
COVER
30
95D95-06016-00
BOLT, FLANGE DEEP RECESS
