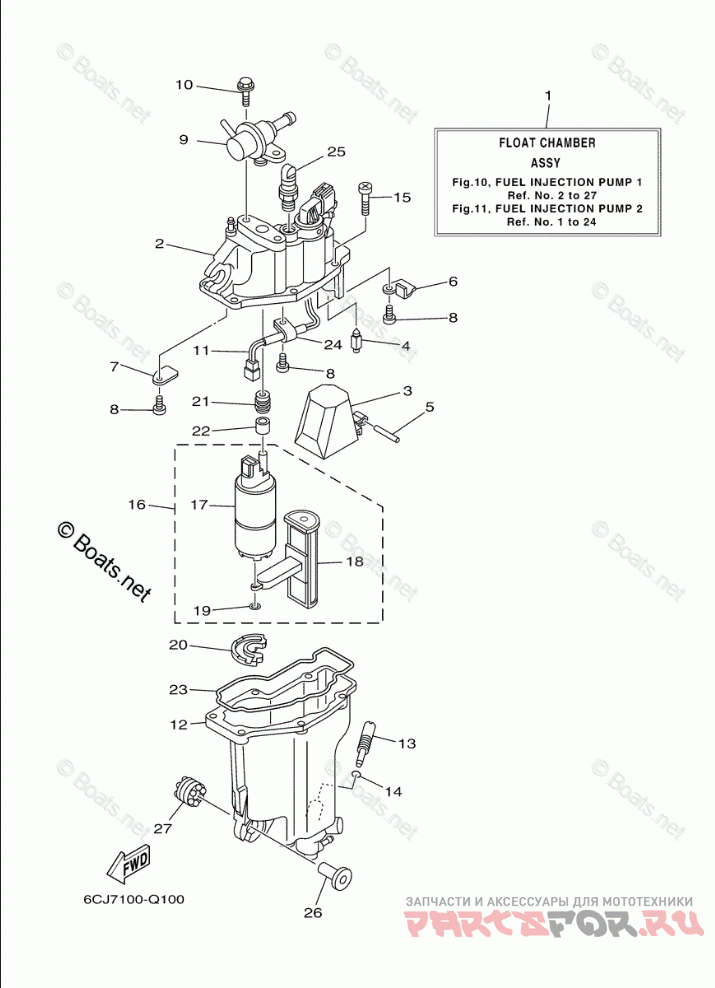

Fuel Injection Pump 1

Yamaha F70LA

Yamaha
#oem кодцена
1
6CJ-14180-12-00
FLOAT CHAMBER ASSY
2
6C5-14182-20-00
COVER, FLOAT CHAMBER
3
6C5-14985-00-00
FLOAT
4
6C5-14546-10-00
VALVE, NEEDLE
5
6C5-14386-00-00
PIN, FLOAT
6
6C5-2441R-10-00
PLATE, BAFFLE 1
7
6C5-2441T-10-00
PLATE, BAFFLE 2
8
6C5-24453-00-00
SCREW
9
6C5-13906-01-00
REGULATOR, PRESSURE
10
6C5-24592-00-00
BOLT
11
6C5-87226-00-00
WIRE HARNESS ASSY
12
6C5-14960-20-00
BODY ASSY
13
6C5-14191-00-00
PLUG, DRAIN
14
6C5-14397-00-00
O-RING
15
6C5-14567-00-00
SCREW
16
6C5-13910-10-00
FUEL PUMP ASSY
17
6C5-13907-00-00
FUEL PUMP COMP
18
6C5-13915-00-00
FILTER
19
6C5-14127-10-00
CLIP
20
6C5-13593-00-00
DAMPER
21
6C5-13781-00-00
DAMPER, PUMP
22
6C5-13716-00-00
COLLAR
23
6C5-14984-10-00
GASKET, FLOAT CHAMBER
24
6C5-21337-10-00
CLAMP, CABLE
25
6C5-14225-00-00
CAP
26
90387-06M03-00
COLLAR
27
69L-85516-00-00
SPACER
