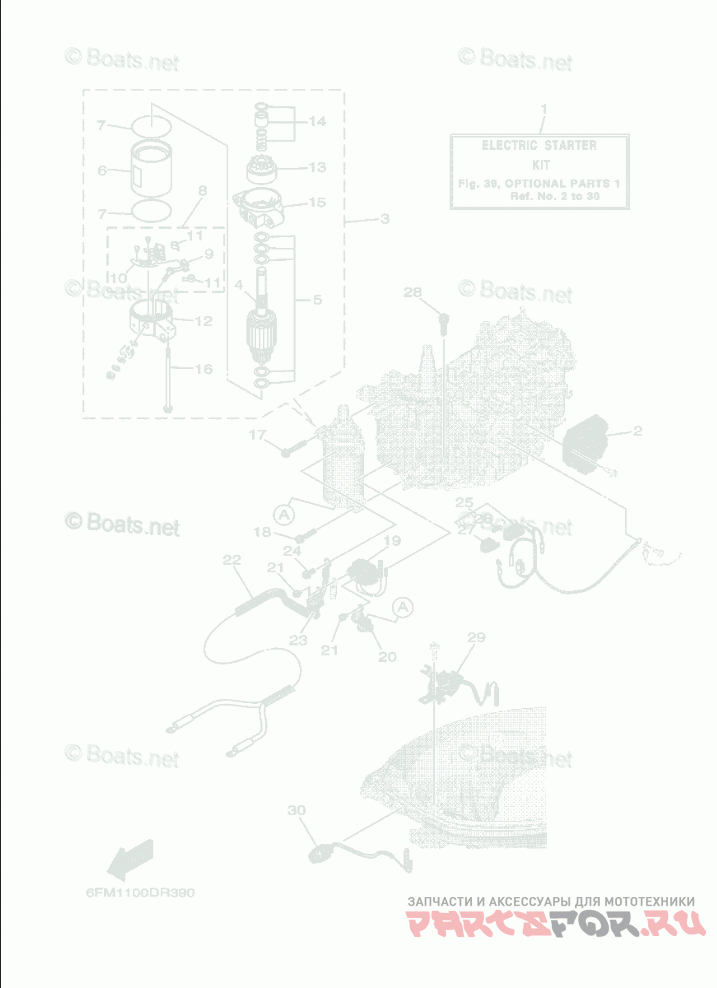

OPTIONAL PARTS 1

Yamaha F25SMHC

Yamaha
#oem кодцена
1
6FM-W8180-02-00
ELECTRIC STARTER KIT
2
6FM-81960-10-00
RECTIFIER & REGULATOR ASSY
3
6AH-81800-01-00
STARTING MOTOR ASSY
4
689-81850-12-00
ARMATURE ASSY
5
689-81809-11-00
WASHER KIT
6
689-81810-11-00
STATOR ASSY
7
689-81847-11-00
O-RING
8
689-81840-11-00
BRUSH HOLDER ASSY
9
689-81811-11-00
BRUSH 1
10
689-81812-11-00
BRUSH 2
11
689-81813-10-00
SPRING, BRUSH
12
6AH-81820-01-00
REAR BRACKET ASSY
13
689-81807-12-00
GEAR ASSY, STARTING MOTOR
14
68T-81857-00-00
PINION STOPPER SET
15
6AH-81830-00-00
FRONT BRACKET ASSY
16
689-81826-10-00
BOLT
17
97513-08545-00
BOLT, WITH WASHER
18
97513-08535-00
BOLT, WITH WASHER
19
6FM-81940-00-00
STARTER RELAY ASSY
20
6AH-82117-01-00
WIRE, LEAD
21
97E95-06610-00
BOLT, HEXAGON W/W DEEP RECESS
22
6FM-82105-00-00
BATTERY CABLE (L: 2.0M)
23
6P2-82119-00-00
COVER, LEAD WIRE
24
97E95-08516-00
BOLT, HEXAGON W/W DEEP RECESS
25
6FM-81971-00-00
WIRE, LEAD
26
67F-82151-00-00
FUSE (20A)
27
67F-8215B-10-00
CAP (YELLOW)
28
67F-2812A-00-00
PULLER, FUSE
29
6FM-82540-00-00
NEUTRAL SWITCH ASSY
30
65W-81870-00-00
STARTING SWITCH ASSY
