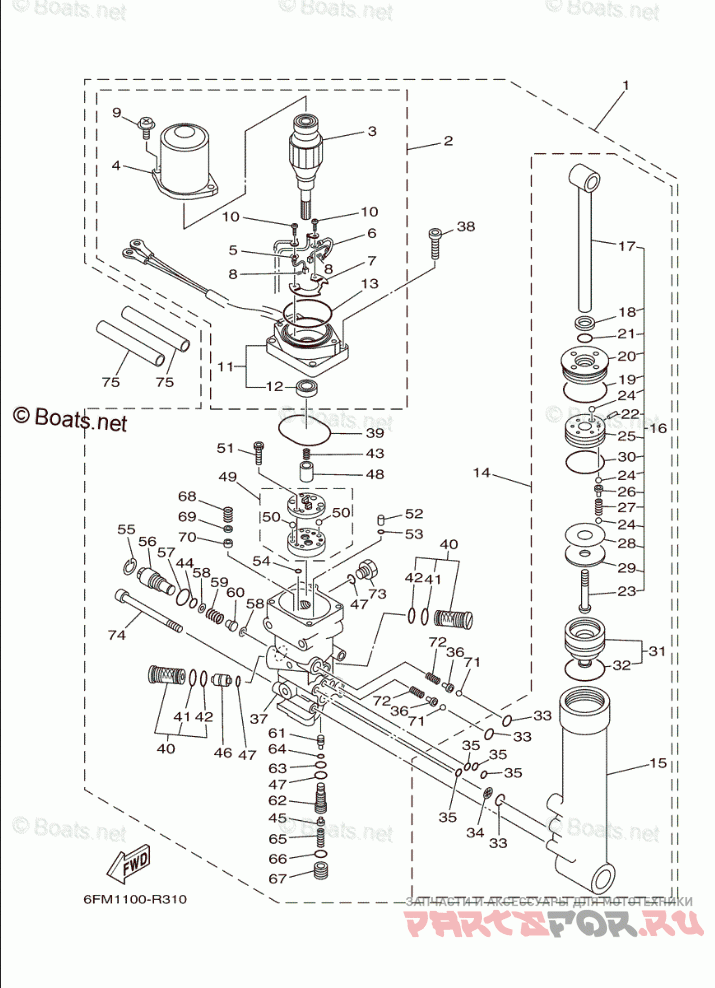

Power Trim & Tilt Assy

Yamaha F25LWTC

Yamaha
#oem кодцена
1
65W-43800-23-8D
POWER TRIM & TILT ASSY
2
65W-43880-21-00
MOTOR ASSY
3
67C-43805-11-00
ARMATURE ASSY
4
67C-43804-10-00
STATOR ASSY
5
67C-43892-10-00
BRUSH 2
6
67C-82181-10-00
CIRCUIT BREAKER COMP
7
67C-4380F-10-00
PLATE, BRUSH HOLDER
8
67C-4386K-10-00
SPRING, BRUSH
9
67C-43879-10-00
SCREW, WITH WASHER
10
97602-04316-00
SCREW, PAN HEAD WITH WASHER
11
65W-43881-22-00
FRAME, END
12
67C-43882-10-00
OIL SEAL
13
67C-43862-10-00
O-RING
14
65W-43840-01-00
POWER TILT ASSY
15
65W-4380K-00-00
CYLINDER, TILT SUB ASSY
16
65W-43810-01-00
TILT PISTON SUB ASSY
17
65W-43801-01-00
ROD
18
65W-43812-00-00
SEAL, DUST
19
65W-43865-00-00
O-RING
20
65W-43811-01-00
SCREW, CYLINDER END
21
67C-43867-00-00
O-RING
22
91609-16012-00
PIN, SPRING
23
92012-10040-00
BOLT, BUTTON HEAD
24
93505-32038-00
BALL
25
65W-4385A-01-00
PISTON, TILT
26
65W-4386A-00-00
PIN, ABSORBER VALVE
27
65W-43857-00-00
SPRING, ABSORBER VALVE
28
15A-22442-00-00
SHIM
29
90201-10038-00
WASHER, PLATE
30
6H1-43862-00-00
O-RING
31
65W-4381B-00-00
FREE PISTON SUB ASSY
32
6H1-43861-10-00
O-RING
33
93210-11368-00
O-RING
34
69J-4381C-00-00
FILTER 3
35
93210-064A5-00
O-RING
36
65W-4386A-00-00
PIN, ABSORBER VALVE
37
65W-4380L-04-00
HOUSING, TRIM & TILT SUB ASSY
38
91380-06020-00
BOLT
39
93210-50768-00
O-RING
40
67F-43802-00-00
VALVE SUB ASSY
41
6H1-43866-01-00
O-RING
42
93210-12N52-00
O-RING
43
6T4-43853-00-00
SPRING, MAIN VALVE
44
93210-10M74-00
O-RING
45
6T4-43808-00-00
SEAT VALVE COMP 1
46
62X-43841-00-00
PISTON, SHUTTLE
47
93210-09165-00
O-RING
48
65W-43831-00-00
CONNECTOR, SHAFT
49
65W-43830-00-00
GEAR PUMP ASSY
50
93505-32038-00
BALL
51
91318-04025-00
BOLT
52
65W-43817-00-00
FILTER 2
53
93210-04N50-00
O-RING
54
93210-04N51-00
O-RING
55
6H1-43875-00-00
RING, SNAP
56
6H1-43845-00-00
SCREW, MANUAL RELEASE
57
6D8-43863-00-00
O-RING
58
6H1-43847-00-00
SEAT, MANUAL VALVE
59
65W-43854-00-00
SPRING, MANUAL RELEASE
60
65W-4382A-00-00
ADAPTOR 1
61
65W-43844-00-00
PIN, VALVE SUPPORT
62
65W-43851-00-00
SEAT, RELIEF VALVE
63
93210-08006-00
O-RING
64
93210-03478-00
O-RING
65
65W-43855-00-00
SPRING, UP RELIEF
66
93210-11073-00
O-RING
67
65W-43843-00-00
SCREW, VALVE LOCK
68
6H1-43856-10-00
SPRING, DOWN RELIEF
69
6H1-43844-10-00
PIN, VALVE SUPPORT
70
6H1-4384F-10-00
SEAL, MAIN VALVE
71
93501-08001-00
BALL
72
65W-43853-00-00
SPRING, MAIN VALVE
73
6H1-43829-00-00
PLUG, RESERVOIR
74
62X-43878-01-00
BOLT, SOCKET
75
90446-15003-00
HOSE (L100)
