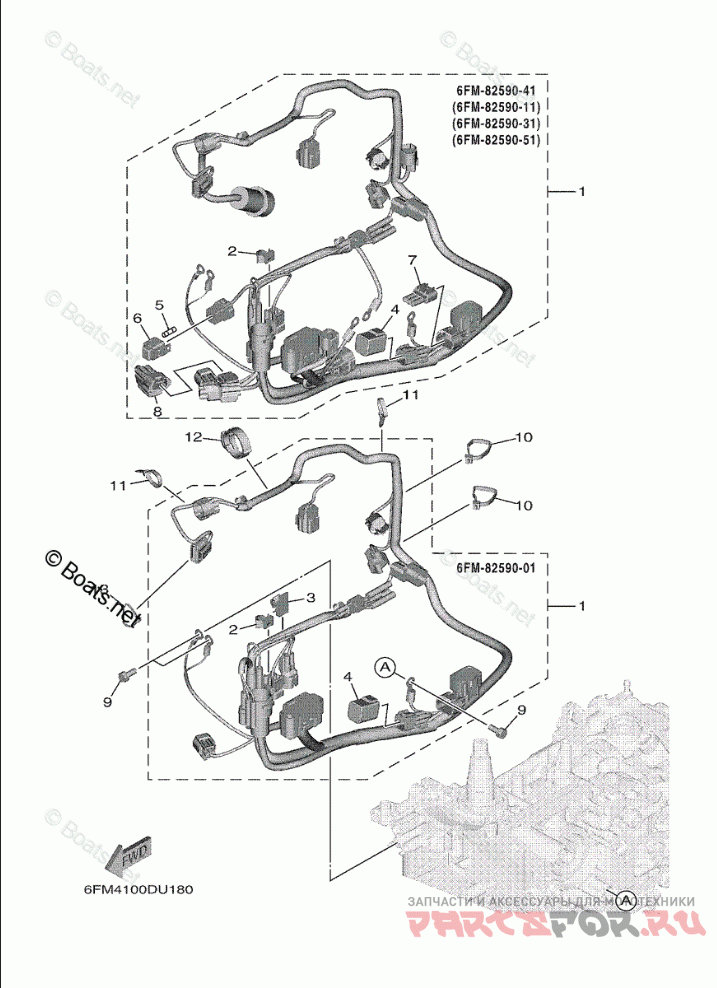

Electrical 4
Yamaha F25LWC
| # | oem код | название | цена |
|---|---|---|---|
1 | 6FM-82590-31-00 WIRE HARNESS ASSY | WIRE HARNESS ASSY | |
2 | 90464-09M47-00 CLAMP | CLAMP | |
3 | 90464-12002-00 CLAMP | CLAMP | |
4 | 6Y8-82582-11-00 CAP 1 (4PIN) | CAP 1 (4PIN) | |
5 | 67F-82151-00-00 FUSE (20A) | FUSE (20A) | |
6 | 67F-8215B-10-00 CAP (YELLOW) | CAP (YELLOW) | |
7 | 6FM-82582-00-00 CAP 1 (3P) | CAP 1 (3P) | |
9 | 97E95-06516-00 BOLT, HEXAGON W/W DEEP RECESS | BOLT, HEXAGON W/W DEEP RECESS | |
10 | 90465-11M52-00 CLAMP | CLAMP | |
11 | 90465-13M11-00 CLAMP | CLAMP | |
12 | 90464-28003-00 CLAMP | CLAMP | |
13 | 90465-11M59-00 CLAMP | CLAMP |
