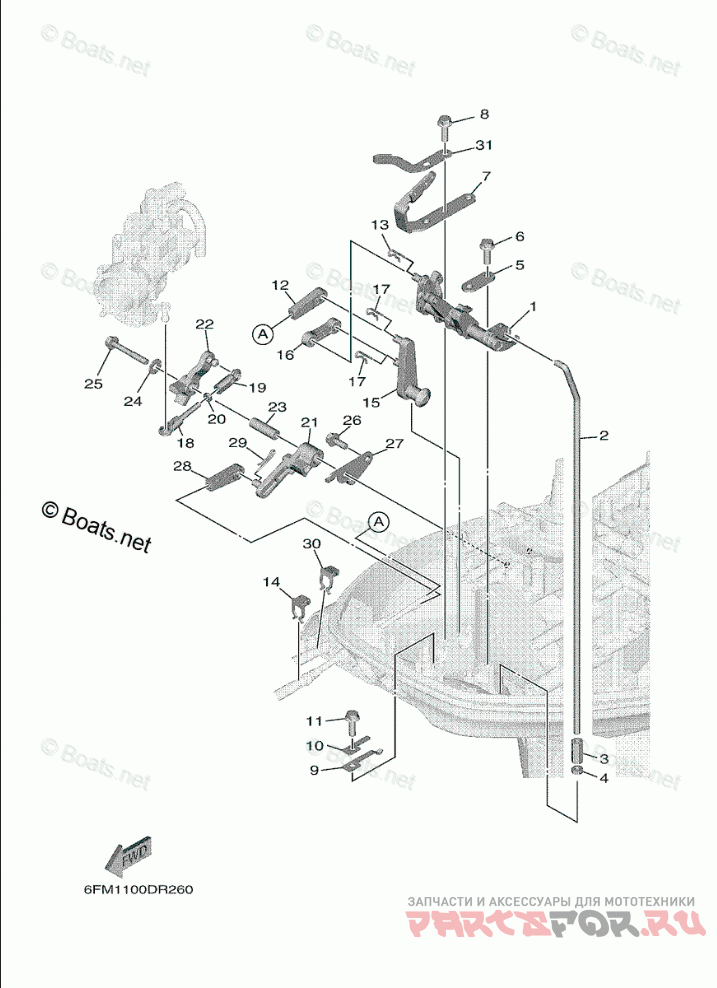

Control 1

Yamaha F20LWPB

Yamaha
#oem кодцена
1
6FM-44121-00-00
LEVER, SHIFT ROD
2
6FM-44143-10-00
ROD, SHIFT 1
3
90170-06015-00
NUT
4
95380-06700-00
NUT
5
6FM-41661-00-00
BRACKET 1
6
90109-06M86-00
BOLT
7
6FM-41662-00-00
BRACKET 2
8
90109-06M86-00
BOLT
9
66R-44116-00-00
SPRING
10
66R-44118-00-00
BRACKET
11
90109-06M86-00
BOLT
12
6FM-48344-00-00
CABLE END, REMOTE CONTROL
13
90468-18008-00
CLIP
14
63D-48538-00-00
CLAMP, CABLE 1
15
6FM-44125-00-00
LEVER, SHIFT ROD
16
6FM-44192-00-00
LINK, SHIFT ROD
17
90468-18008-00
CLIP
18
682-41237-50-00
JOINT, LINK
19
6H4-41237-00-00
JOINT, LINK
20
95380-05700-00
NUT
21
6FM-42157-00-00
LEVER, THROTTLE
22
6FM-41283-00-00
LEVER, FREE ACCEL.
23
90387-06M59-00
COLLAR
24
90201-06M62-00
WASHER, PLATE
25
95D95-06045-00
BOLT, FLANGE DEEP RECESS
26
95D95-06016-00
BOLT, FLANGE DEEP RECESS
27
6FM-14571-00-00
BRACKET, THROTTLE
28
6FM-48344-00-00
CABLE END, REMOTE CONTROL
29
90468-18008-00
CLIP
30
63D-48538-00-00
CLAMP, CABLE 1
31
6FM-82398-00-00
PLATE 3
