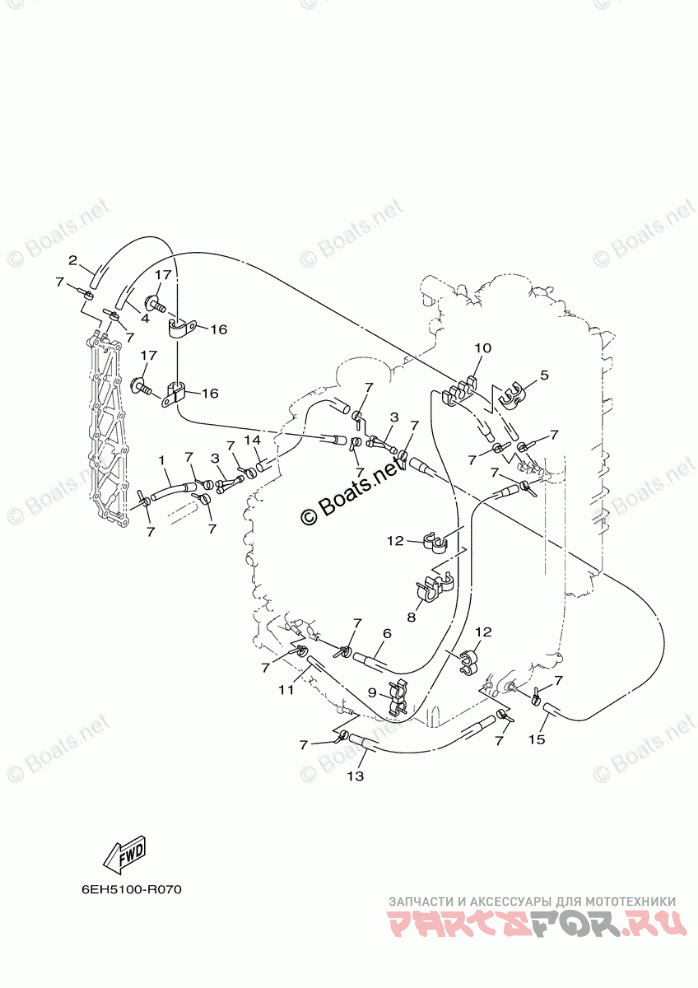

Cylinder Crankcase 4
Yamaha F175LA
| # | oem код | название | цена |
|---|---|---|---|
1 | 6DA-12576-00-00 HOSE 1 | HOSE 1 | |
2 | 6DA-12589-00-00 HOSE 6 | HOSE 6 | |
3 | 6CE-24377-00-00 PIPE, JOINT 2 | PIPE, JOINT 2 | |
4 | 90445-09008-00 HOSE (L470) | HOSE (L470) | |
5 | 90464-09M21-00 CLAMP | CLAMP | |
6 | 6DA-12578-00-00 HOSE 3 | HOSE 3 | |
7 | 90465-11M10-00 CLAMP | CLAMP | |
8 | 90464-12010-00 CLAMP | CLAMP | |
9 | 90464-09142-00 CLAMP | CLAMP | |
10 | 90464-09020-00 CLAMP | CLAMP | |
11 | 6DA-12579-00-00 HOSE 4 | HOSE 4 | |
12 | 90464-09M31-00 CLAMP | CLAMP | |
13 | 6DA-12552-00-00 HOSE 8 | HOSE 8 | |
14 | 90445-10057-00 HOSE (L170) | HOSE (L170) | |
15 | 6DA-12589-00-00 HOSE 6 | HOSE 6 | |
16 | 90465-08M83-00 CLAMP | CLAMP | |
17 | 95D95-06012-00 BOLT, FLANGE DEEP RECESS | BOLT, FLANGE DEEP RECESS |
