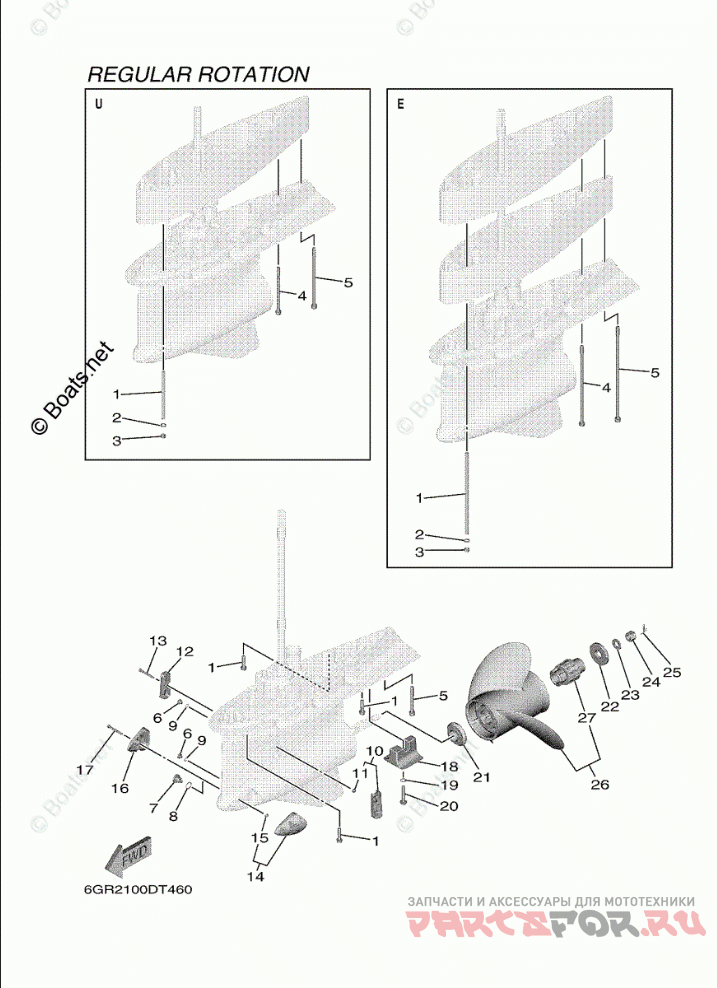

Lower Casing Drive 3

Yamaha XF425NSA

Yamaha
#oem кодцена
1
90116-10067-00
BOLT, STUD
1
90119-10024-00
BOLT, WITH WASHER
1
90116-10066-00
BOLT, STUD
2
92995-10600-00
WASHER
3
95380-10600-00
NUT
4
90119-10060-00
BOLT, WITH WASHER
4
90119-10009-00
BOLT, WITH WASHER
5
90110-10050-00
BOLT, HEXAGON SOCKET HEAD
5
90110-10049-00
BOLT, HEXAGON SOCKET HEAD
5
90110-10048-00
BOLT, HEXAGON SOCKET HEAD
6
90340-08003-00
PLUG, STRAIGHT SCREW
7
6GR-45341-00-00
PLUG, DRAIN
8
93210-19123-00
O-RING
9
93210-09165-00
O-RING
10
6GR-45214-01-00
COVER, WATER INLET 1
11
90185-06M07-00
NUT, SELF-LOCKING
12
6GR-45215-01-00
COVER, WATER INLET 2
13
90110-06425-00
BOLT, HEXAGON SOCKET HEAD
14
6GR-45224-01-00
COVER, WATER INLET 3
15
90185-06M07-00
NUT, SELF-LOCKING
16
6GR-45225-01-00
COVER, WATER INLET 4
17
90110-06425-00
BOLT, HEXAGON SOCKET HEAD
18
6AW-45373-00-00
ANODE
19
92990-10300-00
WASHER
20
90105-10257-00
BOLT, FLANGE
21
6GR-45987-00-00
SPACER 1
22
6GR-45997-00-00
SPACER 2
23
90201-19M01-00
WASHER, PLATE
24
90171-18M04-00
NUT, CASTLE
25
91490-40030-00
PIN. COTTER
26
6GR-45974-10-00
PROPELLER (3X16-5/8"X19"-Y)
26
6GR-45978-10-00
PROPELLER (3X16-1/8"X23"-Y)
26
6GR-45934-10-00
PROPELLER (3X16-1/8"X22"-Y)
26
6GR-45932-10-00
PROPELLER (3X16"X24"-Y)
26
6GR-45976-10-00
PROPELLER (3X16-3/8"X21"-Y)
26
6GR-45936-10-00
PROPELLER (3X16-3/8"X20"-Y)
26
6GR-45930-10-00
PROPELLER (3X16"X25"-Y)
26
6GR-45970-10-00
PROPELLER (3X17-1/8"X15"-Y)
26
6GR-45972-10-00
PROPELLER (3X16-7/8"X17"-Y)
26
6GR-45938-10-00
PROPELLER (3X16-5/8"X18"-Y)
27
6GR-45C81-10-00
DAMPER RUBBER, PROPELLER 1
