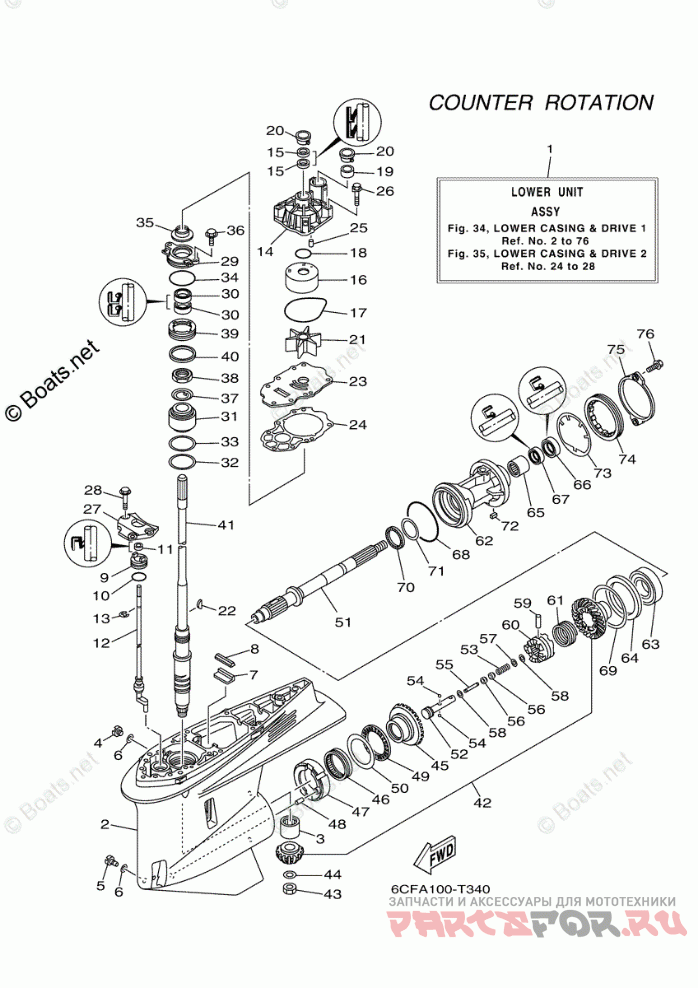

Lower Casing Drive 3

Yamaha F250NCA

Yamaha
#oem кодцена
1
6CF-45300-03-8D
LOWER UNIT ASSY
1
6CF-45300-13-8D
LOWER UNIT ASSY
2
6CE-45301-00-8D
CASING, LOWER
3
93311-83280-00
BEARING
4
90340-08002-00
PLUG, STRAIGHT SCREW
5
688-45341-10-00
PLUG, DRAIN
6
90430-08003-00
GASKET
7
663-45376-00-00
GUIDE, SEAL DAMPER
8
6CE-45375-00-00
DAMPER, SEAL
9
65N-45321-00-00
PLATE
9
6CE-45321-00-00
PLATE
10
93210-33M49-00
O-RING
11
93106-09014-00
OIL SEAL
12
6CF-44150-00-00
SHIFT CAM ASSY
12
6CF-44150-10-00
SHIFT CAM ASSY
13
99001-09600-00
CIRCLIP
13
99001-08600-00
CIRCLIP
14
6CE-44311-01-00
HOUSING, WATER PUMP
15
93104-22M07-00
OIL SEAL
16
6AW-44322-00-00
INSERT, CARTRIDGE
17
93210-94003-00
O-RING
18
93210-37160-00
O-RING
19
6AW-443665-00-00
DAMPER, WATER SEAL 1
20
6AW-44312-00-00
COVER, WATER PUMP HOUSING
21
6CE-44352-00-00
IMPELLER
22
90280-04002-00
KEY, WOODRUFF
23
6CE-44323-01-00
OUTER PLATE, CARTRIDGE
24
6CE-44315-00-00
GASKET, WATER PUMP
25
93606-12019-00
PIN, DOWEL
26
90119-08M14-00
BOLT, WITH WASHER
27
6CB-44312-00-00
COVER, WATER PUMP HOUSING
28
90119-08M32-00
BOLT, WITH WASHER
29
6CE-45335-00-9S
HOUSING, OIL SEAL
30
93101-28M16-00
OIL SEAL
31
93399-99966-00
BEARING
32
90201-62008-00
WASHER, PLATE
33
6CE-45587-00-00
SHIM (T:0.10MM)
33
6CE-45587-10-00
SHIM (T:0.12MM)
33
6CE-45587-20-00
SHIM (T:0.15MM)
33
6CE-45587-30-00
SHIM (T:0.18MM)
33
6CE-45587-40-00
SHIM (T:0.30MM)
33
6CE-45587-50-00
SHIM (T:0.40MM)
33
6CE-45587-60-00
SHIM (T:0.50MM)
34
93210-64488-00
O-RING
35
6AW-45344-00-00
COVER, OIL SEAL
36
97E95-08520-00
BOLT, HEXAGON WW DEEP RECESS
37
90214-30003-00
WASHER, CLAW
38
90170-30M18-00
NUT
39
6CE-45244-00-00
NUT
40
6CE-45539-00-00
SPACER 2
41
6CE-45501-00-00
DRIVE SHAFT COMP.
41
6CE-45501-10-00
DRIVE SHAFT COMP.
42
6CF-45550-00-00
GEAR SET
43
90170-16M19-00
NUT
44
90201-16M00-00
WASHER. PLATE
45
6CF-45560-01-00
GEAR 1 (21T)
46
93311-85894-00
BEARING
47
6CB-45824-00-00
ADAPTER
48
93608-16M16-00
PIN, DOWEL
49
93340-67011-00
BEARING
50
6CB-45567-40-00
SHIM (T:2.12MM)
50
6CB-45567-30-00
SHIM (T:2.09MM)
50
6CB-45567-20-00
SHIM (T:2.06MM)
50
6CB-45567-10-00
SHIM (T:2.03MM)
50
6CB-45567-00-00
SHIM (T:2.00MM)
50
6CB-45567-50-00
SHIM (T:2.15MM)
51
6CF-45611-01-00
SHAFT, PROPELLER
52
6CB-45634-00-00
SLIDE, SHIFT
53
90501-10M77-00
SPRING, COMPRESSION
54
93501-04011-00
BALL
55
6H1-45668-00-00
SHAFT, FREE 1
56
61A-45635-00-00
PLUNGER, SHIFT
57
90201-02M00-00
WASHER, PLATE
58
90183-02M03-00
NUT, SPRING
59
90250-08M07-00
PIN, STRAIGHT
60
6CE-45631-00-00
CLUTCH, DOG
61
6E5-45633-01-00
RING, CROSS PIN
62
6CF-45332-01-CA
HOUSING, BEARING
63
93332-00048-00
BEARING
64
6CF-45576-00-00
WASHER, THRUST 2
65
93315-43061-00
BEARING
66
93101-30002-00
OIL SEAL
67
93101-30004-00
OIL SEAL
68
93211-02001-00
O-RING
69
6CB-45577-00-00
SHIM (T:0.10MM)
69
6CB-45577-10-00
SHIM (T:0.12MM)
69
6CB-45577-20-00
SHIM (T:0.15MM)
69
6CB-45577-30-00
SHIM (T:0.18MM)
69
6CB-45577-40-00
SHIM (T:0.30MM)
69
6CB-45577-50-00
SHIM (T:0.40MM)
69
6CB-45577-60-00
SHIM (T:0.50MM)
70
93341-440U5-00
BEARING
71
6K1-45578-60-00
SHIM (T:0.50MM)
71
6K1-45578-50-00
SHIM (T:0.40MM)
71
6K1-45578-01-00
SHIM (T:0.10MM)
71
6K1-45578-10-00
SHIM (T:0.12MM)
71
6K1-45578-20-00
SHIM (T:0.15MM)
71
6K1-45578-30-00
SHIM (T:0.18MM)
71
6K1-45578-40-00
SHIM (T:0.30MM)
72
90282-05008-00
KEY, STRAIGHT
73
6CB-45383-00-00
WASHER, CLAW
74
6CB-45384-00-00
NUT
75
6CE-45361-10-00
CAP, LOWER CASING
76
90105-08M61-00
BOLT, FLANGE
