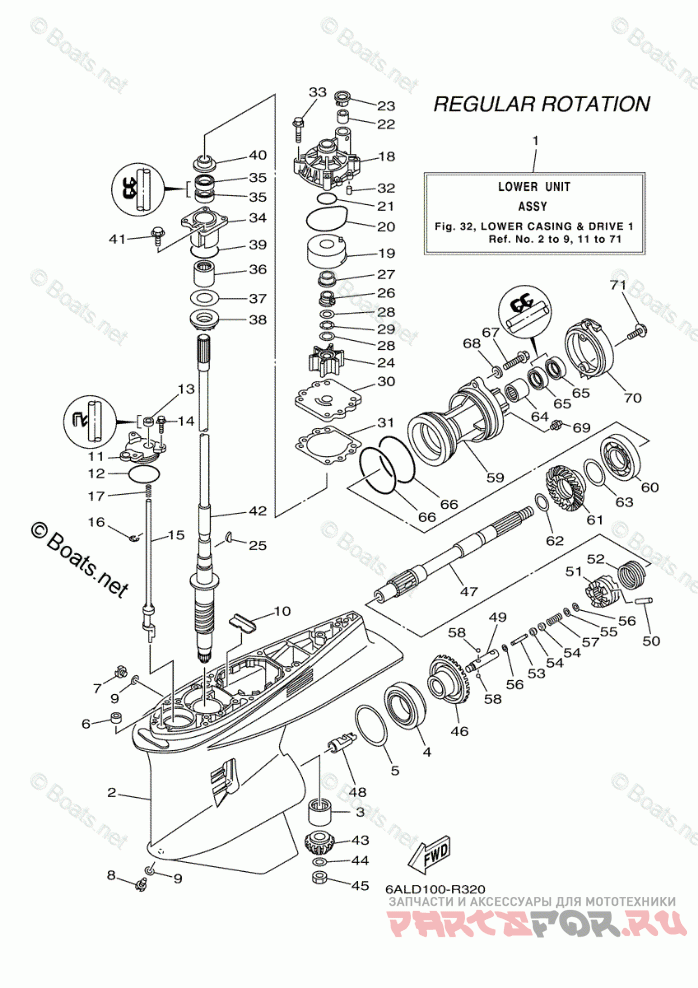

Lower Casing Drive 1

Yamaha F200XA

Yamaha
#oem кодцена
1
69J-45300-24-8D
LOWER UNIT ASSY
2
61A-45301-10-8D
CASING, LOWER
3
93311-83280-00
BEARING
4
93332-000W1-00
BEARING
5
61A-45567-60-00
SHIM (T:0.50MM)
5
61A-45567-50-00
SHIM (T:0.40MM)
5
61A-45567-00-00
SHIM (T:0.10MM)
5
61A-45567-10-00
SHIM (T:0.12MM)
5
61A-45567-20-00
SHIM (T:0.15MM)
5
61A-45567-30-00
SHIM (T:0.18MM)
5
61A-45567-40-00
SHIM (T:0.30MM)
6
663-44366-00-00
DAMPER, WATER SEAL 2
7
90340-08002-00
PLUG, STRAIGHT SCREW
8
688-45341-10-00
PLUG, DRAIN
9
90430-08003-00
GASKET
10
61A-45376-00-00
GUIDE, SEAL DAMPER
11
61A-45321-01-00
PLATE
12
93210-64488-00
O-RING
13
93106-09014-00
OIL SEAL
14
90119-06M10-00
BOLT, WITH WASHER
15
69J-44150-00-00
SHIFT CAM ASSY
16
99001-08600-00
CIRCLIP
17
90501-11M10-00
SPRING, COMPRESSION
18
61A-44311-01-00
HOUSING, WATER PUMP
19
61A-44322-02-00
INSERT, CARTRIDGE
20
93210-86M38-00
O-RING
21
93210-37160-00
0-RING
22
6E5-44365-00-00
DAMPER, WATER SEAL 1
23
6E5-44312-00-00
COVER, WATER PUMP HOUSING
24
6E5-44352-01-00
IMPELLER
25
90280-04M05-00
KEY, WOODRUFF
26
61A-45538-00-00
SPACER 1
27
61A-45527-00-00
COLLAR, DRIVE SHAFT
28
90201-22M01-00
WASHER, PLATE
29
90206-22M19-00
WASHER, WAVE
30
6G5-44323-01-00
OUTER PLATE, CARTRIDGE
31
6E5-44315-A0-00
GASKET, WATER PUMP
32
93606-12019-00
PIN, DOWEL
33
90119-08M14-00
BOLT, WITH WASHER
34
61A-45331-00-9S
HOUSING, BEARING
35
93101-28M16-00
OIL SEAL
36
93317-330U2-00
BEARING
37
61A-45587-10-00
SHIM (T:0.12MM)
37
61A-45587-00-00
SHIM (T:0.10MM)
37
61A-45587-40-00
SHIM (T:0.30MM)
37
61A-45587-20-00
SHIM (T:0.15MM)
37
61A-45587-30-00
SHIM (T:0.18MM)
37
61A-45587-50-00
SHIM (T:0.40MM)
37
61A-45587-60-00
SHIM (T:0.50MM)
38
93341-93020-00
BEARING
39
93210-55M14-00
O-RING
40
6E5-45344-00-00
COVER, OIL SEAL
41
97E95-08525-00
BOLT, HEXAGON W/W DEEP RECESS
42
69J-45501-00-00
DRIVE SHAFT COMP.
43
6P2-45551-02-00
PINION (15T)
44
90201-16M00-00
WASHER, PLATE
45
90170-16M19-00
NUT
46
6P2-45560-01-00
GEAR 1 (30T)
47
69J-45611-00-00
SHAFT, PROPELLER
48
61A-45641-02-00
SHIFTER
49
61A-45634-01-00
SLIDE, SHIFT
50
61A-45632-00-00
PIN, CROSS
51
69J-45631-00-00
CLUTCH, DOG
52
61A-45633-00-00
RING, CROSS PIN
53
6H1-45668-00-00
SHAFT, FREE 1
54
61A-45635-00-00
PLUNGER, SHIFT
55
90201-02M00-00
WASHER, PLATE
56
90183-02M03-00
NUT, SPRING
57
90501-10M77-00
SPRING, COMPRESSION
58
93501-04011-00
BALL
59
69J-45332-00-00
HOUSING, BEARING
60
93306-210U0-00
BEARING
61
6P2-45571-00-00
GEAR 2 (30T)
62
90201-31M00-00
WASHER, PLATE
63
61A-45577-20-00
SHIM (T:0.15MM)
63
61A-45577-50-00
SHIM (T:0.40MM)
63
61A-45577-40-00
SHIM (T:0.30MM)
63
61A-45577-30-00
SHIM (T:0.18MM)
63
61A-45577-00-00
SHIM (T:0.10MM)
63
61A-45577-60-00
SHIM (T:0.50MM)
63
61A-45577-10-00
SHIM (T:0.12MM)
64
93315-43061-00
BEARING
65
93101-30M17-00
OIL SEAL
66
93211-04384-00
O-RING
67
90105-08049-00
BOLT, FLANGE
68
90201-08023-00
WASHER, PLATE
69
93700-09M00-00
NIPPLE, GREASE
70
69J-45361-00-8D
CAP, LOWER CASING
71
97E95-08520-00
BOLT, HEXAGON WW DEEP RECESS
