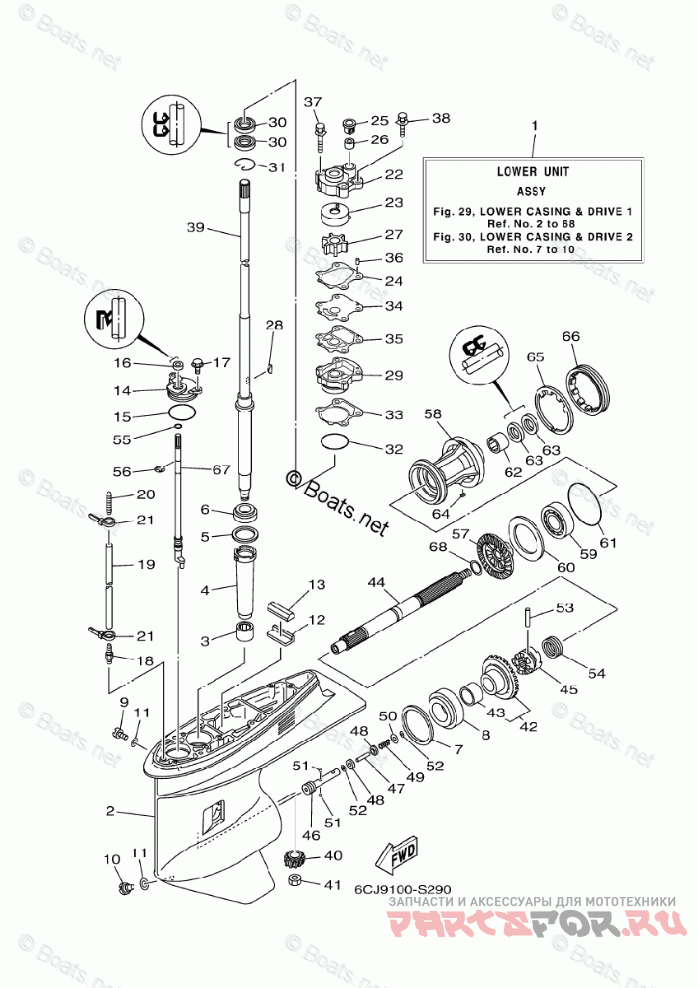

Lower Casing Drive 1

Yamaha F70LA

Yamaha
#oem кодцена
1
6CJ-45300-30-8D
LOWER UNIT ASSY *{L(21.0")}*
2
67F-45301-00-8D
CASING, LOWER
3
93315-52563-00
BEARING
4
688-45536-01-00
SLEEVE, DRIVE SHAFT
5
688-45587-10-00
SHIM (T:0.12MM) *{UR}*
5
688-45587-60-00
SHIM (T:0.50MM) *{UR}*
5
688-45587-50-00
SHIM (T:0.40MM) *{UR}*
5
688-45587-40-00
SHIM (T:0.30MM) *{UR}*
5
688-45587-30-00
SHIM (T:0.18MM) *{UR}*
5
688-45587-20-00
SHIM (T:0.15MM) *{UR}*
5
688-45587-01-00
SHIM (T:0.10MM) *{UR}*
6
93332-000U3-00
BEARING
7
688-45567-10-00
SHIM (T:0.12MM) *{UR}*
7
688-45567-01-00
SHIM (T:0.10MM) *{UR}*
7
688-45567-20-00
SHIM (T:0.15MM) *{UR}*
7
688-45567-40-00
SHIM (T:0.30MM) *{UR}*
7
688-45567-50-00
SHIM (T:0.40MM) *{UR}*
7
688-45567-60-00
SHIM (T:0.50MM) *{UR}*
7
688-45567-30-00
SHIM (T:0.18MM) *{UR}*
8
93332-00095-00
BEARING
9
90340-08002-00
PLUG, STRAIGHT SCREW
10
688-45341-10-00
PLUG, DRAIN
11
90430-08003-00
GASKET
12
663-45376-00-00
GUIDE, SEAL DAMPER
13
688-45375-00-00
DAMPER, SEAL
14
688-45321-00-00
PLATE
15
93210-49046-00
O-RING
16
93106-09014-00
OIL SEAL
17
97595-06516-00
BOLT, WITH WASHER
18
6E5-45378-00-00
NIPPLE, HOSE
19
90445-07ME8-00
HOSE (L80) *{L(21.0")}*
20
6E5-83558-10-00
END, NIPPLE
21
90465-11M10-00
CLAMP
22
6CJ-44311-00-00
HOUSING, WATER PUMP
23
63D-44322-00-00
INSERT, CARTRIDGE
24
6CJ-44315-00-00
GASKET, WATER PUMP
25
63D-44312-00-00
COVER, WATER PUMP HOUSING
26
663-44366-00-00
DAMPER, WATER SEAL 2
27
6H3-44352-00-00
IMPELLER
28
90280-03M03-00
KEY, WOODRUFF
29
6CJ-44341-00-CA
HOUSING, WATER PUMP
30
93101-23070-00
OIL SEAL
31
93450-40165-00
CIRCLIP
32
93210-46044-00
O-RING
33
6CJ-44316-00-00
GASKET, WATER PUMP
34
6CJ-44323-00-00
OUTER PLATE, CARTRIDGE
35
6CJ-44324-00-00
GASKET, CARTRIDGE
36
93604-10M03-00
PIN, DOWEL
37
90119-08M33-00
BOLT, WITH WASHER
38
90119-08M14-00
BOLT, WITH WASHER
39
64J-45501-30-00
DRIVE SHAFT COMP. *{L(21.0")}*
40
6CJ-45551-00-00
PINION (12T)
41
90170-16M01-00
NUT
42
6CJ-45560-00-00
GEAR 1 (28T)
43
93317-322V0-00
BEARING
44
67F-45611-01-00
SHAFT, PROPELLER
45
6D8-45631-00-00
CLUTCH, DOG
46
67F-45634-00-00
SLIDE, SHIFT
47
6H1-45668-00-00
SHAFT, FREE 1
48
6H1-45635-00-00
PLUNGER, SHIFT
49
90501-12M48-00
SPRING, COMPRESSION
50
90201-03313-00
WASHER, PLATE
51
93503-16003-00
BALL
52
90183-02M03-00
NUT, SPRING
53
90250-07M02-00
PIN, STRAIGHT
54
688-45633-00-00
RING, CROSS PIN
55
93210-07003-00
O-RING
56
99001-08600-00
CIRCLIP
57
68S-45571-00-00
GEAR 2 (28T)
58
67F-45331-00-CA
HOUSING, BEARING
59
93306-207U0-00
BEARING
60
67F-45576-00-00
WASHER, THRUST 2
61
93210-86M39-00
O-RING
62
93317-325U0-00
BEARING
63
93101-25M03-00
OIL SEAL
64
90282-04010-00
KEY, STRAIGHT
65
688-45383-02-00
WASHER, CLAW
66
688-45384-02-00
NUT
67
64J-44150-01-00
SHIFT CAM ASSY
68
90201-25M05-00
WASHER, PLATE
